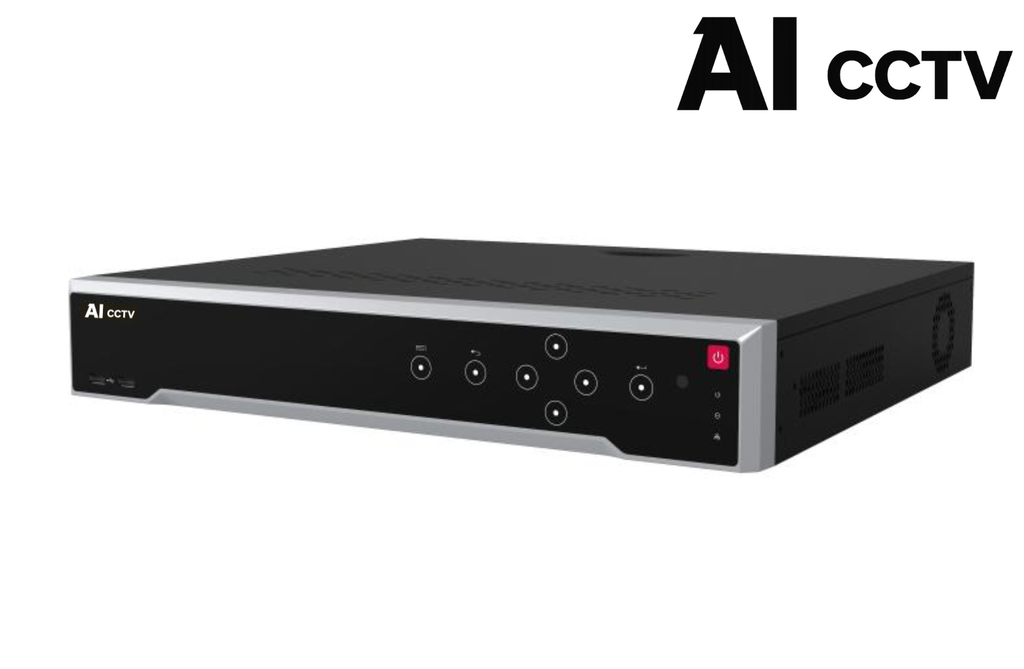

32-channel 8K enterprise NVR with 24 built-in PoE ports, designed for large-scale and high-performance surveillance systems.
Supports ultra-high resolution recording up to 32MP, high bandwidth processing, and multiple video outputs, making it ideal for enterprise, industrial, and large commercial deployments.
Datasheet
Key Features
• 32 Channel IP Camera Support
• Built-in 24 PoE Ports
• 8K HDMI Output (7680 × 4320)
• H.265+ Compression
• Up to 320 Mbps Incoming Bandwidth
• Supports up to 32MP Cameras
• Up to 8 IP Speakers Supported
• Dual HDMI + VGA Outputs
Performance
• Recording up to 32MP
• Decoding Capability:
Storage
• 4 × SATA Bays
• Up to 16TB per HDD
• eSATA Support
• Designed for long-term, high-capacity storage
Network & Access
• Gigabit LAN
• Up to 128 Remote Users
• ONVIF Compatible
PoE
• 24 × Built-in PoE Ports
• IEEE 802.3af/at
• Total PoE Budget: ≤ 210W
Audio & Alarm
• 1 × Audio In / Out
• Two-Way Audio
• Alarm I/O (16 In / 9 Out)
• Supports IP Speakers (up to 8)
Outputs
• HDMI 1: 8K Output
• HDMI 2: 4K Output
• VGA Output
• Independent Dual Display
Suitable For
• Large Commercial Sites
• Warehouses & Logistics
• Shopping Centres
• Schools & Universities
• Industrial Facilities
• Enterprise Surveillance Systems (16–32+ Cameras)
