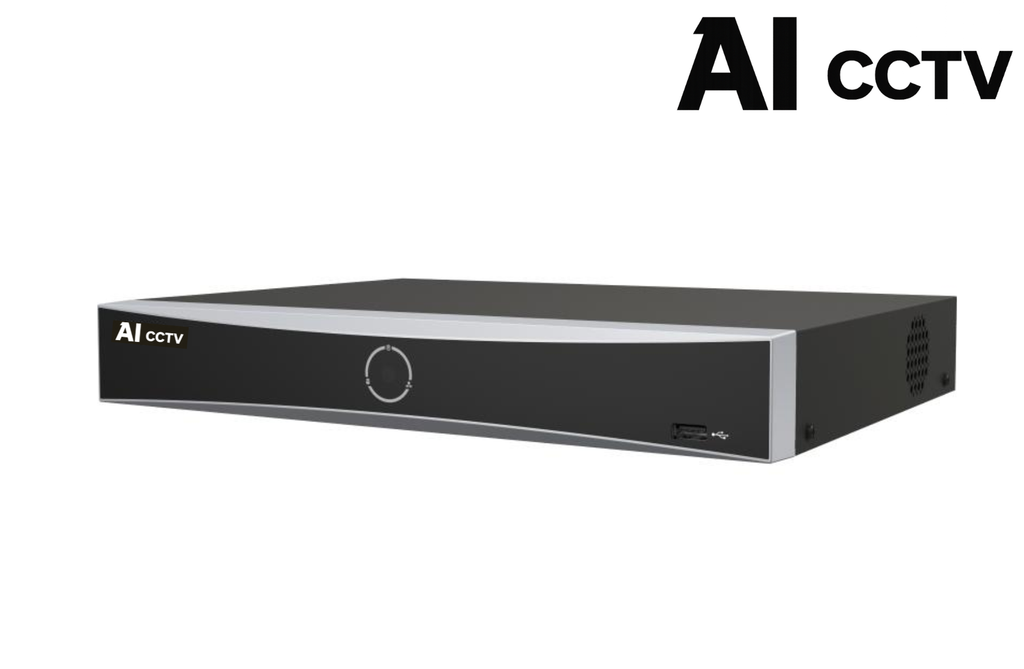

AI CCTV 4-Channel AI PoE 4K Network Video Recorder (NVR)

The AI CCTV 4-Channel AI PoE 4K NVR is a compact, high-performance network video recorder designed for intelligent video surveillance applications. Built with advanced AI analytics and integrated PoE, it delivers reliable recording, smart detection, and simplified installation for residential and small-to-medium commercial projects.

Supporting up to 12MP IP cameras, this NVR features AI-powered motion detection, perimeter protection, and facial analytics, significantly reducing false alarms while improving event accuracy. With built-in PoE ports, cameras can be connected directly for true plug-and-play deployment.

Key Features

• Supports 4 IP cameras with integrated 4-port PoE

• Up to 12MP recording resolution

• Advanced AI analytics for human & vehicle detection

• Facial recognition & face picture search (with supported cameras)

• Perimeter protection with intelligent filtering

• H.265+ compression for reduced storage usage

• HDMI & VGA simultaneous output up to 4K

• Compact 1U design, ideal for space-restricted installations

---

AI & Intelligent Analytics

AI by Device

• Motion Detection 2.0 (human & vehicle classification)

• Perimeter protection with reduced false alarms

• Supports up to 4MP AI analysis per channel

AI by Camera

• Facial recognition

• Perimeter protection

• Motion Detection 2.0

• ANPR (with compatible cameras)

• Advanced video content analysis (VCA)

Face Recognition Capabilities

• Up to 16 face libraries

• Supports 20,000 face images total

• Face capture, comparison, and picture search

• Facial analytics performance: 1-ch @ 8MP

---

Video & Recording

• IP Video Input: 4 channels

• Incoming Bandwidth: 40 Mbps

• Outgoing Bandwidth: 80 Mbps

• Recording Resolution:
  12MP / 8MP / 6MP / 5MP / 4MP / 1080p / 720p

• Playback: 4-channel synchronous playback

• Decoding (AI On):
  1-ch@12MP / 1-ch@8MP / 3-ch@4MP / 6-ch@1080p

---

Video Output

• HDMI: Up to 4K (3840×2160 @30Hz)

• VGA: Up to 1920×1080 @60Hz

• HDMI & VGA simultaneous output supported

---

Storage

• 1 × SATA interface

• Supports up to 10TB HDD (HDD not included)

---

Network & Connectivity

• 1 × Gigabit Ethernet (RJ-45)

• 4 × PoE Ethernet ports (IEEE 802.3af/at)

• Remote access support (up to 128 connections)

• ONVIF Profile S / G compatible

• Supports IPv4 & IPv6

---

Power & Environment

• Power Supply: 48V DC

• Consumption: ≤10W (without HDD & PoE)

• Operating Temperature: -10°C to 55°C

• Humidity: 10% – 90%

---

Physical Specifications

• Dimensions: 320 × 240 × 48 mm

• Weight: ≤1 kg (without HDD)

• Compact 1U metal chassis

---

Certifications

CE, FCC, RCM, RoHS, Reach, WEEE, UKCA
