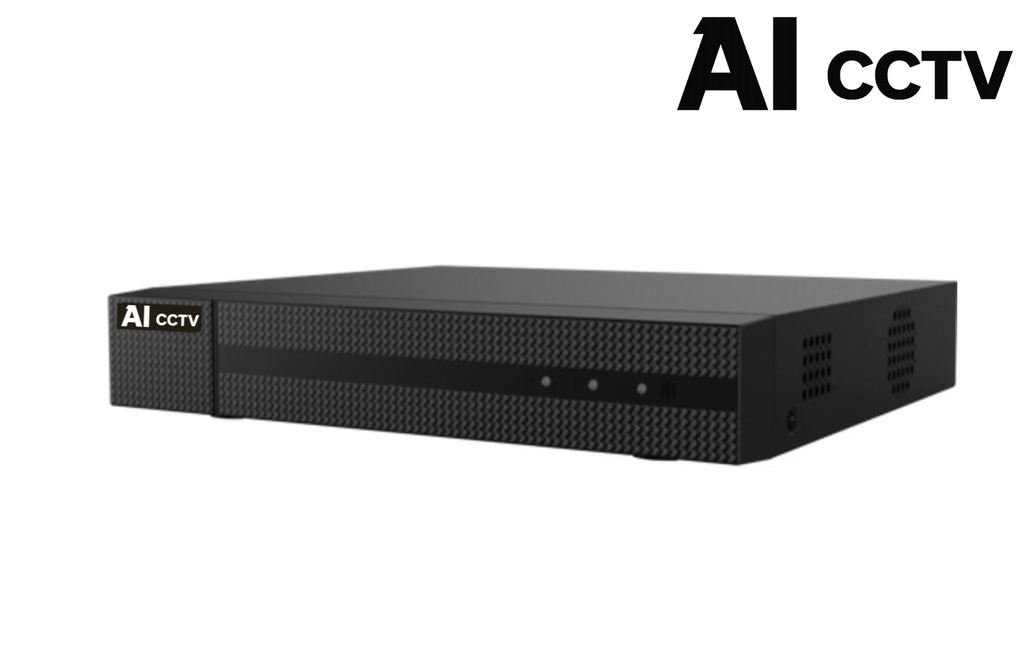

The AI CCTV 4-Channel Mini AI PoE 4K NVR is a compact and cost-effective network video recorder designed for intelligent CCTV installations where space and simplicity matter. With built-in PoE and AI-powered motion analytics, it delivers reliable 4K recording and smart human/vehicle detection in a small 1U form factor.
Ideal for homes, small offices, and retail sites, this NVR supports up to 4 IP cameras, advanced Motion Detection 2.0, and efficient H.265+ compression to maximise storage efficiency while maintaining image quality.
Datasheet
Key Features
-
Supports 4 IP cameras
-
Integrated 4-port PoE for plug-and-play installation
-
Up to 8MP (4K) recording
-
AI Motion Detection 2.0 with human & vehicle classification
-
Smart analytics on up to all 4 channels
-
H.265+ compression for reduced bandwidth & storage
-
HDMI & VGA simultaneous output
-
Compact Mini 1U chassis
AI & Intelligent Analytics
Motion Detection 2.0
-
Human and vehicle recognition
-
Reduces false alarms from animals, rain, and shadows
-
AI analysis supported on 1–4 channels (depending on resolution)
Video & Recording
-
IP Video Input: 4 channels
-
Incoming Bandwidth: 40 Mbps
-
Outgoing Bandwidth: 80 Mbps
-
Recording Resolution:
8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / VGA
-
Decoding Capability:
1-ch @ 8MP or 4-ch @ 1080p
-
Playback: 4-channel synchronous playback
Video Output
-
HDMI: Up to 4K (3840×2160 @30Hz)
-
VGA: Up to 1920×1080 @60Hz
-
HDMI & VGA simultaneous output supported
Audio
Storage
Network & Connectivity
-
1 × RJ-45 Ethernet (10/100 Mbps)
-
4 × PoE ports (IEEE 802.3af/at)
-
Supports up to 32 remote connections
-
ONVIF compatible
-
IPv4 & IPv6 supported
Power & Environment
Physical Specifications
