Description

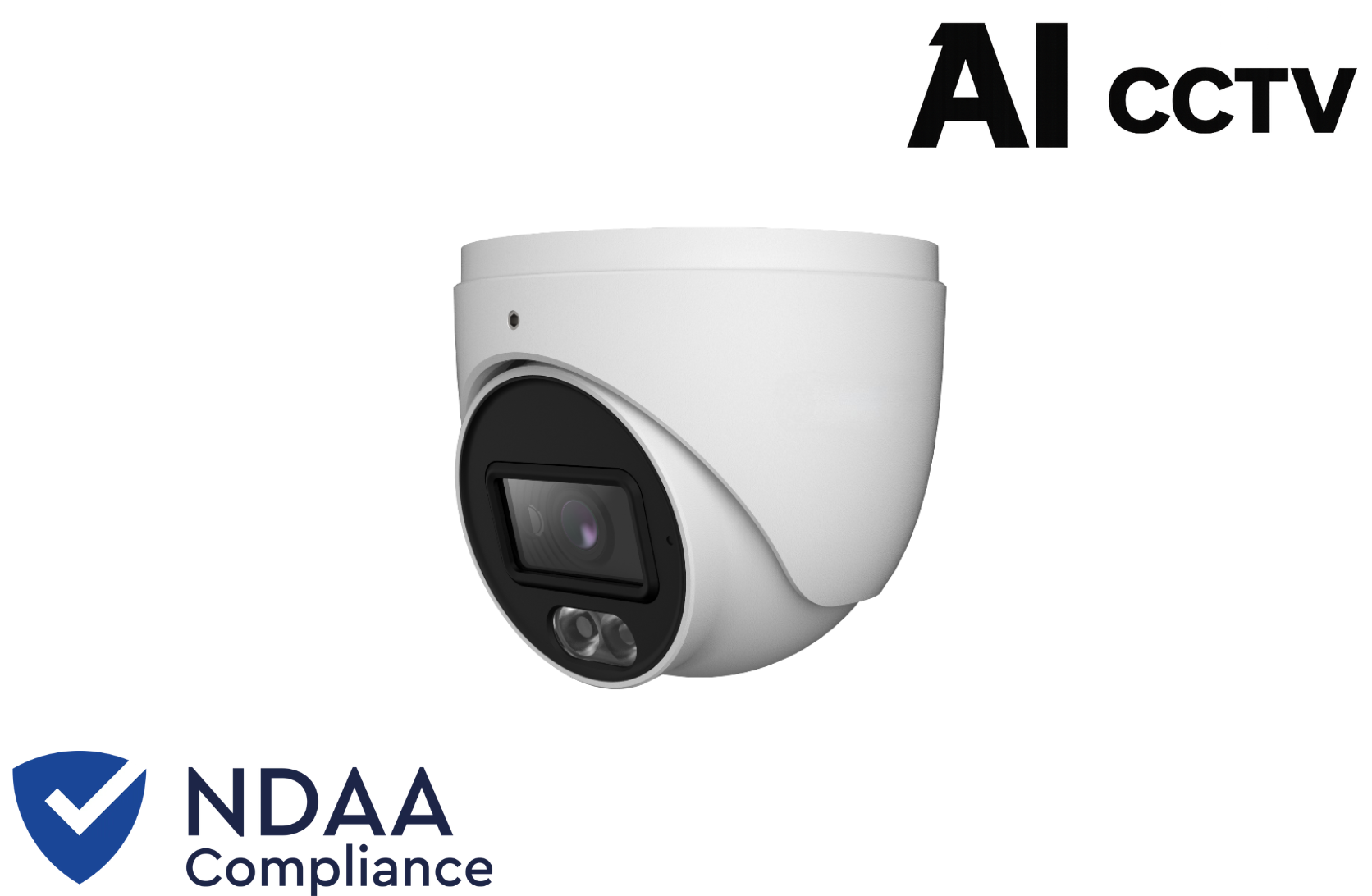

The AI-6MP64S4-C is a high-performance 6MP dual-illumination turret network camera designed for reliable day/night surveillance with smart white light and IR illumination.
Featuring 6MP resolution, 120 dB WDR, smart motion detection (SMD), and advanced AI events, this camera delivers clear colour detail when needed and strong infrared performance in low-light conditions. With an IP67-rated metal housing, it is ideal for residential, commercial, and enterprise outdoor installations.
Key features
• 6MP (3200 × 1800) high-resolution imaging
• Fixed 2.8 mm lens with wide-angle coverage
• Dual illumination: smart white light + IR
• Illumination range: 20–30 m (white light / IR)
• H.265+ / H.265 / H.264+ / H.264 / MJPEG compression
• Auto day/night switching with ICR
• 120 dB wide dynamic range
• Advanced image enhancement: 3D DNR, HLC, BLC
• Smart Motion Detection (SMD)
• AI smart events:
– Line crossing
– Region intrusion
– Abandoned / missing object detection
– Video exception detection
• Built-in microphone for audio recording
• microSD card slot up to 256 GB
• IP67 weatherproof aluminium housing
• PoE (802.3af) and 12 V DC power support
• ONVIF compatible with third-party NVRs
• Remote viewing via Web, NVR, CMS and mobile app
• Supports iOS and Android
Camera
Image sensor: 1/2.5″ CMOS
Max resolution: 3200 × 1800 (6MP)
Electronic shutter: 1/4 s ~ 1/100,000 s
Min illumination:
• 0.008 lux @ F1.6 (AGC ON)
• 0 lux with illumination ON
Day & night: ICR
Wide dynamic range: 120 dB
S/N ratio: ≥ 50 dB
Lens (fixed)
Focal length: 2.8 mm @ F1.6
Field of view:
• Horizontal: 104°
• Vertical: 55°
• Diagonal: 128°
Focus: fixed
Lens mount: M12
Video & streaming
Video compression:
• Main stream: H.265+ / H.265 / H.264+ / H.264
• Sub / third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Resolution options:
6MP, 4MP, 2K, 1080P, 720P, D1, VGA, CIF
Main stream frame rate:
• 6MP: up to 20 fps
• 4MP / 2K / 1080P: up to 30 fps
Bit rate: 64 Kbps – 8 Mbps
Bit rate control: VBR / CBR
Triple stream supported
ROI encoding supported
Audio
Built-in microphone
Audio compression: G.711A / G.711U
Smart functions
Motion detection
Smart Motion Detection (SMD)
Line crossing & region intrusion (human/vehicle classification)
Abandoned / missing object detection
Video exception detection
Smart supplement light
Corridor mode
Disarming mode
ANR (Automatic Network Replenishment)
Network
Ethernet: RJ45 (10/100 Mbps)
Network protocols:
IPv4 / IPv6, TCP / UDP, DHCP, RTSP, RTP, RTCP, RTMP, PPPoE,
DDNS, SMTP, FTP, SNMP, UPnP, HTTP, HTTPS, NAT, QoS
ONVIF: supported
API / SDK: supported
Max online users: 6
Storage
Local storage: microSD card up to 256 GB
Network storage: supported
Illumination
IR distance: 20–30 m
White light distance: 20–30 m
Power
Power supply: DC 12 V / PoE (802.3af)
Power consumption:
• DC 12 V: < 4.9 W
• PoE: < 6.4 W
Physical & environmental
Material: aluminium alloy body
Dimensions: Ø 94.6 × 82.8 mm
Weight: approx. 0.45 kg
Installation: ceiling or wall mount
Operating temperature: −30 °C to 60 °C
Humidity: < 95% (non-condensing)
Ingress protection: IP67
DORI (2.8 mm lens)
Detect: 69 m
Observe: 28 m
Recognise: 14 m
Identify: 7 m
Compliance
Certifications: CE, FCC
Environmental: RoHS, WEEE, REACH
