Description

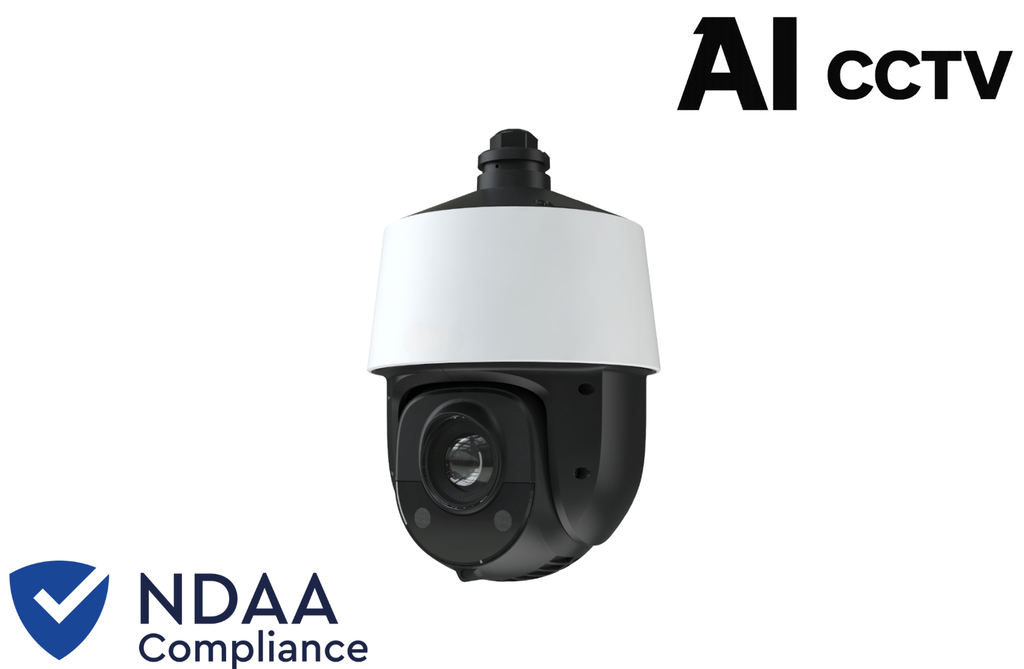

The AI-8MP483PTZ25X is a high-performance 8MP smart PTZ camera designed for long-range monitoring and intelligent tracking. Featuring a 25× optical zoom, 150 m Smart IR, and advanced AI analytics, it is ideal for warehouses, car parks, perimeters, industrial sites, and critical infrastructure.
Built with an IP66 / IK10-rated housing, integrated heater and fan, and support for PoE+, this PTZ is engineered for reliable operation in extreme environments.
Key Features
• 8MP (3840 × 2160) ultra-high resolution
• 25× optical zoom (4.8–120 mm) + 16× digital zoom
• 150 m Smart IR with dual-stack IR LEDs
• 1/2.8″ SONY progressive scan CMOS
• Starlight low-light performance
• Smart H.265 / H.264+ compression
• AI video analytics & perimeter protection
• Smart human / vehicle tracking (auto & manual)
• HDR, 3D DNR, WDR, BLC, HLC
• 360° endless pan, −10° to 90° tilt (auto-flip)
• Supports PoE+ (802.3at) or 12 V DC
• IP66, IK10, lightning & surge protection
• Operating temperature −40 °C to 60 °C
Camera Module
• Sensor: 1/2.8″ SONY progressive scan CMOS
• Max resolution: 3840 × 2160
• Min. illumination:
– Colour: 0.01 Lux @ F1.65 (AGC ON)
– B/W: 0.002 Lux @ F1.65 (AGC ON)
– 0 Lux with IR ON
• Shutter:
– 50 Hz: 1/25 s ~ 1/25,000 s
– 60 Hz: 1/30 s ~ 1/30,000 s
• Day/Night: Auto / Manual / Schedule
• S/N ratio: ≥ 52 dB
• 3D DNR: Auto / Manual
Lens & Zoom
• Focal length: 4.8–120 mm
• Optical zoom: 25×
• Zoom speed: ~3.6 s (wide → tele)
• Field of view:
– Horizontal: 57.6° → 2.4°
– Vertical: 33.4° → 1.4°
• Working distance:
– Wide: 1.0 m → ∞
– Tele: 1.5 m → ∞
• IRCUT: Removable
PTZ Functions
• Pan: 360° endless
• Pan speed: 0.1°–200°/s (preset up to 240°/s)
• Tilt: −10° to 90° (auto-flip)
• Tilt speed: 0.1°–200°/s (preset up to 240°/s)
• Presets: 360
• Cruise: 8 (up to 16 presets each)
• Trace: 4 (≥ 3 min each)
• Power-off memory supported
• 3D positioning supported
IR & Night Performance
• IR distance: up to 150 m
• Smart IR: Yes
• Dual-stack IR LED array (6 LEDs, 3 groups)
Video & Streaming
• Main stream:
– 50 Hz: up to 3840 × 2160 @25 fps
– 60 Hz: up to 3840 × 2160 @30 fps
• Sub / third streams supported
• Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Bitrate: 64 Kbps – 16 Mbps
AI & Smart Analytics
• Motion detection & video tampering
• Tripwire & bi-directional tripwire
• Region intrusion / entrance / exit
• Human & vehicle detection and tracking
• Smart tracking (auto / manual)
• Road traffic detection
• Face detection (15–17 faces per scene)
• Exception detection (network, SD, IP conflict)
Audio & Alarm
• Audio: 1 × input (MIC), 1 × output
• Audio compression: G.711 A / U
• Alarm I/O: 1 × input, 1 × output
• Alarm linkage: preset, cruise, tracking, recording, FTP, email
Network & Integration
• Ethernet: RJ45 10/100 Mbps (PoE+)
• Protocols: IPv4 / IPv6, TCP / UDP, HTTP / HTTPS, RTSP, RTP, RTCP, PPPoE, DHCP,
DDNS, SMTP, FTP, SNMP, UPnP, QoS, 802.1X
• ONVIF supported
• API / SDK supported
• Max users: 16
Storage
• microSD card slot up to 256 GB
Power & Protection
• Power: DC 12 V ±25% or PoE+ (802.3at)
• Max power: ≤ 24 W (IR + PTZ active)
• Built-in heater & fan
• Lightning, surge & transient protection
Physical & Environmental
• Housing: Aluminium alloy + fibre-reinforced polymer
• Dimensions: Ø 173 × 268 mm
• Weight: ~2.1 kg
• Operating temp: −40 °C to 60 °C
• Protection: IP66, IK10
Compliance
• CE, FCC
• RoHS, IK10, IP66
