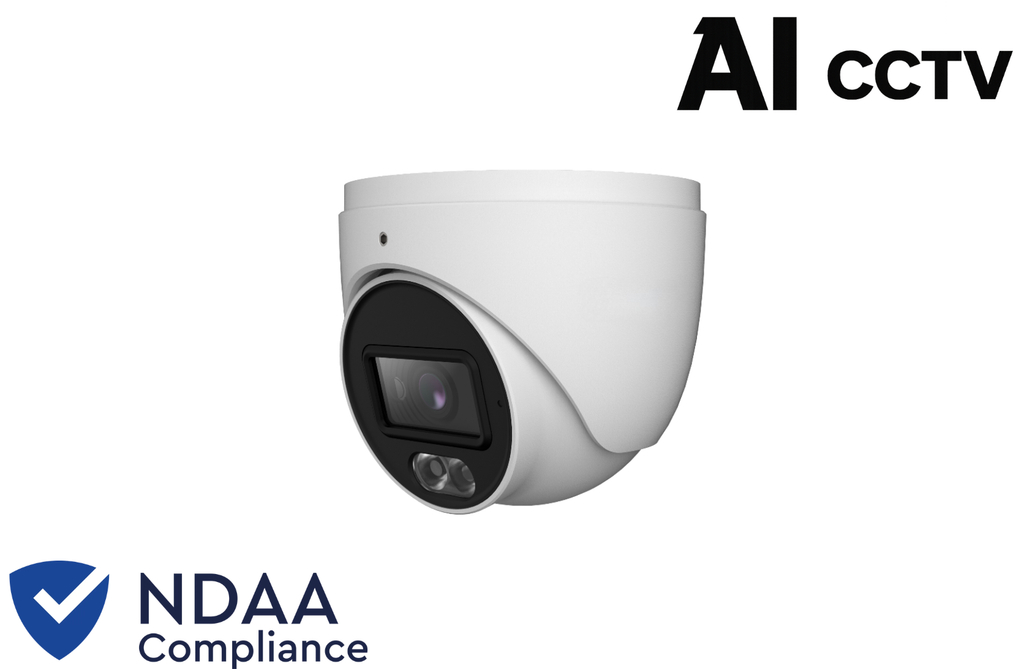

The AI-8MP84S4-C is an 8MP dual-illumination turret camera designed for clear colour imaging at night using smart white light, with IR support for complete darkness. Built in an IP67-rated aluminium housing, it suits residential, commercial, and outdoor installations.
Datasheet
Key Features
• 8MP (3840 × 2160) ultra-high resolution
• Fixed 2.8 mm wide-angle lens
• Dual illumination: smart white light + IR
• 20–30 m white light & IR distance
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Auto day/night (ICR)
• 120 dB WDR
• 3D DNR, HLC, BLC, Defog
• Smart Motion Detection (SMD)
• AI events: line crossing, region intrusion, abandoned/missing object, video exception
• Built-in microphone
• microSD slot up to 256 GB
• PoE (802.3af) or 12 V DC
• IP67 weatherproof aluminium body
Camera
• Sensor: 1/2.8″ CMOS
• Max resolution: 3840 × 2160
• Shutter: 1/3s ~ 1/100,000s
• Min. illumination: 0.02 Lux @ F1.6 (0 Lux with light on)
• Day/Night: ICR
• S/N ratio: ≥ 50 dB
Lens
• Focal length: 2.8 mm @ F1.6
• Field of view: H 106° / V 57° / D 124°
• Focus: Fixed
• Mount: M12
Video & Streaming
• Main stream: H.265+ / H.265 / H.264+ / H.264
• Sub/third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Resolutions: 8MP, 6MP, 4MP, 2K, 1080P, 720P, D1, VGA, CIF
• Frame rate:
– 8MP up to 20 fps
– 6MP/4MP/2K/1080P up to 30 fps
• Bitrate: 64 Kbps – 12 Mbps
• VBR / CBR
• Triple stream
• ROI supported (up to 8 regions)
Audio
• Built-in microphone
• G.711A / G.711U
Smart Functions
• Motion detection
• Smart Motion Detection (SMD)
• Line crossing & region intrusion (human/vehicle classification)
• Abandoned / missing object detection
• Video exception detection
• Smart supplement light
• Corridor mode
• ANR
• Disarming mode
Network
• RJ45 (10/100 Mbps)
• IPv4 / IPv6, TCP / UDP, DHCP, RTSP, RTP, RTCP, RTMP, PPPoE
• DDNS, SMTP, FTP, SNMP, UPnP, HTTP, HTTPS, NAT, QoS
• ONVIF supported
• API / SDK supported
• Up to 10 simultaneous users
Storage
• microSD card up to 256 GB
• Network storage supported
Illumination
• IR: 20–30 m
• White light: 20–30 m
Power
• DC 12 V or PoE (802.3af)
• Power consumption:
– DC: < 6.7 W
– PoE: < 8.3 W
Physical & Environmental
• Material: Aluminium alloy
• Dimensions: Ø 94.6 × 82.8 mm
• Weight: ~0.45 kg
• Mounting: Wall or ceiling
• Operating temp: −30 °C to 60 °C
• Humidity: < 95%
• Protection: IP67
DORI (2.8 mm)
• Detect: 79 m
• Observe: 32 m
• Recognise: 16 m
• Identify: 8 m
Compliance
• CE, FCC
• RoHS, WEEE, REACH
