Description

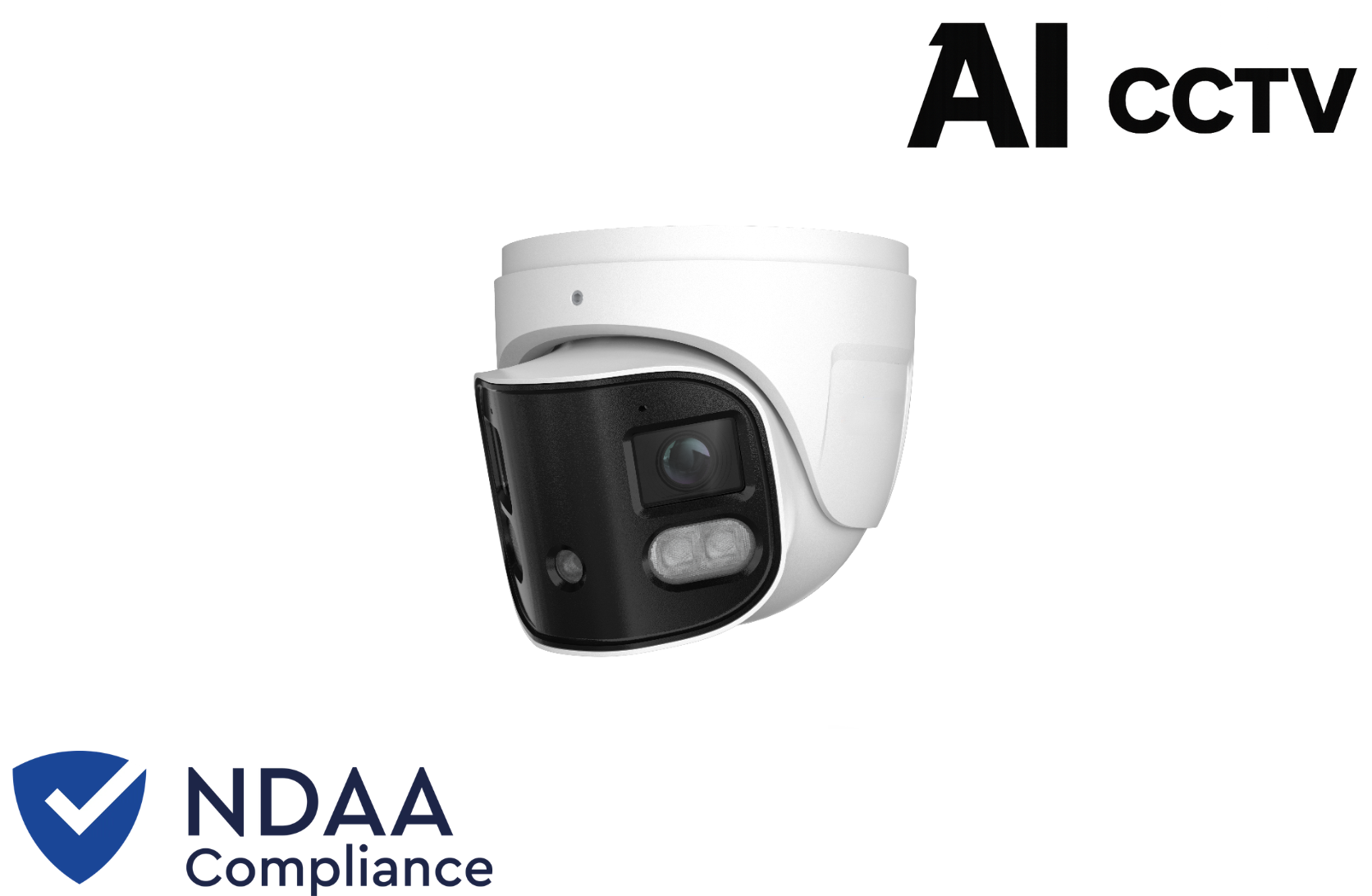

The AI-8MP85E3B-DP is an 8MP dual-lens splicing turret camera designed to deliver a seamless 180° ultra-wide view from a single device. Using two synchronized sensors, it creates a wide panoramic image ideal for perimeter protection, building facades, car parks, and wide open areas.
This model also features active deterrence with red & blue warning lights, a built-in speaker for custom voice alerts, and advanced AI analytics, all housed in an IP66-rated aluminium enclosure.
Key Features
• Dual-lens splicing camera (180° view)
• Max resolution 8MP (4640 × 1760)
• Fixed 2.8 mm lenses
• Smart dual illumination: IR + white light
• IR range up to 30 m, white light up to 20 m
• Red & blue flashing warning lights
• Built-in speaker with user-defined voice alerts
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Auto day/night switching (ICR)
• 3D DNR, WDR, HLC, BLC, Defog
• Smart Motion Detection (SMD)
• Multiple AI smart events enabled simultaneously
• Built-in microSD slot up to 256 GB
• PoE (802.3af) or 12 V DC
• IP66 weatherproof aluminium body
Camera
• Image sensor: 1/2.7″ progressive scan CMOS × 2
• Max resolution: 4640 × 1760
• Shutter: 1/3s ~ 1/100,000s
• Min. illumination:
– 0.0032 Lux @ F1.6 (AGC ON)
– 0 Lux with LED ON
• Day/Night: Auto
• Digital WDR
• S/N ratio: ≥ 50 dB
• 3D DNR
Lens & Field of View
• Focal length: 2.8 mm @ F1.6 (dual lenses)
• Horizontal FoV: 180°
• Vertical FoV: 66°
• Lens mount: M12
• Focus: Fixed
Video & Streaming
• Main stream: H.265+ / H.265 / H.264+ / H.264
• Sub / third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Resolutions:
8MP, 6MP, 4MP, 2MP, 2048×768, 1600×608, 1200×448, 960×368, 640×240
• Frame rate:
– Main stream: up to 30 fps
– Sub/third stream: up to 30 fps
• Bitrate: 64 Kbps – 10 Mbps
• VBR / CBR
• ROI supported
Audio & Alarm
• Built-in speaker
• Dual built-in microphones
• 1× audio input, 1× audio output
• Audio compression: G.711A / G.711U
• Alarm I/O: 1 input, 1 output
AI & Analytics
• Line crossing, region intrusion / entrance / exit (human & vehicle)
• Loitering detection
• Illegal parking detection
• Abandoned / missing object detection
• Face detection & face capture
• Target counting (line / area)
• Heat map
• Video metadata (human, motor vehicle, non-motor vehicle attributes)
• Scene change, blur & abnormal colour detection
Network
• RJ45 10/100 Mbps Ethernet
• IPv4 / IPv6, TCP / UDP, DHCP, RTSP, RTP, RTCP, RTMP, PPPoE
• DDNS, SMTP, FTP, SNMP, UPnP, HTTP, HTTPS, NAT, QoS
• ONVIF supported
• API / SDK supported
• Up to 10 simultaneous users
Storage
• microSD card up to 256 GB
• Network storage supported
Illumination
• IR range: up to 30 m
• White light range: up to 20 m
Power
• DC 12 V or PoE (802.3af)
• Power consumption:
– PoE: max. 10.2 W
– DC: max. 9 W
Physical & Environmental
• Material: Aluminium alloy
• Dimensions: Ø 111.5 × 102.2 mm
• Weight: ~ 0.72 kg
• Mounting: Wall or ceiling
• Operating temperature: −30 °C to 60 °C
• Humidity: < 95%
• Protection: IP66
DORI (2.8 mm)
• Detect: 60 m
• Observe: 24 m
• Recognise: 12 m
• Identify: 6 m
Compliance
• CE, FCC
• RoHS, WEEE, REACH
