Description

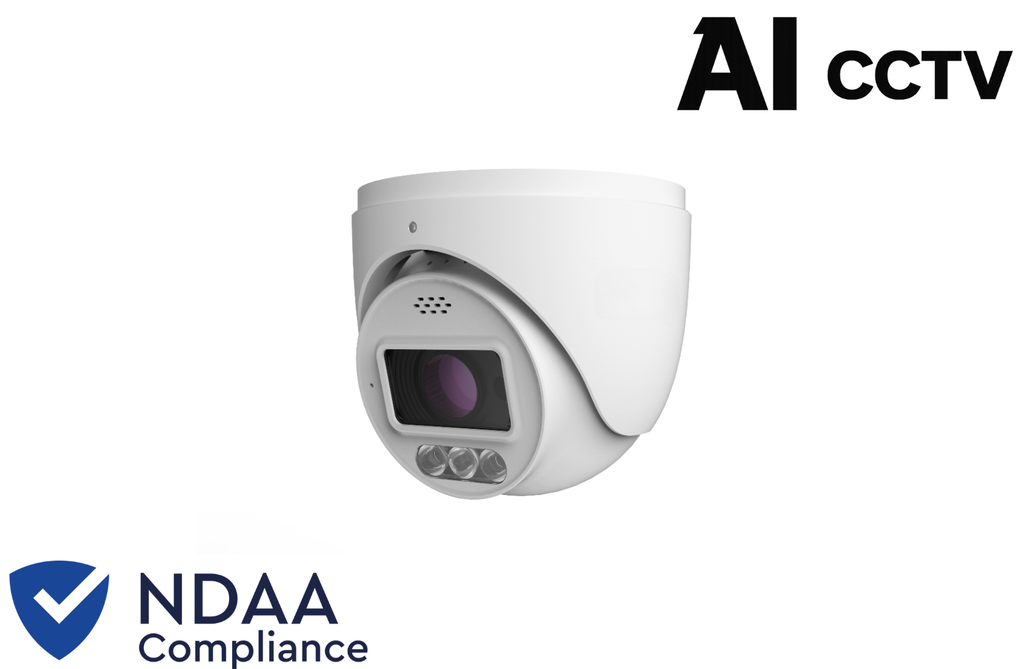

The AI-8MP85S4-PA is an 8MP dual-illumination active deterrence turret camera designed for high-resolution surveillance with built-in red & blue warning lights and a speaker. It provides clear colour imaging at night using smart white light, IR illumination for total darkness, and audible/visual deterrence to actively discourage intruders.
Built with an IP66-rated metal housing, this model is ideal for residential, commercial, and perimeter security applications.
Key Features
• 8MP (3840 × 2160) ultra-high resolution
• Fixed 2.8 mm wide-angle lens only
• Dual illumination: smart white light + IR
• 30–40 m white light & IR distance
• Red & blue flashing warning lights
• Built-in speaker with user-defined voice alerts
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Auto day/night switching
• 120 dB WDR
• 3D DNR, HLC, BLC
• Smart Motion Detection (SMD)
• AI events: line crossing, region intrusion, abandoned/missing object, video exception
• Built-in microphone & speaker (two-way audio)
• microSD card slot up to 256 GB
• PoE (802.3af) or 12 V DC
• IP66 weatherproof aluminium body
Camera
• Sensor: 1/2.8″ CMOS
• Max resolution: 3840 × 2160
• Shutter: 1/3s ~ 1/100,000s
• Min. illumination:
– Colour: 0.01 Lux @ F1.6
– B&W: 0 Lux with illumination ON
• Day/Night modes: Auto / Day / Night / Schedule
• S/N ratio: ≥ 50 dB
Lens
• Focal length: 2.8 mm @ F1.6
• Field of view:
– Horizontal: 103°
– Vertical: 55°
– Diagonal: 121°
• Focus: Fixed
• Mount: M12
Video & Streaming
• Main stream: H.265+ / H.265 / H.264+ / H.264
• Sub / third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Resolutions: 8MP, 6MP, 4MP, 2K, 1080P, 720P, D1, VGA, CIF
• Frame rate:
– 8MP up to 20 fps
– 6MP / 4MP / 2K / 1080P up to 30 fps
• Bitrate: 64 Kbps – 12 Mbps
• VBR / CBR
• Triple stream supported
• ROI supported
Audio
• Built-in microphone
• Built-in speaker
• Audio compression: G.711A / G.711U
Smart & Deterrence Functions
• Motion detection
• Smart Motion Detection (SMD)
• Line crossing & region intrusion (human / vehicle classification)
• Abandoned / missing object detection
• Video exception detection
• Audio alarm & flashing light alarm
• Smart supplement light
• Corridor mode
• ANR
• Disarming mode
Network
• RJ45 (10/100 Mbps)
• IPv4 / IPv6, TCP / UDP, DHCP, RTSP, RTP, RTCP, RTMP, PPPoE
• DDNS, SMTP, FTP, SNMP, UPnP, HTTP, HTTPS, P2P, QoS
• ONVIF supported
• Up to 10 simultaneous users
Storage
• microSD card up to 256 GB
• Network storage supported
Illumination
• IR range: 30–40 m
• White light range: 30–40 m
Power
• DC 12 V or PoE (802.3af)
• Power consumption:
– DC: < 10.4 W
– PoE: < 11.5 W
Physical & Environmental
• Material: Aluminium alloy
• Dimensions: Ø 111.5 × 99.6 mm
• Weight: ~ 0.6 kg
• Mounting: Wall or ceiling
• Operating temperature: −30 °C to 60 °C
• Humidity: < 95%
• Protection: IP66
DORI (2.8 mm)
• Detect: 81 m
• Observe: 33 m
• Recognise: 16 m
• Identify: 8 m
Compliance
• CE, FCC
• RoHS, WEEE, REACH
