Description

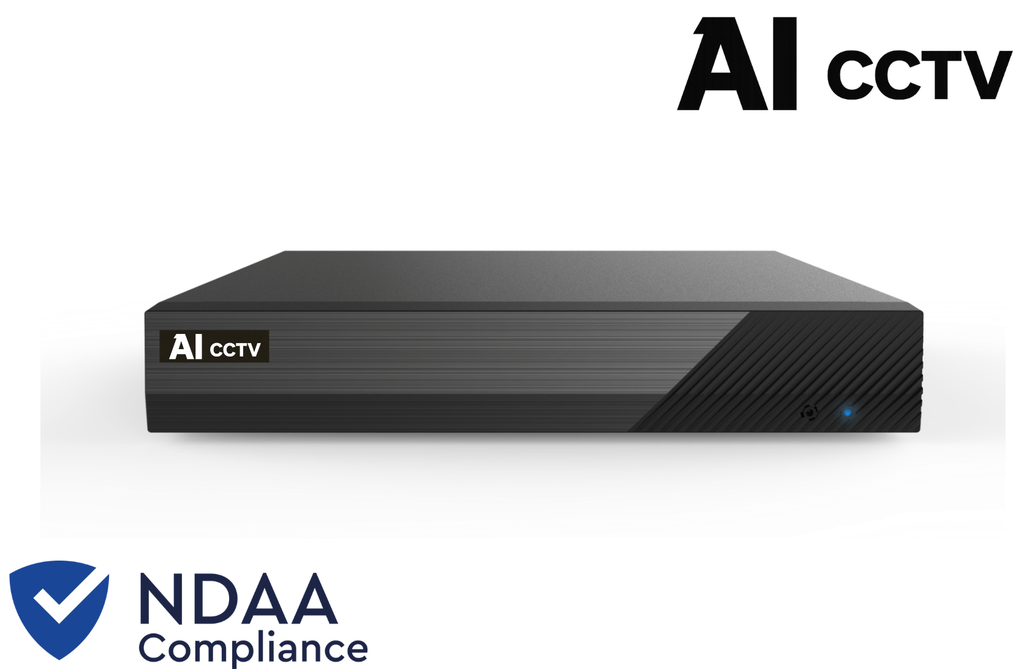

The AI-NVR5008H1-8P-4K is an 8-channel PoE Network Video Recorder designed for reliable 4K IP video surveillance. Built on an embedded Linux platform and powered by advanced SOC technology, it ensures stable performance, high-definition recording on all channels, and smooth playback.
Supporting up to 8MP IP cameras, integrated 8-port PoE, and 4K HDMI output, this NVR is ideal for residential, commercial, enterprise, and government security applications.
Key features
• Supports 8-channel IP camera input up to 8MP
• Integrated 8× PoE ports for direct camera connection
• 4K Ultra HD HDMI output
• H.265S / H.265+ / H.265 / H.264 compression
• Simultaneous 8-channel playback
• Intuitive GUI with mouse operation
• Manual, scheduled, motion, sensor, POS and AI recording
• VCA events: region intrusion, tripwire, object missing/abandoned, crowd density, video exception
• POS overlay on live view and playback
• Smart search by time, event, tag or analytics
• Dual-stream technology for local and remote viewing
• Remote access via Web Client, CMS and mobile app
• QR code scanning for fast mobile setup
• Supports iOS and Android devices
System
Operating system: Embedded Linux
Video
IP camera input: 8 channels
Supported resolutions:
8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / CIF
HDMI output:
3840 × 2160 @30fps, 1920 × 1080, 1280 × 1024, 1024 × 768
VGA output:
1920 × 1080, 1280 × 1024, 1024 × 768
HDMI & VGA: same video source
Compression: H.265S / H.265+ / H.265 / H.264
Multi-screen display: 1 / 4 / 6 / 8 / 9
Audio
IP camera audio input: 8 channels
Audio output: via HDMI
Compression: G.711 (U/A)
Recording & playback
Recording resolution: up to 8MP
Frame rate: 30fps / 25fps (NTSC / PAL)
Simultaneous playback: up to 8 channels
Search modes: time slice, time, event, tag, smart search
Playback functions: play, pause, fast forward, rewind, digital zoom
Decoding capability
Live view / playback:
• 1 × 8MP
• 4 × 1080P
AI & analytics (AI by IPC)
Face detection: 8 channels
Human / vehicle classification: 8 channels
Video metadata (human & vehicle attributes): supported
Plate detection: supported
Fisheye dewarping: via Web Client & mobile app
Statistical reports: bar graph
Statistics period: day / week / month / quarter / custom
Network
Ethernet interface: 1 × RJ45 (100 Mbps)
Network protocols:
TCP/IP, HTTP, HTTPS, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP,
IPv4, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP, ONVIF
Incoming bandwidth: 64 Mbps
Outgoing bandwidth: 64 Mbps
Max user access: 64 users
PoE
PoE ports: 8 × 100 Mbps RJ45
Standard: IEEE 802.3af / at
Total PoE power budget: ≤ 72 W
Storage
HDD interface: 1 × SATA 3.0
Max HDD capacity: up to 10 TB
Backup: USB flash drive and network backup
Ports & interfaces
USB: 2 × USB 2.0
Remote controller: not supported
Power & environment
Power supply: DC 48 V / 1.8 A
Power consumption: ≤ 5 W (without HDD, PoE off)
Operating temperature: −10 °C to 50 °C
Humidity: 10% – 90%
Physical
Dimensions: 255 × 222 × 42 mm (W × D × H)
Compliance
Certifications: CE, FCC
Environmental: RoHS, REACH, WEEE compliant
