Description

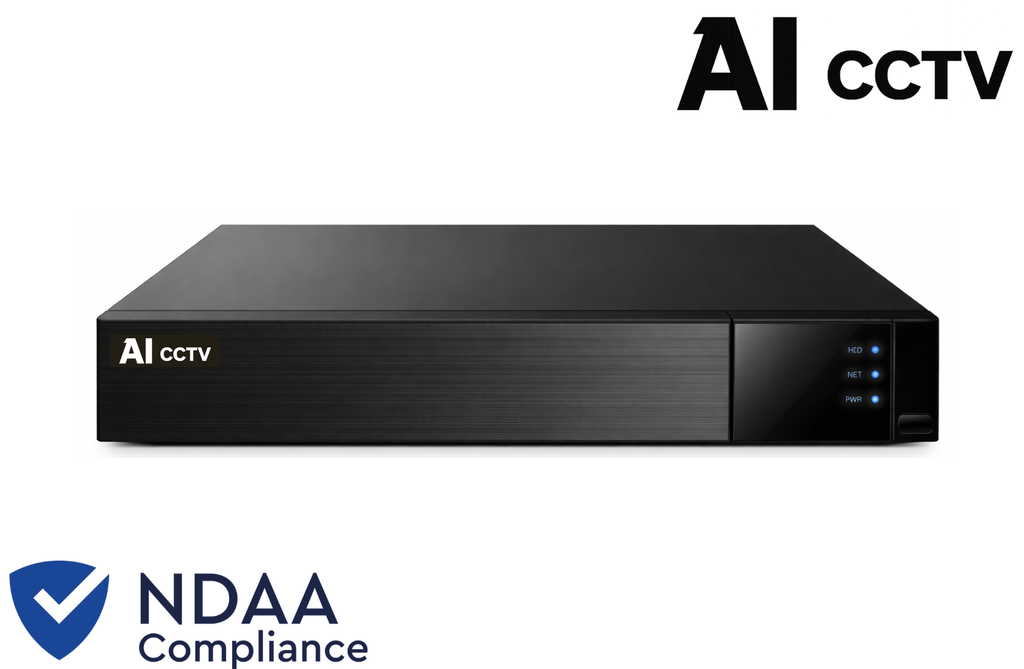

The AI-NVR53316H2-16P-4K is a high-capacity, enterprise-grade 16-channel PoE Network Video Recorder built for large surveillance systems requiring high resolution, high bandwidth, and advanced AI analytics.
Supporting up to 16MP IP cameras, dual SATA storage, 16 integrated PoE ports, and 4K HDMI output, this NVR is ideal for commercial buildings, warehouses, campuses, transport hubs, and government projects.
Key features
• Supports 16-channel IP camera input up to 16MP
• Integrated 16× PoE ports for direct camera connection
• 4K Ultra HD HDMI output
• H.265S / H.265+ / H.265 / H.264 compression
• 16-channel simultaneous playback
• Intuitive GUI with mouse operation
• Manual, scheduled, motion, sensor, POS and AI recording
• Advanced AI analytics:
– Face detection & comparison
– Human / vehicle classification
– License plate recognition
– Perimeter protection (tripwire, intrusion, object missing/abandoned)
• POS overlay on live view and playback
• Pentaplex operation: preview, record, playback, backup and remote access
• ONVIF support for third-party IP cameras
• Remote access via Web Client, CMS and mobile app
• QR code scanning for fast mobile setup
• Supports iOS and Android devices
System
Operating system: Embedded Linux
Video
IP camera input: 16 channels
Supported resolutions:
16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / 960H / D1 / CIF
Video compression: H.265S / H.265+ / H.265 / H.264
HDMI output:
3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768
VGA output:
1920 × 1080, 1280 × 1024, 1024 × 768
HDMI & VGA: same or different video sources
Multi-screen display:
• Main output: 1 / 4 / 6 / 8 / 9 / 13 / 16
• AUX output: 1 / 4 / 6 / 8 / 9
Performance & bandwidth
Incoming bandwidth: up to 192 Mbps
Outgoing bandwidth: up to 192 Mbps
(AI functions may require higher effective bitrate depending on camera settings)
Max user connections: 64
Audio
IP camera audio input: 16 channels
Two-way audio: RCA × 1
Local audio output: RCA × 1
Compression: G.711 (U/A)
Recording & playback
Recording resolution: up to 16MP
Frame rate: NTSC 30fps / PAL 25fps
Simultaneous playback: up to 16 channels
Search modes: time slice, time, event, tag, smart search
Playback functions: play, pause, fast forward, rewind, digital zoom
Decoding capability
Non-AI mode:
• 1 × 16MP @30fps
• 4 × 8MP @30fps
• 9 × 3MP @30fps
• 16 × 2MP @30fps
AI mode:
• 1 × 16MP @30fps
• 4 × 5MP @30fps
• 9 × 2MP @30fps
• 16 × 720P @30fps
AI & analytics
Face recognition:
• Face detection (AI by IPC): 16 channels
• Face detection (AI by device): up to 2MP (2CH) or 4MP (1CH)
• Face comparison speed: 18 images / second
• Face database: 32 libraries, up to 10,000 images
• Allow list, block list and stranger alarms supported
• Face search by image supported
Perimeter protection:
• Human / vehicle classification (AI by IPC): 16 channels
• Attribute analysis supported
Other AI functions:
• License plate recognition (AI by IPC)
• Fisheye camera support
• Track display on map
• Statistical reports by day, week, month, quarter or custom period
Alarm
Alarm modes: manual, motion, sensor, exception, smart events
Alarm inputs: 8 channels
Alarm outputs: 4 channels
Trigger actions: recording, snapshot, preset, email
PoE
PoE ports: 16 × 100 Mbps RJ45
Standard: IEEE 802.3af / at
Total PoE power budget: ≤ 150 W
Network
Ethernet interface: 1 × RJ45 (1000 Mbps)
Protocols supported:
TCP/IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, HTTPS,
FTP, SMTP, 802.1X, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP, ONVIF
Storage & backup
HDD interfaces: 2 × SATA
Max HDD capacity: up to 10 TB per drive
Backup methods:
• USB flash drive
• USB mobile HDD
• Network backup
Interfaces
USB ports: 1 × USB 3.0, 2 × USB 2.0
RS-485: supported (PTZ or keyboard)
Remote controller: optional
Power & environment
Power supply: DC 48 V / 3.75 A
Power consumption: ≤ 20 W (without HDD and PoE)
Operating temperature: −10 °C to 50 °C
Humidity: 10% – 90%
Physical
Dimensions: 380 × 268 × 45 mm (W × D × H)
Compliance
Certifications: CE, FCC
Environmental: RoHS, REACH, WEEE
