Description

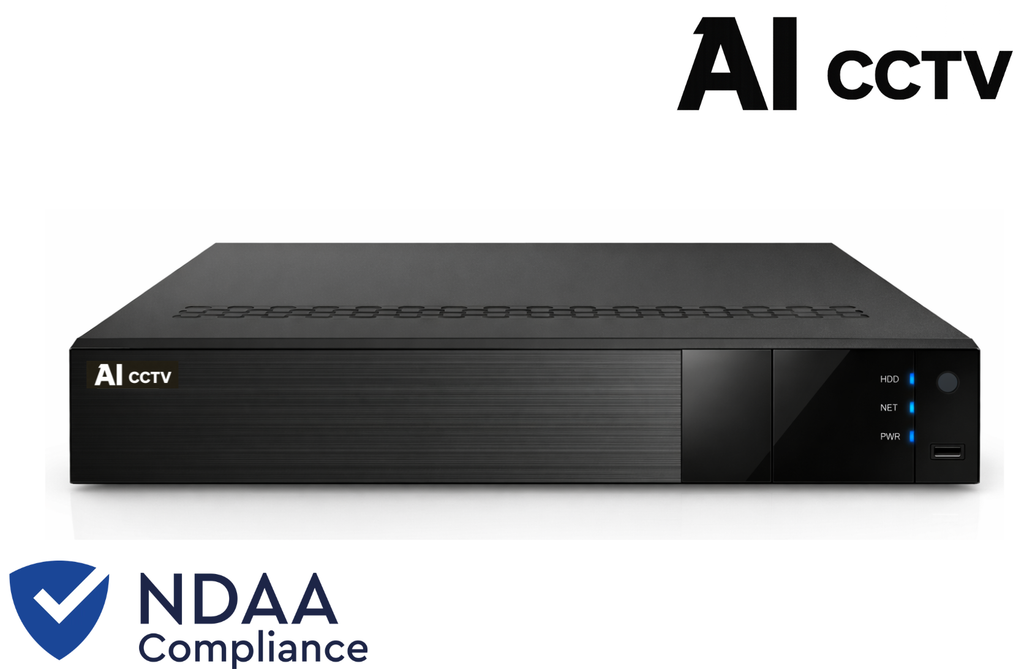

The AI-NVR53332H4-16P-4K is an enterprise-grade 32-channel AI Network Video Recorder designed for large-scale surveillance systems requiring very high resolution, massive bandwidth, multi-display output, and advanced analytics.
Supporting up to 32 IP cameras, 16 integrated PoE ports, dual HDMI outputs, quad-SATA storage, and 4K Ultra HD display, this model is ideal for campuses, warehouses, factories, shopping centres, transport hubs, and government infrastructure projects.
Key features
• Supports 32-channel IP camera input up to 16MP
• Integrated 16× PoE ports for direct camera connection
• Dual HDMI + VGA outputs with 4K resolution
• H.265S / H.265+ / H.265 / H.264 compression
• 16-channel simultaneous playback
• Intuitive GUI with mouse operation
• Manual, scheduled, motion, sensor, POS and AI recording
• Advanced AI analytics:
– Face detection & comparison
– Human / vehicle classification
– License plate recognition
– Perimeter protection (tripwire, intrusion, object missing/abandoned)
• POS overlay on live view and playback
• Pentaplex operation: preview, record, playback, backup and remote access
• ONVIF support for third-party IP cameras
• Remote access via Web Client, CMS and mobile app
• QR code scanning for fast mobile setup
• Supports iOS and Android devices
System
Operating system: Embedded Linux
Video
IP camera input: 32 channels
Supported resolutions:
16MP / 12MP / 9MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / 960H / D1 / CIF
Video compression: H.265S / H.265+ / H.265 / H.264
Video output:
HDMI 1:
3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768
HDMI 2:
1920 × 1080, 1280 × 1024, 1024 × 768
VGA output:
1920 × 1080, 1280 × 1024, 1024 × 768
HDMI 1 & VGA: same video source supported
Multi-screen display
Main output: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36
AUX output: 1 / 4 / 6 / 8 / 9
Max local live view: 32 + 9
Performance & bandwidth
Incoming bandwidth: up to 320 Mbps
Outgoing bandwidth: up to 320 Mbps
(AI camera functions may require higher effective bitrate depending on configuration)
Max user connections: 128 users
Audio
IP camera audio input: 32 channels
Two-way audio: RCA × 1
Local audio output: RCA × 1
Compression: G.711 (U/A)
Recording & playback
Dual-stream recording supported
Recording resolution: up to 16MP
Frame rate: NTSC 30fps / PAL 25fps
Simultaneous playback: up to 16 channels
Search modes: time slice, time, event, tag, smart search
Playback functions: play, pause, fast forward, rewind, digital zoom
Decoding capability
Non-AI mode:
• 1 × 16MP @30fps
• 4 × 8MP @30fps
• 9 × 3MP @30fps
• 16 × 2MP @30fps
AI mode:
• 1 × 16MP @30fps
• 4 × 6MP @30fps
• 9 × 3MP @30fps
• 16 × 720P @30fps
AI & analytics
Face recognition:
• Face detection (AI by IPC): 32 channels
• Face detection (AI by device): up to 2MP (2CH) or 4MP (1CH)
• Face comparison speed: 18 images / second
• Face database: 32 libraries, up to 10,000 images
• Allow list, block list and stranger alarms supported
• Face search by image supported
Perimeter protection:
• Human / vehicle classification (AI by IPC): 32 channels
• Attribute analysis supported
Other AI functions:
• License plate recognition (AI by IPC)
• Fisheye dewarping via NVR, Web Client and mobile app
• Track display on map
• Statistical reports by day, week, month, quarter or custom period
Alarm
Alarm modes: manual, motion, sensor, exception, smart events
Alarm inputs: 16 channels
Alarm outputs: 4 channels
Trigger actions: recording, snapshot, preset, email
PoE
PoE ports: 16 × 100 Mbps RJ45
Standard: IEEE 802.3af / at
Total PoE power budget: ≤ 150 W
Network
Ethernet interfaces: 2 × RJ45 (1000 Mbps)
Protocols supported:
TCP/IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, HTTPS,
FTP, SMTP, 802.1X, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP
Storage & backup
HDD interfaces: 4 × SATA
Max HDD capacity: up to 10 TB per drive
eSATA interface: 1 × eSATA
Backup methods:
• USB flash drive
• USB mobile HDD
• Network backup
Interfaces
USB ports: 1 × USB 3.0, 2 × USB 2.0
RS-485: supported (PTZ or keyboard)
Remote controller: optional
Power & environment
Power supply: ATX 300 W (PoE)
Power consumption: ≤ 20 W (without HDD and PoE)
Operating temperature: −10 °C to 50 °C
Humidity: 10% – 90%
Physical
Dimensions: 440 × 390 × 70 mm (W × D × H)
Compliance
Certifications: CE, FCC
Environmental: RoHS, REACH, WEEE
