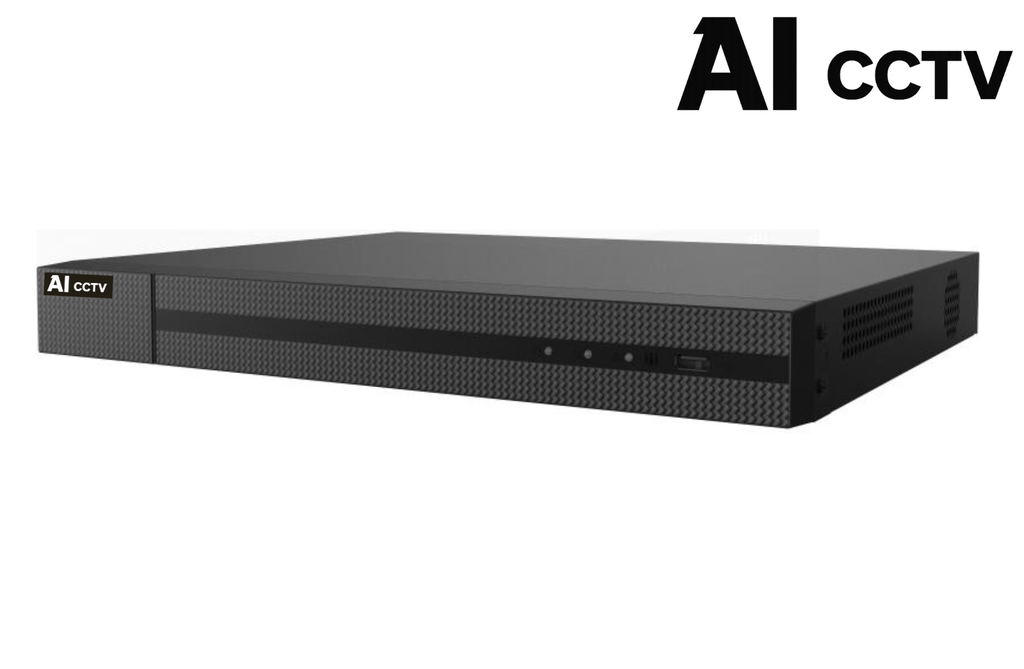

The AI CCTV LITE-16-4K / 16P is a 16 channel 4K Network Video Recorder with built-in 16 PoE ports for simple plug-and-play installation.
It supports up to 16 IP cameras and delivers reliable 4K recording for medium-sized homes and commercial sites.
Designed as a cost-effective solution for larger CCTV systems without advanced AI features.
Datasheet
Key Features
• 16 Channel IP Camera Support
• Built-in 16 Port PoE
• 4K HDMI Output
• Up to 160 Mbps Incoming Bandwidth
• H.265+ Video Compression
• Dual SATA (2 HDD Bays)
• ONVIF Compatible
Video Output
• HDMI – Up to 4K (3840 × 2160 @30Hz)
• VGA – 1080p
Performance
• Supports Recording Up to 8MP
• Up to 1-ch @ 8MP Decoding
• Up to 5-ch @ 1080p Decoding
• 16 Channel Playback
Storage
• 2 × SATA Bays
• Supports up to 8TB per HDD
PoE
• 16 × PoE Ports
• Max 150W Total PoE Budget
• IEEE 802.3af/at
Network
• 1 × Gigabit LAN Port
• Supports Remote Viewing
Power
• 100–240V AC
• ≤15W (Without PoE & HDD Load)
Suitable For
• Medium to Large Homes
• Offices
• Retail Stores
• Warehouses
• Entry-Level Commercial Projects
