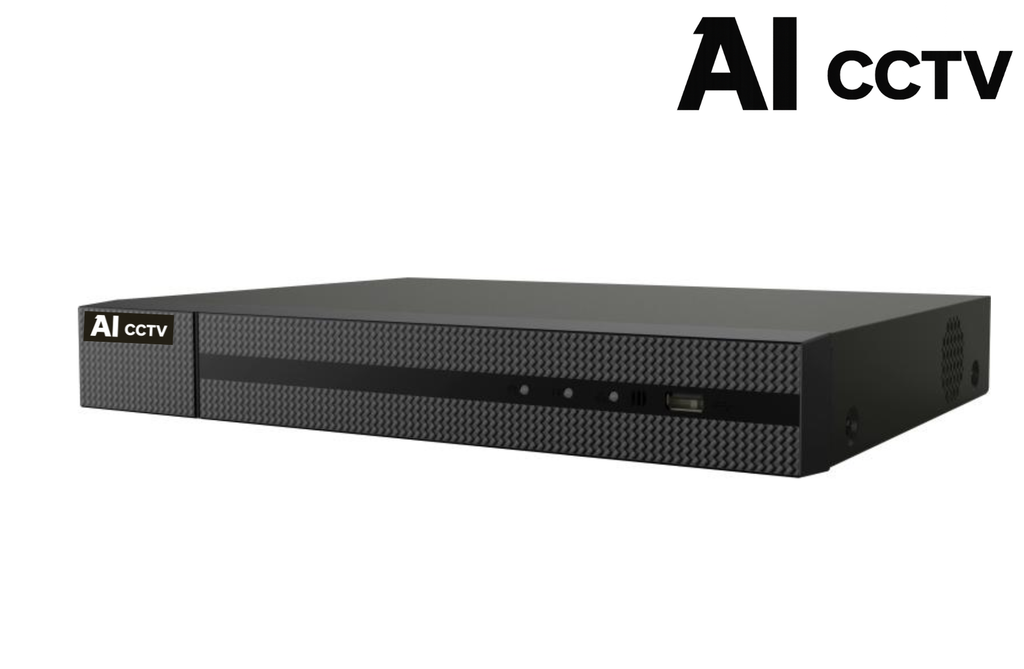

The AI CCTV LITE-8-4K / 8P is an 8 channel 4K Network Video Recorder with built-in 8 PoE ports for simple plug-and-play installation.
It supports up to 8 IP cameras and delivers reliable 4K recording for small homes and businesses.
Designed as a cost-effective solution for everyday CCTV systems.
Datasheet
Key Features
• 8 Channel IP Camera Support
• Built-in 8 Port PoE
• 4K HDMI Output
• Up to 80 Mbps Incoming Bandwidth
• H.265+ Video Compression
• 1 SATA Bay
• ONVIF Compatible
Video Output
• HDMI – Up to 4K (3840 × 2160 @30Hz)
• VGA – 1080p
HDMI and VGA work at the same time.
Performance
• Up to 8MP Recording Resolution
• Up to 1-ch @ 8MP Decoding
• Up to 5-ch @ 1080p Decoding
• 8 Channel Playback
Storage
• 1 × SATA
• Supports up to 8TB HDD
PoE
• 8 × PoE Ports (10/100 Mbps)
• Max 75W Total PoE Budget
Power
• 48V DC
• ≤10W (Without PoE Enabled)
Suitable For
• Homes
• Small Shops
• Small Offices
• Entry-Level CCTV Installations
