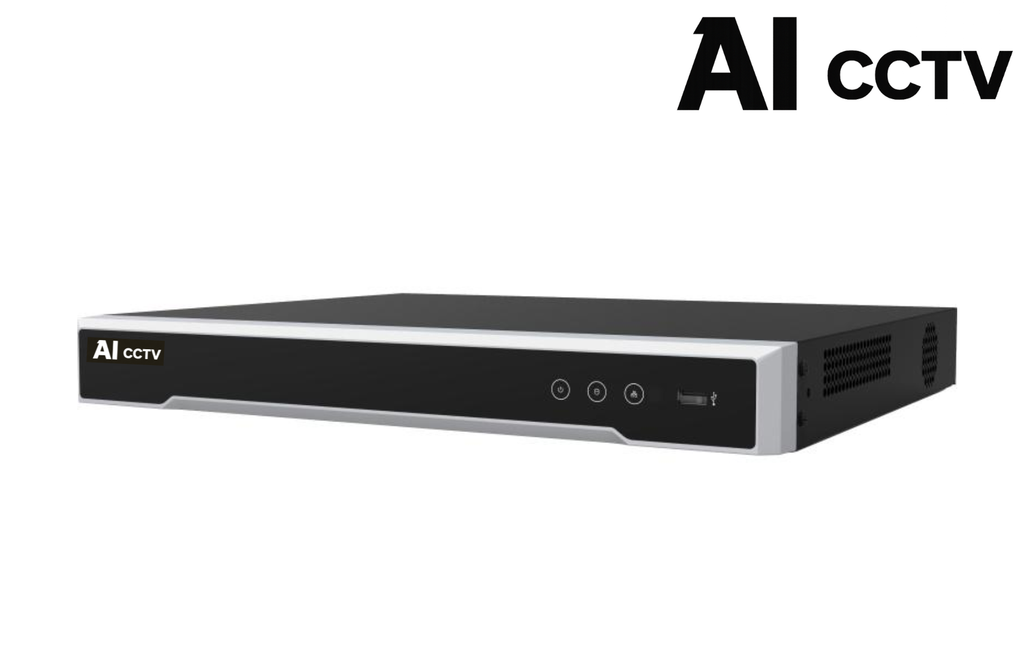

The AI CCTV PRO-16X-8K / 16P is a powerful 16 channel 8K Network Video Recorder with built-in 16 PoE ports.
It supports up to 16 IP cameras, ultra-high resolution up to 32MP, dual hard drives, and high bandwidth for larger residential and commercial projects.
Designed for professional installations requiring strong performance, higher storage capacity, and future-ready 8K output.
Datasheet
Key Features
• 16 Channel IP Camera Support
• Built-in 16 Port PoE (Plug & Play)
• Supports Cameras Up to 32MP
• 8K HDMI Output
• Up to 256 Mbps Incoming Bandwidth
• H.265+ Compression
• Dual SATA (2 HDD Bays)
• Supports IP Speakers (Up to 8)
• ONVIF Compatible
Video Output
• HDMI – Up to 8K (7680 × 4320 @30Hz)
• VGA – 1080p
• CVBS Output (BNC)
HDMI and VGA work independently.
Performance
• Up to 16-ch @ 4MP Decoding
• Supports 32MP / 24MP in Ultra HD Mode
• 256 Mbps Incoming Bandwidth
• 256 Mbps Outgoing Bandwidth
• 16 Channel Synchronous Playback
Storage
• 2 × SATA Bays
• Up to 16TB per HDD
• Suitable for longer retention projects
PoE
• 16 × PoE Ports (IEEE 802.3af/at)
• Max 200W Total PoE Budget
Power
• 100–240V AC
• ≤15W (Without HDD & PoE Off)
Suitable For
• Large Homes
• Retail & Commercial Sites
• Warehouses
• Multi-building Installations
• High-Camera-Count Projects
