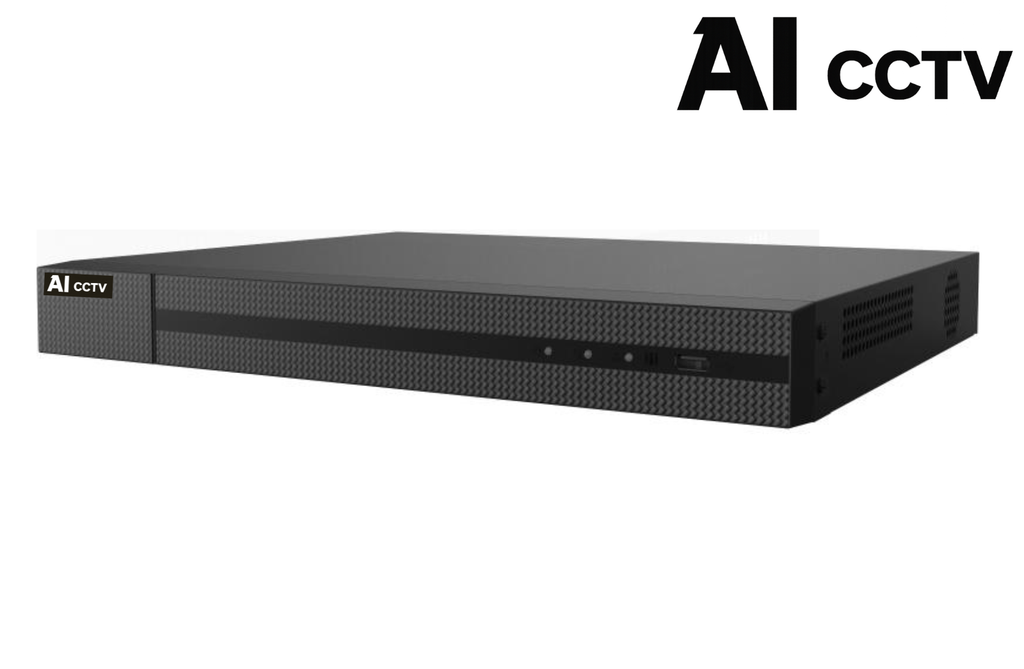

The AI CCTV PRO-32AI-4K / 16P is a 32 channel 4K AI Network Video Recorder with built-in 16 PoE ports.
It supports up to 32 IP cameras and includes advanced AI features such as facial recognition, human & vehicle detection, and perimeter protection.
Designed for medium to large commercial projects requiring AI analytics with high bandwidth and strong decoding performance.
Key Features
• 32 Channel IP Camera Support
• Built-in 16 Port PoE (Plug & Play)
• 4K HDMI Output
• Up to 256 Mbps Incoming Bandwidth
• H.265+ Compression
• Facial Recognition Support
• Human & Vehicle Detection
• Perimeter Protection
• Dual SATA (2 HDD Bays)
• ONVIF Compatible
AI Features
Recorder AI:
• Facial Recognition (1 Channel @ 8MP)
• Up to 4 Channel Face Comparison
• Perimeter Protection
• Human & Vehicle Motion Detection
Camera AI (When using AI cameras):
• Perimeter Protection on All Channels
• ANPR Support
• Object Detection (Throwing from Building)
• Advanced Motion Detection 2.0
Face Library:
• Up to 16 Libraries
• Up to 20,000 Face Images
Video Output
• HDMI – Up to 4K (3840 × 2160 @30Hz)
• VGA – 1080p
• HDMI and VGA Independent Output
Performance
AI ON:
• 2-ch @ 12MP
• 3-ch @ 8MP
• 6-ch @ 4MP
• 12-ch @ 1080p
AI OFF:
• 2-ch @ 12MP
• 4-ch @ 8MP
• 8-ch @ 4MP
• 16-ch @ 1080p
16 Channel Playback
Storage
• 2 × SATA Bays
• Supports up to 16TB per HDD
PoE
• 16 × PoE Ports
• Max 200W Total PoE Budget
• IEEE 802.3af/at
Power
• 100–240V AC
• ≤15W (Without HDD & PoE Off)
Suitable For
• Retail & Commercial Buildings
• Warehouses
• Schools
• Office Complexes
• AI-Based Security Projects
