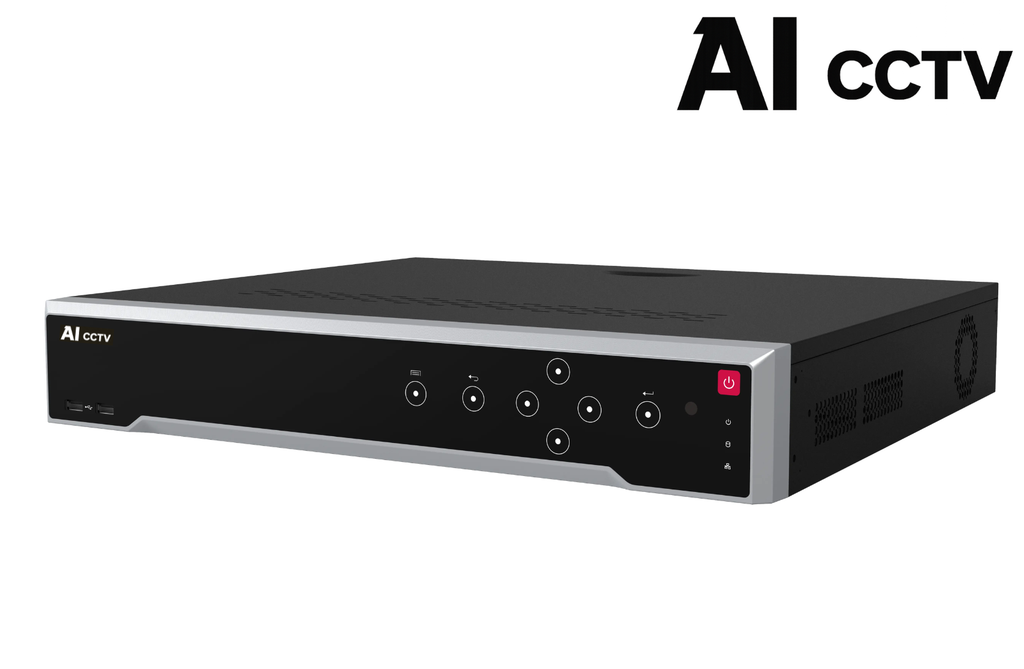

The AI CCTV PRO-32X-8K / 16P is a high-performance 32 channel 8K Network Video Recorder designed for large commercial and industrial projects.
It supports up to 32 IP cameras, includes 16 built-in PoE ports, dual HDMI outputs, 4 hard drive bays, and high bandwidth for large-scale recording systems.
Built in a 19-inch rackmount chassis, this model is ideal for professional installations requiring strong performance and expandable storage.
Datasheet
Key Features
• 32 Channel IP Camera Support
• Built-in 16 Port PoE (Plug & Play)
• Supports Cameras Up to 32MP
• 8K HDMI Output
• Dual HDMI Outputs
• Up to 320 Mbps Incoming Bandwidth
• Up to 400 Mbps Outgoing Bandwidth
• H.265+ Compression
• 4 SATA Bays
• ONVIF Compatible
Video Output
• HDMI 1 – Up to 8K (7680 × 4320 @30Hz)
• HDMI 2 – Up to 4K
• VGA – 1080p
• CVBS Output (BNC)
Note: When HDMI 1 is set to 8K, HDMI 2 supports up to 1080p.
Performance
• Up to 32 Channel Camera Input
• Up to 32-ch @ 1080p Decoding
• Supports 32MP / 24MP in Ultra HD Mode
• 16 Channel Synchronous Playback
Storage
• 4 × SATA Bays
• Up to 16TB per HDD
• Ideal for long retention and high camera count projects
• 1 × eSATA Port
PoE
• 16 × PoE Ports (IEEE 802.3af/at)
• Max 200W Total PoE Budget
Professional Interfaces
• 16 Alarm Inputs / 9 Alarm Outputs
• RS-485 & RS-232
• USB 2.0 (Front)
• USB 3.0 (Rear)
• Rackmount 1.5U Chassis
Power
• 100–240V AC
• ≤15W (Without HDD & PoE Off)
Suitable For
• Large Commercial Buildings
• Warehouses
• Shopping Centres
• Schools
• Industrial Sites
• Multi-building Projects
