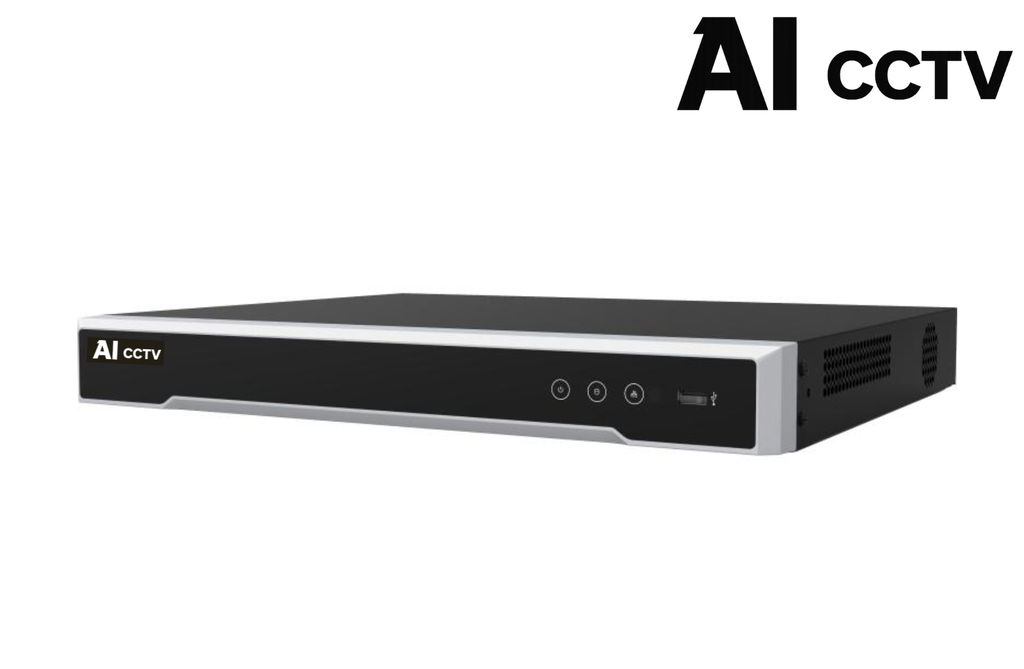

The AI CCTV PRO-8X-8K / 8P is a high-performance 8 channel 8K Network Video Recorder with built-in 8 PoE ports.
It supports ultra-high resolution cameras up to 32MP, provides 8K HDMI output, and delivers strong decoding performance for large residential and commercial systems.
Designed for projects requiring higher bandwidth, dual hard drives, and advanced video clarity.
Datasheet
Key Features
• 8 Channel IP Camera Support
• Built-in 8 Port PoE (Plug & Play)
• Supports Cameras Up to 32MP
• 8K HDMI Output
• Up to 128 Mbps Incoming Bandwidth
• H.265+ Compression
• Dual SATA (2 HDD Bays)
• Supports IP Speakers (Up to 8)
• ONVIF Compatible
Video Output
• HDMI – Up to 8K (7680 × 4320 @30Hz)
• VGA – 1080p
• CVBS Output (BNC)
HDMI and VGA work independently.
Performance
• Up to 8-ch @ 8MP Decoding
• Supports 32MP / 24MP in Ultra HD Mode
• 128 Mbps Incoming Bandwidth
• 256 Mbps Outgoing Bandwidth
• 8 Channel Synchronous Playback
Storage
• 2 × SATA Bays
• Up to 16TB per HDD
• Ideal for longer retention projects
PoE
• 8 × PoE Ports (IEEE 802.3af/at)
• Max 120W Total PoE Budget
Power
• 100–240V AC
• ≤15W (Without HDD & PoE Off)
Suitable For
• Large Homes
• Commercial Buildings
• Warehouses
• High-Resolution Camera Projects
• Installations requiring dual HDD storage
