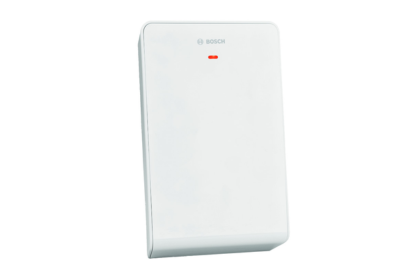

Bosch B810 Wireless Receiver for Bosch 3000

Wireless SDI2 bus interface

• Dual internal antennas provide spatial and polar RF signal reception for high reliability

• Cover and wall tamper protection

• Multiple device enrollment options as well as RF diagnostics ensure efficient and effective installation

• Supports supervision of wireless points (504), keyfobs (1000), and repeaters (8)

• External status LEDs

• Detection and reporting of radio frequency interference



Dimensions	139.70 mm x 209.60 mm x 31.80 mm (5.50 in x 8.25 in x 1.25 in)
Wiring distance	243 m (800 ft)
Wiring gauge	0.65 mm (22 AWG) to 2.0 mm (18 AWG)
Tamper detection	Transmits a tamper switch signal when the unit is removed from its base, or the mounting surface.

Power/voltage	10-14 VDC, 12 VDC nominal
Maximum current draw	70 mA
Frequency	433.42 MHz

Operating Environment	0ﾟC to +49ﾟC (+32ﾟF to +120ﾟF )
Relative humidity	Up to 93% non-condensing
Use	Intended for indoor use.



Quantity	Component
1	Wireless receiver
1	Hardware pack
1	Installation guide



Downloads

Title	Type	Language
CSFM	PDF	en-US
EU Declaration of conformity ([B810])	PDF	en-US
RCM ([B810])	PDF	en-US
UL ([B810, RFRP-A, RFRP2])	PDF	en-US
Addendum (Regulatory Addendum)	PDF	en-US
CAD Drawing DXF	DXF	en-US
CAD Drawing DXF (PDF with dimensions)	PDF	en-US
Commercial Brochure ([Product Guide for North America and South America])	PDF	en-US
Compatibility list (B810 Compatible Modules Document List)	PDF	en-US
Datasheet	PDF	en-US  es-ES  hu-HU  it-IT  nl-NL  pl-PL  pt-BR  sv-SE  de-DE  fr-FR  el-GR
Installation manual ([Quick Installation Guide])	PDF	el-GR  pl-PL  en-US  de-DE  it-IT  nl-NL  hu-HU  es-ES  pt-BR  zh-CN  fr-FR  sv-SE
Quick Selection Guide	PDF	en-US  pt-BR  zh-CN  nl-NL  pl-PL  pt-PT  sv-SE  el-GR  hu-HU  it-IT  es-ES  de-DE  fr-FR  es-AR
Release notes	PDF	en-US
Special (Technical Bulletin [RFSM-A])	PDF	en-US
Technical bulletin (B810 missing)	PDF	en-US
User manual ([Reference Guide - B810 RADION receiver SDI2 - for North America and South America])	PDF	pt-BR  en-US  es-ES  fr-FR
Software (RADION receiver SD (B810) v3.1.0 firmware for use with RPS Software 5.17 or higher)	ZIP	en-US
