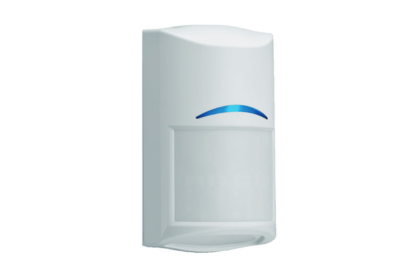

Bosch Blue Line Tritech PIR Detector 12m ISC-BDL2-W12

Motion detector, 40ft (12m)

• Dynamic Temperature Compensation – superior catch performance in any environment

• Microwave Noise Adaptive processing – reduce false alarms from repetitive sources

• Wall to Wall Coverage – superior catch performance

• Flexible Mounting Height, No Adjustments – reduce installation time and false alarms, improve catch performance

• Self-locking Enclosure with Integrated Bubble Level – reduce installation time



Alarm relay contact type	NC
Current consumption (mA)	10 mA
Detection radius (m)	12 m
Dimensions (H x W x D) (mm)	105 x 61 x 44 mm
Installation height (m)	2.20 – 2.75 m
Wireless transmission frequency	10.525 GHz
Operating temperature (°C)	-20 – 55 °C
Operating voltage (VDC)	9 – 15 VDC
Tamper relay contact type	NC
Transmission frequency (GHz)	10.5250 GHz



Quantity	Component
1	Detector
1	Hardware pack 2 anchors (#6, #8 x 7/8) 2 screws (#6 x 1.25) 1 cable tie (2.5 mm)
1	Literature pack
