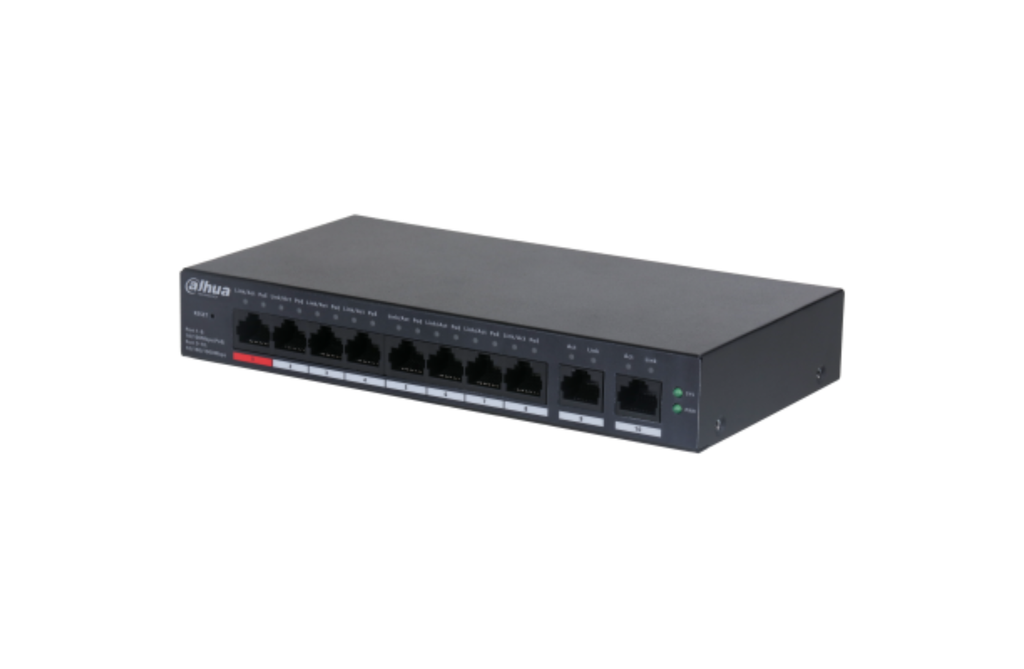

Dahua 10-Port CS4010-8ET-110 Cloud Managed Desktop Switch with 8-Port PoE

Key Features

• Meets IEEE802.3 / IEEE802.3u / IEEE802.3x / IEEE802.3ab standards

• Supports IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt

• Intelligent PoE with power consumption management & PoE on/off

• Full metal, fully-enclosed, dust-proof housing

• Wide operating temperature range

• Cloud / Web / App management

• Datasheet

---

Hardware

• Included Power Adapter: Yes

• PoE: Yes

• Ethernet Ports: 8 × RJ-45 (10/100 Mbps)

• Uplink Ports: 2 × RJ-45 (10/100/1000 Mbps)

• Function Slots: Port 1–8 PoE; Port 9–10 uplink

• Reset Button: 1

• Power Supply: 54 VDC, 2.22 A

• Operating Temp: –10 °C to +55 °C

• Operating Humidity: 5%–95% RH (non-condensing)

• Storage Temp: –40 °C to +70 °C

• Storage Humidity: 5%–95% RH

• Power Consumption: ≤3 W idle; 110 W full load

---

Performance

• Layer: L2

• Smart Managed Switch: Yes

• MTBF: 150 years

• Switching Capacity: 5.6 Gbps

• Packet Forwarding Rate: 4.17 Mpps

• Packet Buffer: 4 Mbit

• Jumbo Frame: 9216 bytes

• MAC Table: 8K

• VLAN Support: 32 VLANs

• Standards: IEEE802.3 / 802.3u / 802.3x / 802.3ab

---

PoE Features

• PoE Protocol: IEEE802.3af / IEEE802.3at / Hi-PoE / IEEE802.3bt

• Total PoE Budget: ≤110 W

• Per-Port Power:

  • Port 1: ≤ 90 W

  • Port 2–8: ≤ 30 W each

• PoE Power Management: Yes

• PoE Pinout: 1,2,4,5 (V+), 3,6,7,8 (V–)

• Long Distance PoE: Supported

---

Functions

• VLAN: Port-based VLAN

• Flow Control: IEEE 802.3x

• DHCP: DHCP Client

• Management: Web UI; Mobile App

---

Protection

• ESD Protection:

  • Air: 8 kV

  • Contact: 6 kV

• Lightning Protection:

  • Common mode: 4 kV

  • Differential mode: 2 kV

---

Physical

• Net Weight: 0.5 kg

• Gross Weight: 1.25 kg

• Dimensions: 190 × 106 × 30 mm

• Packaging Size: 256 × 244 × 87 mm

• Material: Sheet metal

• Installation: Desktop or wall mount

• Certifications: CE
