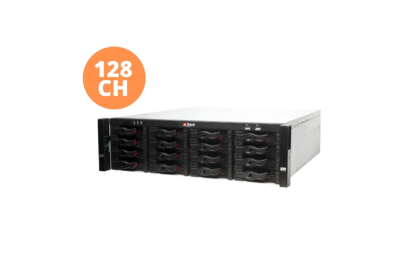

Dahua DHI-NVR616-128-4KS2 128 Channel Ultra Series NVR can record up to 12MP and features RAID, 2 x HDMI (4K), 2 x Ethernet Ports, Face Detection, POS, ANPR, Redundant Power.
New 4.0 user interface
16-channel decoding@1080p (30 fps); self-adaptive decoding capability
Access, storage or forwarding at 384 Mbps
Simultaneous video output for VGA and HDMI1; 4K heterogeneous output for the 2 HDMI ports
Supports RAID 0/1/5/10Multiple data mode such as Raid0, Raid1, Raid5, Raid6, and Raid10
Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches
AI-by-camera functions such as perimeter protection, face detection and recognition, SMD Plus, video metadata, ANPR and 3D behaviour analysis
N+M cluster. When the host fails, the stand by device will continue to record; once the host recovers, video recorded on the standby device will be transmitted back
Specifications
Number of Channels: 128 Channel
Number of PoE Ports: 0 x PoE Ports
Number of Hard Disk Bay: 16 x HDD Bay
Technology: Ultra Series
Network Bandwidth: 384 Mbps Access, Storage or Forwarding
Maximum Resolution Support: 12MP
System
Main Processor: Industrial embedded micro-processor
Operating System: Embedded LINUX
Operating Interface: Web mode, local GUI
Perimeter Protection by Camera
Performance: 24 channels
AI Search: Search pictures by channel, time, event type
Face Recognition by Camera
Performance: 24 channels
Face Attributes: 6 attributes: Gender, age, glasses, expression, mouth mask, and beard
AI Search: Search pictures by channel, time and face attributes
SMD Plus By Camera
Performance: 32 channels
AI Search: Search by target classification (Human, Vehicle)
Video Metadata By Camera
Performance: 12 channels
Human Body: Top, top color, bottom, bottom color, hat, bag, gender, age, umbrella
Vehicle: Plate No., type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, region
Non-motor Vehicle: Type, color, number of passengers, helmet
AI Search: Support search target video by metadata
ANPR by Camera
Performance: 8 channels
Stereo Analysis by Camera
Performance: 32 channels
AI Search: Search by target classification (Fall Detection, People Approach Detection, People No. Exception Detection, People Staying Detection, Violence Detection)
Video
Access Channel: 64/128
Network Bandwidth: 384 Mbps for access, 384 Mbps for storage and 384 Mbps for forwarding
Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/960p/720p/D1/CIF/QCIF
Decoding Capability: 16-ch@1080p (30 fps)
Video Output: VGA: 1920 × 1080, 1280 × 1024, 1280 × 720HDMI1/HDMI2: 3840 × 2160@30 fps, 3840 × 2160 @25 fps, 1920 × 1080, 1280 × 1024, 1280 × 7201 channel VGA output, 2 channels HDMI output, VGA and HDMI 1 homologous output, double HDMI heterogeneous output. Support 4K display for both HDMI1 and HDMI2
Multi-screen Display: 1st Screen: 1/4/8/9/16/25/36/64 2nd Screen: 1/4/8/9/16
Third Party Camera Access: Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and more
Compression
Video: Smart H.265+/H.265/Smart H.264+/H.264/MPEG4/MJPEG
Audio: MP2/G726/G729/G722/G723/G711A/G711U/PCM
Network
Network Protocol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P, iSCSI
Mobile Phone Access: iOS, Android
Interoperability: ONVIF (profile T/S/G), CGI, SDK
Browser: Chrome, IE9 or later, Firefox
Record Playback
Multi-channel Playback: 1/4/9/16
Record Mode: Manual, Schedule (General, MD (Motion Detection), Alarm, MD &
