Description
Description

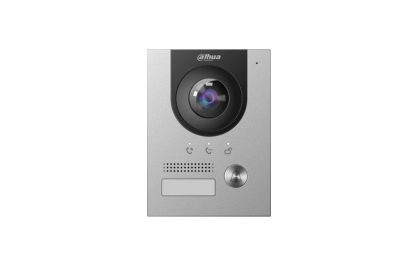

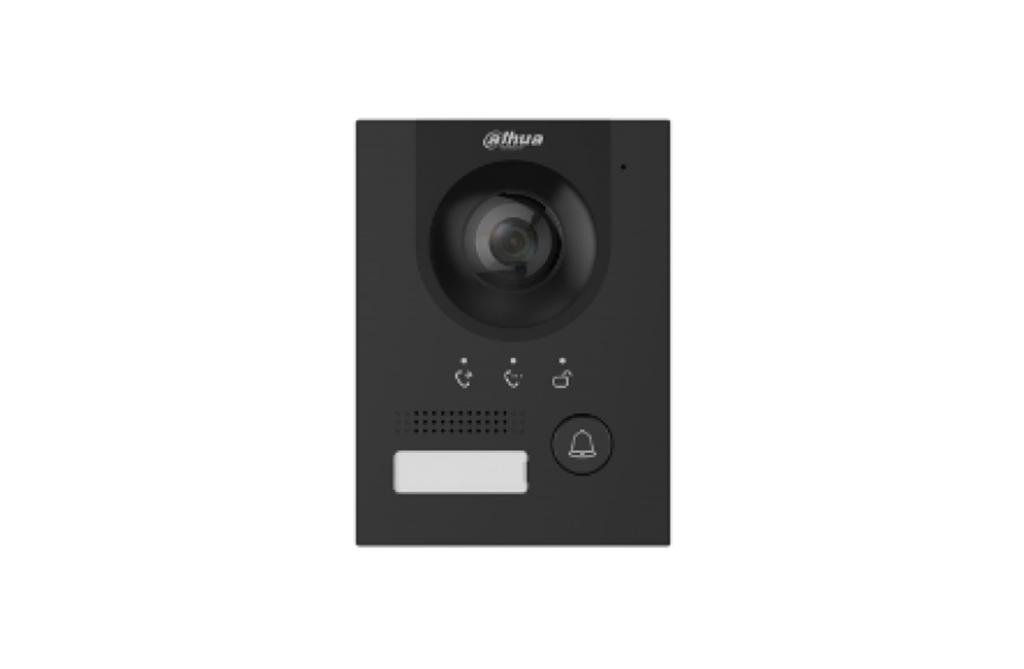

2-wire IP Villa Door Station
> Anodized aluminum front panel.
> CMOS low illumination 2MP HD colorful 168.6° camera.
> Video intercom function.
> Provides 12 VDC, 600 mA power.
> Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
> IK07 & IP65 rated (silicone sealant is required for the shell, see the quick start guide).
> Support surface and flush mount.
> Support H.265 and H.264.
> Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).
Specifications
🔧 System
-
Main Processor: Embedded Processor
-
Operating System: Embedded Linux
-
Button Type: Mechanical
-
Number of Buttons: 1
-
Interoperability: ONVIF, CGI
-
Network Protocols: IPv4, RTSP, UDP, DNS, P2P, UPnP, RTP, TCP, SIP
🎥 Basic – Video & Imaging
-
Camera: 1/2.9" 2 MP CMOS
-
Field of View:
-
Horizontal: 168.6°
-
Vertical: 87.1°
-
Diagonal: 176.7°
-
-
WDR (Wide Dynamic Range): 120 dB
-
Noise Reduction: 3D NR
-
Video Compression: H.265, H.264
-
Video Resolution:
-
Main Stream: 720p, WVGA, D1, CIF
-
Sub Stream: 1080p, WVGA, D1, QVGA, CIF
-
-
Frame Rate: 25 fps
-
Bit Rate: 256 Kbps – 8 Mbps
-
Light Compensation: Auto IR
-
Day/Night Mode: Auto (ICR), Color, B/W
🔊 Audio
-
Compression: G.711a, G.711u, PCM
-
Input: 1 channel
-
Output: Built-in speaker
-
Audio Mode: Two-way audio
-
Audio Enhancement: Echo suppression, digital noise reduction
-
Bit Rate: 16 kHz, 16-bit
⚙️ Functions
-
Communication Mode: Digital 2-wire
-
Unlock Mode: Remote
-
Leave Video Messages: Yes (Requires SD card in indoor monitor or door station)
-
Storage: Supports Micro SD card (up to 256 GB)
-
Web Configuration: Supported
🚪 Performance & Interfaces
-
Casing Material: Aluminum
-
RS-485 Port: 1
-
Alarm Output: 1
-
Power Output: 1 × 12 V / 600 mA
-
Exit Button: 1
-
Door Status Detection: 1
-
Lock Control: 1
-
Network Port: 1 × RJ-45, 10/100 Mbps
-
Tamper Alarm: Yes
⚙️ General
-
Appearance Color: Silver
-
Power Supply:
-
Dahua 2-wire switch (Max. distance: 50 m)
-
48 VDC, 1 A
-
PoE (802.3af/at)
-
-
Power Adapter: Optional
-
Installation: Flush Mount / Surface Mount
-
Certifications: CE
-
Accessories:
-
Surface mount box (optional)
-
Flush mount box (optional)
-
Rain cover (optional)
-
-
Dimensions: 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
-
Protection: IK07, IP65
🌡️ Environmental
-
Operating Temperature: –30°C to +60°C (–22°F to +140°F)
-
Operating Humidity: 10%–90% RH, non-condensing
-
Storage Temperature: 0°C to +40°C (+32°F to +104°F)
-
Storage Humidity: 30%–75% RH, non-condensing
-
Operating Environment: Outdoor
-
Operating Altitude: 0 m–3000 m (0 ft–9842.52 ft)
-
Power Consumption: ≤4 W (standby), ≤5 W (working)
-
Gross Weight: 0.48 kg (1.06 lb)
