Description

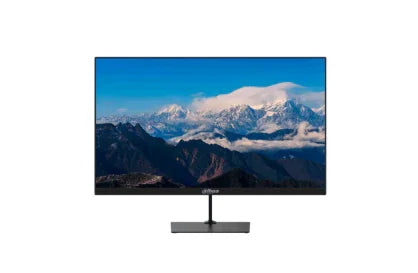

23.8'' FHD Monitor
> Light and cost-effective plastic housing;
> Ultra-narrow bezel, elegant appearance, metal base;
> 178°H/178°V extra-wide viewing angle for overall viewing performance;
> High fidelity digital processing for a brilliant and vivid video;
> Support multiple signal inputs including HDMI and VGA;
> Low energy consumption, long service life;
> Anti-blue light design, eye-protective.

Specifications
Model
• Model Number: DHI-LM24-B200
Display Features
• Screen Size: 23.8"
• Aspect Ratio: 16:9
• Resolution: 1920×1080 (Full HD)
• Backlight: LED
• Brightness: 250 cd/㎡
• Contrast Ratio: 4000:1
• Display Colors: 16.7M (8-bit)
• Viewing Angle: 178° (Horizontal) / 178° (Vertical)
• Response Time (Typical): 5 ms
• Refresh Rate: 100 Hz
Signal Interfaces
• Input Ports: VGA ×1, HDMI ×1
• Output Ports: Audio Out ×1
General Specifications
• Power Supply: AC 100~240V, 50/60 Hz
• Power Consumption: 25W (Standard), ≤0.5W (Standby)
• Power Type: Internal
• Net Weight: 3 kg (6.6 lb)
• Gross Weight: 4 kg (8.8 lb)
• Bezel Width: 3.8 mm (Top), 3.7 mm (Left/Right), 11 mm (Bottom)
• Wall Mount: 75 × 75 mm (3.0" × 3.0")
• Dimensions (W×H×D): 541 × 317 × 42 mm (21.3" × 12.5" × 1.7")
• Package Dimensions (W×H×D): 613 × 441 × 112 mm (24.1" × 17.4" × 4.4")
Operating Environment
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Operating Humidity: 10% ~ 85% RH
Accessories
• Included: HDMI Cable, Power Cable, Base
• Optional: Gas Spring Desk Bracket
Certifications
• CE
• FCC
