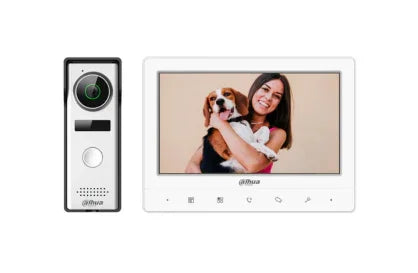

Dahua 4-Wire 7-inch Indoor Monitor Intercom Kit DHI-KTA02

Key Features

• 7-inch TFT indoor monitor
• Analog video intercom system
• 1.3MP outdoor station camera
• Video call and voice call support
• Local unlock function
• Volume adjustment support
• Multiple bell sounds
• DWDR support
• IR night vision support
• Supports 2 door stations and 3 indoor monitors
• Surface mount installation
• IP66 rated outdoor station
• Datasheet

Indoor Monitor – VTH1020J

Display

Display Size: 7-inch TFT
Resolution: 1024 × 600
Status Indicator: Green power indicator

Functions

Communication Mode: Analog
Video Intercom Functions: Unlock, Voice Call, Video Call, Volume Adjustment
Multiple Bell Sounds: Supported

General

Button Type: Touch Button
Casing Material: PC + ABS
Power Supply: DC 12V / 1A
Installation: Surface Mount
Operating Temperature: –10 °C to +55 °C
Power Consumption: ≤2 W standby / ≤5 W working
Dimensions: 133.9 × 182.7 × 17.7 mm
Color: White

Door Station – VTO1000J

Camera

Image Sensor: 1.3MP CMOS
Field of View: Horizontal 70°, Vertical 40°
WDR: DWDR
Illuminator Type: Auto IR
Day/Night Mode: ICR Auto Switch

Audio

Audio Input: Microphone with 0.5 m pickup distance
Audio Output: Built-in speaker
Communication Mode: Analog

Functions

Unlock Mode: Local Unlock

Ports

Exit Button: 1
Door Status Detection: 1

General

Button Type: Mechanical
Casing Material: PC + ABS
Power Supply: Powered by Indoor Monitor
Installation: Surface Mount
Protection Rating: IP66
Operating Temperature: –30 °C to +60 °C
Power Consumption: ≤1 W standby / ≤3 W working
Dimensions: 131.45 × 46 × 33.8 mm
Color: Silver
