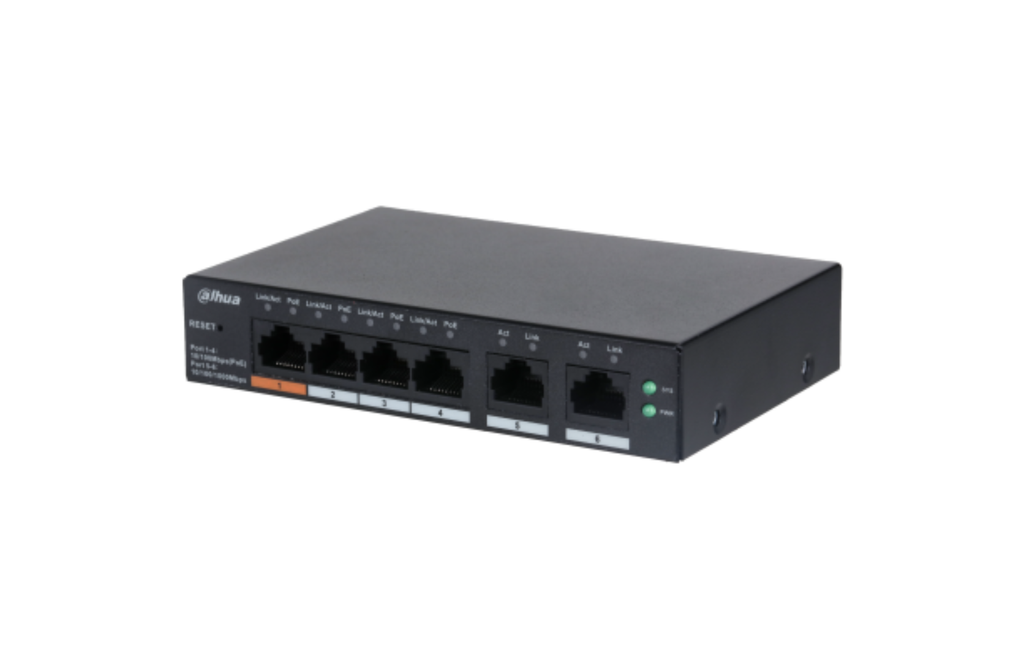

Dahua 6-Port CS4006-4ET-60 Cloud Managed Desktop Switch with 4-Port PoE

Key Features

• Meets IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab standards

• Supports IEEE802.3af / IEEE802.3at / Hi-PoE power supply

• Intelligent PoE with power consumption management & PoE on/off

• Full metal, fully-enclosed, dust-proof design

• Wide operating temperature range

• Cloud managed / Web managed / App managed

• Datasheet

---

Hardware

• Included Power Adapter: Yes

• PoE: Yes

• Ethernet Ports: 4 × RJ-45 (10/100 Mbps)

• Uplink Ports: 2 × RJ-45 (10/100/1000 Mbps)

• Function Slots: Port 1–4 PoE; Port 5–6 uplink

• Reset Button: 1

• Power Supply: 53 VDC, 1.226 A (external)

• Operating Temp: –10 °C to +55 °C

• Operating Humidity: 5%–95% RH (non-condensing)

• Storage Temp: –40 °C to +70 °C

• Storage Humidity: 5%–95% RH (non-condensing)

• Power Consumption: ≤3 W (idle), 65 W (full load)

---

Performance

• Layer: L2

• Smart Managed Switch: Yes

• MTBF: 232.62 years

• Switching Capacity: 4.8 Gbps

• Packet Forwarding Rate: 3.57 Mpps

• Packet Buffer: 4 Mbit

• Jumbo Frame: 9216 bytes

• MAC Table: 8K

• VLAN Support: 32 VLANs

• Standards: IEEE802.3 / 802.3u / 802.3x / 802.3ab

---

PoE Features

• PoE Protocol: IEEE802.3af / IEEE802.3at / Hi-PoE

• PoE Power Budget: Total ≤ 60 W

• Per-Port Power:

  • Port 1: ≤ 60 W

  • Port 2–4: ≤ 30 W each

• PoE Power Management: Yes

• PoE Pinout: 1,2,4,5 (V+), 3,6,7,8 (V–)

• Long-Distance PoE: Supported

---

Functions

• VLAN: Port-based VLAN

• Flow Control: IEEE 802.3x

• DHCP: DHCP Client

• Management: Web UI & Mobile App

---

Protection

• ESD Protection:

  • Air: 8 kV

  • Contact: 6 kV

• Lightning Protection:

  • Common mode: 4 kV

  • Differential mode: 2 kV

---

Physical

• Net Weight: 0.28 kg

• Gross Weight: 0.92 kg

• Product Size: 130 × 90 × 26 mm

• Packaging Size: 265 × 238 × 76 mm

• Material: Sheet metal

• Installation: Desktop or wall mount
