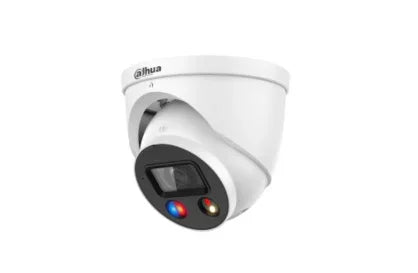

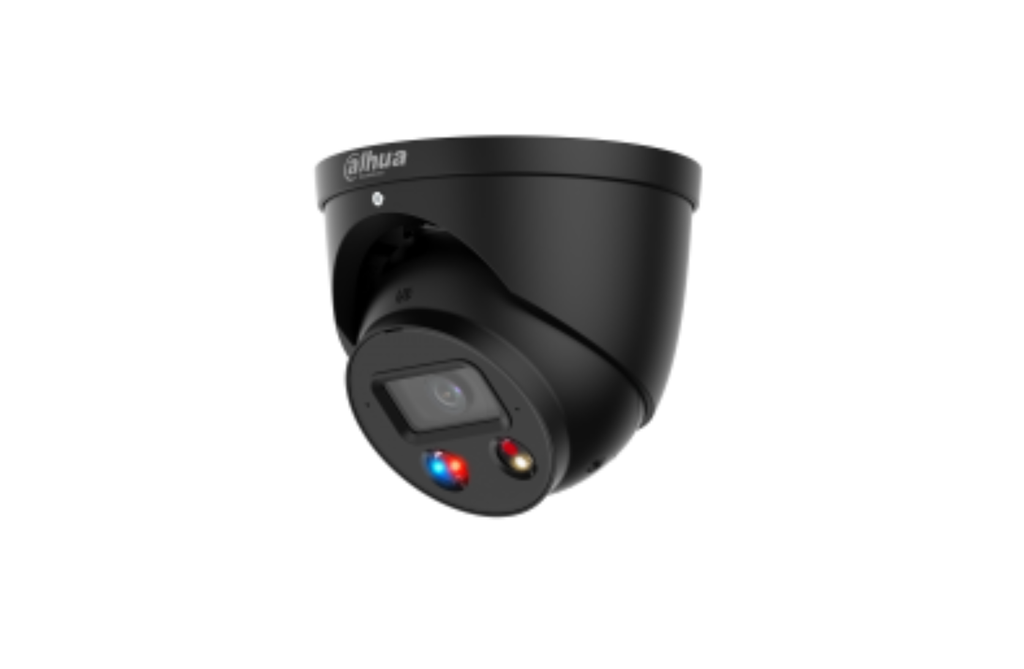

Dahua 6MP TIOC 2.0, DH-IPC-HDW3649H-AS-PV-ANZ, Fixed IP Security Camera with 2.8mm, Full Colour & Active Deterrence

Key Features:

• 6MP 1/2.7" CMOS image sensor, low luminance, high definition image

• Outputs max. 6MP (3072 × 2048) @ 25/30 fps

• H.265 codec, high compression rate, ultra-low bit rate

• Built-in warm light and IR LED (up to 30 m)

• ROI, Smart H.264+/H.265+, AI H.264/H.265 coding

• WDR, 3D NR, HLC, BLC, digital watermarking

• Intelligent functions: Intrusion, Tripwire (vehicle/human classification)

• Abnormality detection: Motion, privacy masking, scene change, audio, SD card status, network, voltage, illegal access

• Alarm I/O: 1 input, 1 output

• Audio: 1 input, 1 output, built-in dual mic, 1-ch speaker, supports two-way talk

• Supports up to 256GB Micro SD card

• Sound and light alarm (red & blue lights)

• SMD 4.0, AI SSA, one-tap arming/disarming

• 12V DC / PoE power supply

• IP67 weatherproof rating

---

Camera Specifications:

• Image Sensor: 1/2.7" CMOS

• Max. Resolution: 3072 × 2048

• ROM: 256MB | RAM: 1GB

• Min. Illumination:

  • 0.003 lux@F1.0 (Color)

  • 0.0003 lux@F1.0 (B/W)

  • 0 lux (IR on)

• Illumination Distance: IR/Warm Light up to 30 m

• Angle Adjustment: Pan 0°–360°, Tilt 0°–78°, Rotation 0°–360°

---

Lens Options:

• Type: Fixed-focal

• Mount: M12

• Focal Length: 2.8 mm / 3.6 mm

• Max. Aperture: F1.0

• FOV:

  • 2.8 mm: H: 97°, V: 70°, D: 128°

  • 3.6 mm: H: 78°, V: 58°, D: 102°

• Close Focus:

  • 2.8 mm: 1.5 m

  • 3.6 mm: 2.2 m

---

DORI Distance (Detect/Observe/Recognize/Identify):

• 2.8 mm: 66 m / 26.4 m / 13.2 m / 6.6 m

• 3.6 mm: 78 m / 31.2 m / 15.6 m / 7.8 m

---

AI Features:

• IVS: Intrusion, Tripwire (vehicle/human classification)

• SMD 4.0

• AcuPick: Fast target search (person/vehicle)

• AI SSA: Auto image optimization

• Smart Search with Smart NVR

---

Video Specifications:

• Compression: H.265, H.264, MJPEG (sub-stream only)

• Smart Codec: H.265+, H.264+

• AI Coding: AI H.265/H.264 (≥25% compression)

• Frame Rate:

  • Main: 3072 × 2048 @ 25/30 fps

  • Sub: 704 × 576 @ 25 fps / 704 × 480 @ 30 fps

  • Third: 1920 × 1080 @ 25/30 fps

• Streams: 3 streams

• Resolutions:

  • 6M, 5M, 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF

• Bit Rate Control: CBR / VBR / ABR

• Bit Rate: H.264/H.265: 3 kbps–16384 kbps

• Day/Night: Auto (ICR) / Color / B/W

• WDR: 120 dB

• Image Enhancements: BLC, HLC, 3D NR, SSA, RoI, Defog, Mirror, LDC, Privacy Mask (4 areas), Image Rotation

---

Audio:

• Built-in Mic & Speaker

• Audio In/Out: 1 RCA each

• Audio Formats: PCM, G.711a/u, G.726, G.723

---

Alarm Functions:

• Events: Motion, intrusion, tripwire, scene change, tampering, audio, intensity change, voltage, SD card issues, network issues, illegal access, external alarm

• I/O: 1 input (wet contact), 1 output (wet contact)

---

Network:

• Port: 1 × RJ-45 (10/100 Base-T)

• Protocols: IPv4/6, HTTP, TCP, UDP, RTSP, SMTP, FTP, SFTP, NTP, SNMP, P2P, etc.

• Interoperability: ONVIF (Profiles S/G/T), CGI

• Max Users: 20 (64 Mbps total)

• Storage: FTP/SFTP, Micro SD (max. 256GB), NAS

• Browser Support: IE9/11, Chrome, Firefox

• Software: Smart PSS Lite, DSS, DMSS

• Mobile App: iOS, Android

---

Cybersecurity:

• Video/firmware/config encryption, account lockout, security logs, X.509 certs, HTTPS, 802.1x, trusted boot/execution/upgrade

---

Certifications:

• CE-LVD: EN 62368-1

• CE-EMC: 2014/30/EU

---

Power:

• Supply: 12 VDC / PoE

• Consumption:

  • Basic: 3.7 W (DC), 4.8 W (PoE)

  • Max: 8.3 W (DC), 8.8 W (PoE) (with full features active)

---

Environmental:

• Operating Temp: –40°C to +60°C (–40°F to +140°F)

• Humidity: ≤95% RH

• Protection: IP67

---

Physical:

• Material: Metal housing

• Dimensions: Ø122 × 110.9 mm (Ø4.80" × 4.37")

• Net Weight: 0.75 kg (1.65 lb)

• Gross Weight: 0.92 kg (2.03 lb)
