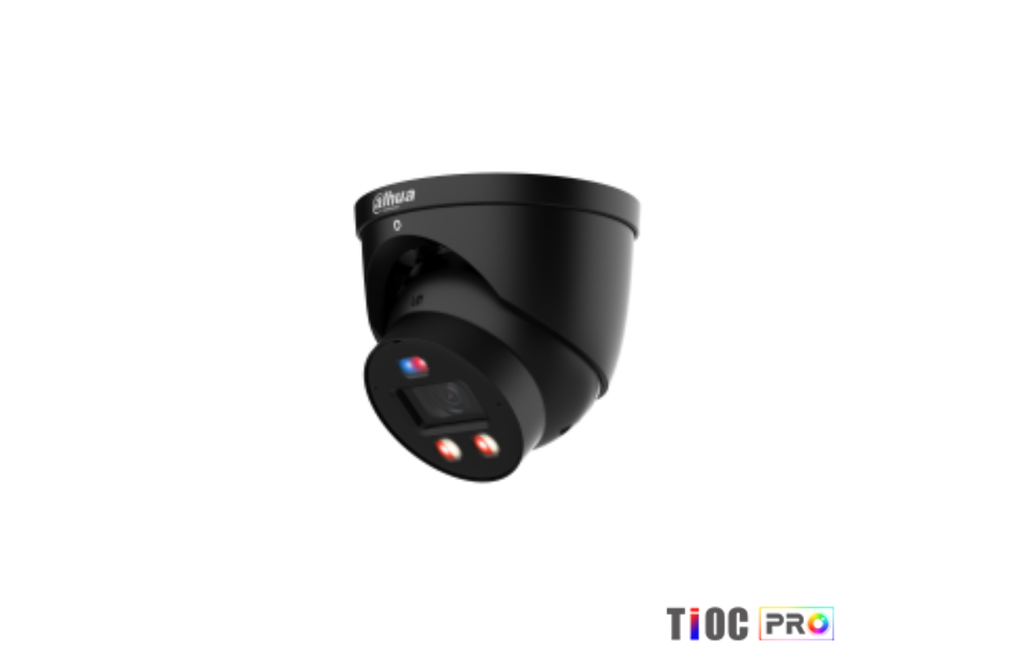

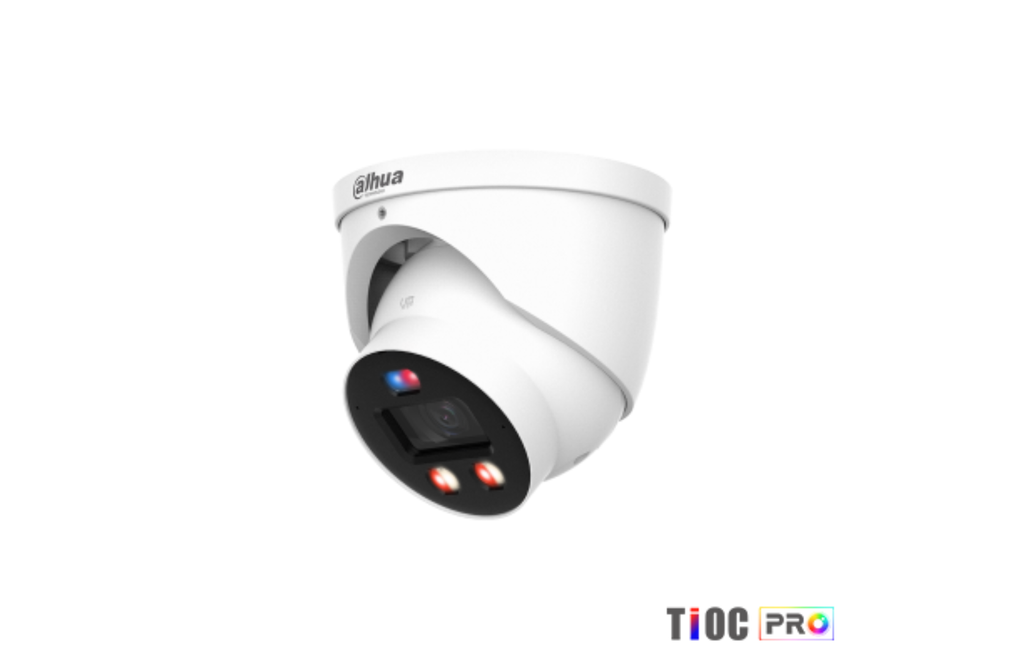

6MP Smart Dual Light Active Deterrence Fixed-Focal Eyeball WizSense Network Camera

Key Features

• 6-MP 1/1.8" CMOS image sensor delivering low-light, high-definition images

• Max. output 6 MP (3288 × 1850) @ 25/30 fps

• H.265 high-compression codec with ultra-low bit rate

• Built-in multi-core IR and warm light (30 m range for both)

• ROI, Smart H.264+/H.265+, AI H.264/H.265 coding

• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking

• Intelligent monitoring: intrusion, tripwire (vehicle & human classification)

• Abnormality detection: motion, privacy masking, scene change, audio detection, SD card issues, network disconnection, IP conflict, illegal access, voltage detection

• Alarm I/O: 1 in / 1 out

• Audio: 1 in / 1 out; dual microphones; 1-channel speaker; two-way talk

• Supports Micro SD card up to 512 GB

• 12 VDC / PoE power supply

• IP67 weather protection

• Red/blue sound & light active deterrence

• SMD 4.0, AI SSA, and one-tap arming/disarming

• Warm-light SMD trigger area can be customised

---

Camera Specifications


• Image Sensor: 1/1.8" CMOS

• Max Resolution: 3288(H) × 1850(V)

• ROM: 256 MB

• RAM: 1 GB

• Scanning: Progressive

• Electronic Shutter: Auto/Manual 1/3 s–1/100,000 s

• Minimum Illumination:

  • 0.0002 lux @ F1.0 (Color, 30 IRE)

  • 0.0001 lux @ F1.0 (B/W, 30 IRE)

  • 0 lux with illuminator on

• S/N Ratio: >56 dB

• IR Distance: Up to 30 m

• Warm Light Distance: Up to 30 m

• Illuminator Control: Auto / Manual

• Illuminator Type: 2 × multi-core IR + warm light

Angle Adjustment

• Pan: 0°–360°

• Tilt: 0°–78°

• Rotation: 0°–360°

---

Lens

• Lens Type: Fixed-focal

• Mount: M16

• Focal Length Options: 2.8 mm / 3.6 mm

• Aperture: F1.0

Field of View

• 2.8 mm: H 109° / V 59° / D 131°

• 3.6 mm: H 93° / V 50° / D 111°

Close Focus Distance

• 2.8 mm: 3.2 m

• 3.6 mm: 4.4 m

DORI

• 2.8 mm:

  • Detect: 70.2 m

  • Observe: 28.1 m

  • Recognize: 14.0 m

  • Identify: 7.0 m

• 3.6 mm:

  • Detect: 85.6 m

  • Observe: 34.3 m

  • Recognize: 17.1 m

  • Identify: 8.6 m

---

Intelligence Features

Perimeter Protection (IVS)

• Intrusion

• Tripwire (vehicle & human classification)

• Stay detection

• Loitering detection

Face Detection (Full Image)

• Face detection & snapshots

• Optimised snapshots

• One-inch photo format

• Face enhancement & angle filtering

• Real-time / quality-priority / optimised strategies

SMD

• SMD 4.0

AcuPick

• Deep-learning based people/vehicle matching in recordings

AI SSA

• Auto image optimisation based on scene conditions

Smart Search

• Works with Smart NVR for refined event search & extraction

---

Video

• Compression: H.265 / H.264 / H.264H / H.264B / MJPEG (sub stream only)

• AI Coding: AI-H.265 / AI-H.264

• Main Stream: 3288 × 1850 @ 1–25/30 fps

• Sub Stream: 1920 × 1080 @ 1–25/30 fps

• Third Stream: 1920 × 1080 @ 1–25/30 fps

• Stream Capability: 3 streams

• Supported Resolutions:
  6M, 5M, 4M, 3M, 1080p, 720p, D1, VGA, CIF

• Bitrate Control: CBR / VBR / ABR

• Bitrate: 3 kbps – 16384 kbps

• Day/Night: Auto (ICR) / Color / B/W

• WDR: 120 dB

• Gain Control, 3D NR, BLC, HLC, Defog

• Image Rotation: 0° / 90° / 180° / 270°

• Privacy Masking: 8 areas

• Smart Illumination & Smart Dual Light supported

---

Audio

• Built-in Dual Microphones

• Built-in Speaker (110 dB @ 10 cm; 2 W max)

• Audio Formats: PCM, G.711a/U, G.726, G.723

---

Alarm

• Events: SD errors, network errors, intrusion, tripwire, loitering, face detection, audio detection, voltage detection, SMD and more

• Alarm In: 1 (wet contact, 5 mA 3–5 VDC)

• Alarm Out: 1 (wet contact, 300 mA 12 VDC)

• Audio In: 1 × RCA

• Audio Out: 1 × RCA

---

Network

• Port: RJ-45 (10/100 Base-T)

• Protocols: IPv4/IPv6, HTTP, TCP/UDP, RTP/RTSP/RTMP, SMTP, FTP/SFTP, DHCP, DDNS, QoS, UPnP, NTP, IGMP, PPPoE, SNMP, P2P and more

• Interoperability: ONVIF (S/G/T/M), CGI

• Users: 20 (64 Mbps total bandwidth)

• Storage: FTP, SFTP, NAS, Micro SD up to 512 GB

• Browser Support: IE11, Chrome, Firefox

• Software: SmartPSS Lite, DSS, DMSS, DoLynk Care

• Mobile: iOS, Android

• Security: Digest, WSSE, HTTPS, X.509, IP/MAC filtering, account lockout, secure boot/upgrade

---

Power

• Power Supply: 12 VDC or PoE

• Dual Power Backup: continues operating if one source is disconnected

• Power Consumption:

  • Basic: 4.1 W (12 VDC) / 6 W (PoE)

  • Max (WDR + warm light + deterrence + intelligence): 8.2 W (12 VDC) / 10 W (PoE)

---

Environment

• Operating Temp: –40 °C to +60 °C

• Humidity: ≤95%

• Protection: IP67

---

Physical

• Casing: Metal

• Dimensions: Ø122.0 mm × 116.1 mm

• Net Weight: 0.8 kg

• Gross Weight: 1.0 kg
