Description

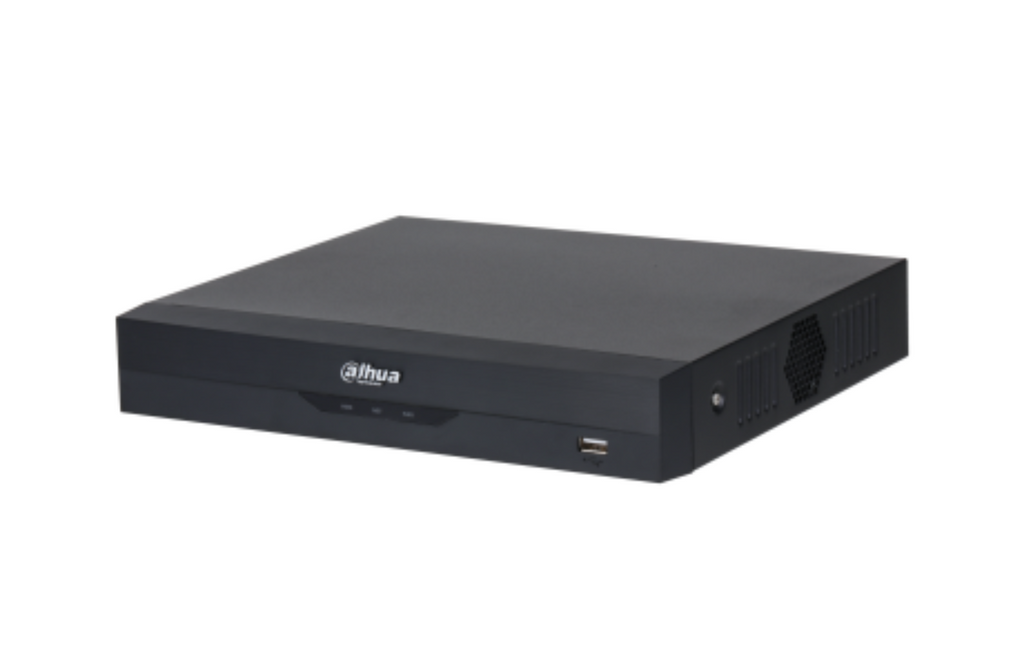

XVR5108HS-4KL-I3
8CH Penta-brid 4K Value/5MP Compact 1U 1HDD WizSense Digital Video Recorder
Key Features
-
2-channel QuickPick 2.0 (Analog): Improves efficiency of target retrieval.
 -
1-channel Privacy Protection (Analog): Supports masking and restoring detected human faces in real time.
 -
8-channel SMD Plus (Analog) / 16-channel SMD (by Camera): Accurate alarms for humans and vehicles.
 -
8-channel Perimeter Protection (Analog): Tripwire and intrusion detection powered by AI.
 -
2-channel Face Recognition (Analog): Supports face comparison.
 -
8-channel AI Coding: Saves storage and bandwidth while maintaining target details.
 -
Video Input: Supports HDCVI, AHD, TVI, CVBS, and IP.
 -
IP Camera Input: Up to 16 channels, each up to 8 MP; 128 Mbps incoming bandwidth.
 -
Compression: Smart H.265+ and H.265 dual-stream.

System
-
Main Processor: Industrial-grade processor
 -
Operating System: Embedded Linux
 -
Interface: Web, Local GUI

AI Functions
-
QuickPick 2.0: 2 channels (AI by recorder)
 -
Perimeter Protection:
-
Advanced Mode: 2 channels, 10 IVS rules each
 -
General Mode: 8 channels, 10 IVS rules each

 -
 -
Face Detection: 2 channels (up to 12 face images/s per channel), 6 attributes
 -
Privacy Protection: 1 channel
 -
Face Recognition: 2 channels, up to 10 databases / 20,000 images
 -
SMD Plus:
-
By Recorder: 8 channels (human/vehicle filtering)
 -
By Camera: 16 channels

 -
 -
Video Quality Analytics: 8 channels (brightness, color cast, defocus, overexposure, contrast, B/W)
 -
Scene Changing: 1 channel
 -
Irregular Black Block Masking: 1 channel
 -
EPTZ: 1 channel

Audio & Video
-
Analog Inputs: 8 × BNC (HDCVI/AHD/TVI/CVBS auto-detect)
 -
IP Inputs: Up to 16 channels (8 default + 8 via analog-to-IP conversion), 128 Mbps bandwidth
 -
Encoding Capacity:
-
Multiple resolutions up to 4K; frame rates vary by channel and enhancement mode
 -
Sub stream: D1/CIF/960H

 -
 -
Dual-stream: Yes
 -
Video Bitrate: 32 kbps–6144 kbps
 -
Audio Sampling: 8 kHz, 16-bit
 -
Audio Bitrate: 64 kbps
 -
Video Output: 1 HDMI (up to 4K), 1 VGA
 -
Multi-screen:
-
Non-IP extension: 1/4/8/9
 -
IP extension: 1/4/8/9/16

 -

Compression
-
Video: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
 -
Audio: G.711a, G.711u, PCM

Network
-
Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
 -
Mobile Access: iOS, Android
 -
Interoperability: ONVIF 24.06 (Profiles T/S/G), CGI, SDK
 -
Browsers: Chrome, IE, Safari, Edge, Firefox

Recording & Playback
-
Modes: General, alarm, motion, intelligent, POS
 -
Playback: 1/4/9 channels, instant/event/tag/smart playback
 -
Backup: USB, network

Alarm
-
General: Motion, alarm box, HDCVI alarm, external, network, PIR
 -
Anomaly: Disk (no disk, error, low space), network errors, IP/MAC conflict, video loss, tampering, offline
 -
Intelligent: Face detection/recognition, perimeter, SMD Plus
 -
Linkage: Record, snapshot, alarm output, audio, buzzer, preset, log, email

Ports
-
Audio In: 1 × RCA + 8 × BNC (coaxial)
 -
Audio Out: 1 × RCA
 -
Two-way Talk: Yes (shared with 1st input)
 -
Disk Interface: 1 × SATA (up to 16 TB)
 -
RS-485: 1
 -
USB: 2 (1 × USB 2.0 front, 1 × USB 3.0 rear)
 -
HDMI: 1
 -
VGA: 1
 -
Network: 1 × RJ-45 (10/100/1000 Mbps)

General
-
Power Supply: 12 VDC, 2 A
 -
Consumption: <10 W (without HDD)
 -
Net Weight: 1.00 kg
 -
Gross Weight: 1.40 kg
 -
Dimensions: 260 × 237.8 × 47.6 mm (W × D × H)
 -
Packaging: 333 × 89 × 315 mm
 -
Operating Temp: –10 °C to +55 °C
 -
Storage Temp: –20 °C to +60 °C
 -
Humidity: 10%–90% (non-condensing)
 -
Installation: Desktop

Certifications
-
CE: EN 60950-1/IEC 60950-1, EN 61000-3-2/3-3, EN 55032/55024/50130
 -
FCC: Part 15 Subpart B
