Description

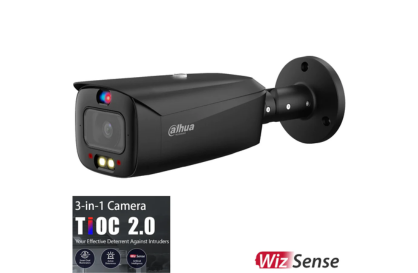

8MP Smart Dual Illumination Active Deterrence Fixed-focal Bullet WizSense Network Camera
-
8MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
 -
Outputs max. 8 MP (3840 × 2160) @ 25/30 fps.
 -
H.265 codec with high compression rate and ultra-low bit rate.
 -
Built-in warm light and IR LED; maximum IR illumination distance of 30 m and warm light distance of 30 m.
 -
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, suitable for various bandwidth and storage environments.
 -
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking; applicable to various monitoring scenes.
 -
Intelligent monitoring includes intrusion and tripwire, supporting classification and accurate detection of vehicles and humans.
 -
Abnormality detection features motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
 -
Alarm: 1 input, 1 output; Audio: 1 input, 1 output; supports up to 256 GB Micro SD card; built-in dual MICs; 1-channel speaker; supports two-way talk.
 -
Powered by 12 VDC or PoE.
 -
IP67 protection rating.
 -
Sound and light alarm with red and blue lights.
 -
Supports SMD 3.0.
 -
One-click arming/disarming through alarm input.
 - Datasheet

Camera
Image Sensor
1/2.8" CMOS
Max. Resolution
3840 (H) × 2160 (V)
ROM
128 MB
RAM
512 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.004 lux @ F1.0 (Color, 30 IRE)
0.0004 lux @ F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio
56 dB
Illumination Distance
30 m (98.43 ft) IR
30 m (98.43 ft) Warm light
Illuminator On/Off Control
Auto / Manual
Illuminator Number
2 IR LEDs
2 Warm lights
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
2.8 mm; 3.6 mm
Field of View
2.8 mm: Horizontal 106°, Vertical 55°, Diagonal 125°
3.6 mm: Horizontal 85°, Vertical 45°, Diagonal 100°
Iris Type
Fixed
Close Focus Distance
2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (9.19 ft)
DORI Distance (Detect / Observe / Recognize / Identify)
-
2.8 mm: 91.0 m / 36.4 m / 18.2 m / 9.1 m
 -
3.6 mm: 107.6 m / 43.0 m / 21.5 m / 10.8 m

Note: DORI is a standard (EN-62676-4) defining the ability to distinguish persons or objects.
Professional, Intelligent Features
-
IVS (Perimeter Protection): Tripwire, intrusion with vehicle and human classification
 -
SMD 3.0: Reduced false alarms and longer detection distance
 -
Intelligent Search: Works with Smart NVR for refined search, event extraction, and video merging

Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec
Smart H.265+; Smart H.264+
AI Coding
AI H.265; AI H.264
Video Frame Rate
-
Main stream: 3840 × 2160 @ 1–30 fps
 -
Sub stream: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
 -
Third stream: 1920 × 1080 @ 1–30 fps
(Max frame rates apply per stream; total encoding capacity applies for multiple streams)
Stream Capability
3 streams
Resolution Options
8M (3840 × 2160), 6M (3072 × 2048), 5M (3072 × 1728 / 2592 × 1944), 4M (2688 × 1520), 3M (2048 × 1536 / 2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240)
Bit Rate Control
CBR / VBR
Video Bit Rate
H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps
Day/Night
Auto (ICR) / Color / B/W
BLC / HLC / WDR
Yes / Yes / 120 dB
Scene Self-adaptation
Yes
White Balance
Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control
Auto / Manual
Noise Reduction
3D NR
Motion Detection
Off / On (4 areas)
Region of Interest (RoI)
Yes (4 areas)
Smart Illumination
Yes
Defog
Yes
Image Rotation
0° / 90° / 180° / 270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror
Yes
Privacy Masking
8 areas
Alarm
Alarm Events
No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, scene changing, audio detection, voltage detection, external alarm, SMD, security exception
Network
Network Port
RJ-45 (10/100 Base-T)
SDK and API
Yes
Cyber Security
Video encryption, firmware encryption, configuration encryption, Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certification, syslog, HTTPS, 802.1x, trusted boot, trusted execution, trusted upgrade
Protocol
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
Interoperability
ONVIF (Profile S, G, T), CGI, P2P, Milestone
User/Host Capacity
20 (Total bandwidth: 72 Mbps)
Storage
FTP, SFTP, Micro SD card (max 256 GB), NAS
Browser Support
IE 8/9/11, Chrome, Firefox
Management Software
Smart PSS, DSS, DMSS
Mobile Phone Support
iOS, Android
Certification
-
CE-LVD: EN 62368-1
 -
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
 -
FCC: 47 CFR FCC Part 15, Subpart B
 -
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Ports
-
Audio Input: 1 channel (RCA port)
 -
Audio Output: 1 channel (RCA port)
 -
Alarm Input: 1 channel in, 5 mA, 3–5 VDC
 -
Alarm Output: 1 channel out, 300 mA, 12 VDC

Power
-
Power Supply: 12 V DC / PoE (802.3af)
 -
Power Consumption:
Basic: 3.1 W (12 VDC); 4.3 W (PoE)
Max (H.265 + main stream / IR intensity + warm light on): 8.6 W (12 VDC); 11 W (PoE)
Environment
-
Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F), less than 95% RH
 -
Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
 -
Protection Grade: IP67

Structure
-
Casing: Metal + plastic
 -
Dimensions: 288.4 mm × 94.4 mm × 84.7 mm (11.4" × 3.7" × 3.3") (L × W × H)
 -
Net Weight: 1.0 kg (2.20 lb)
 -
Gross Weight: 1.23 kg (2.71 lb)
