Description

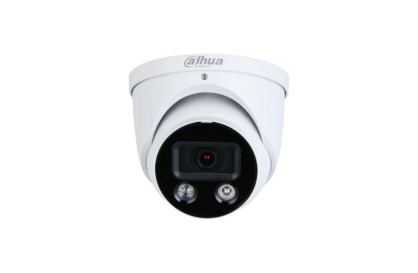

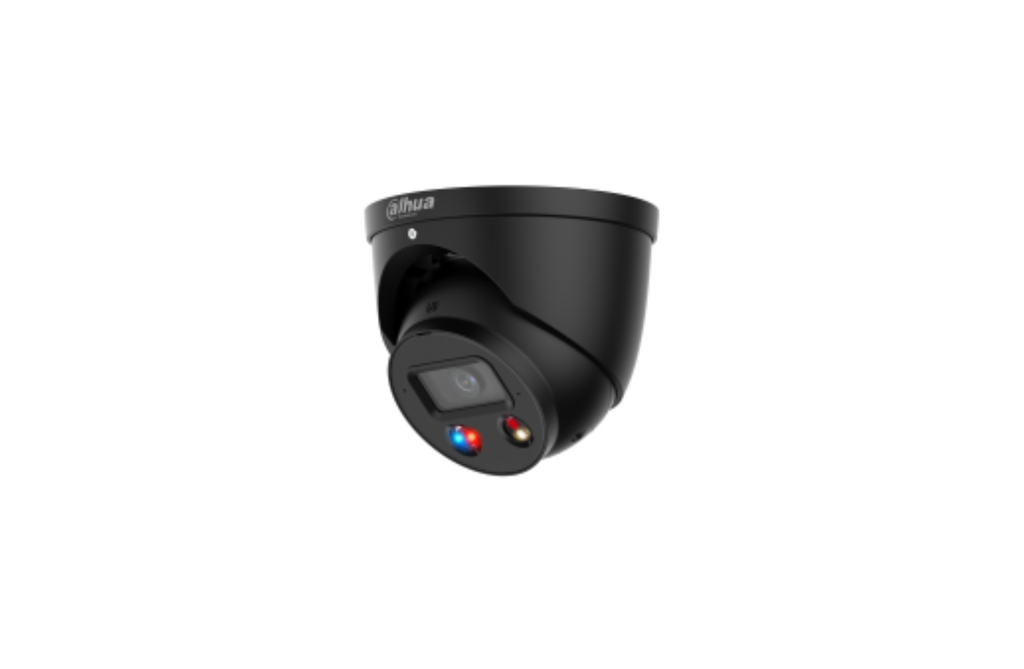

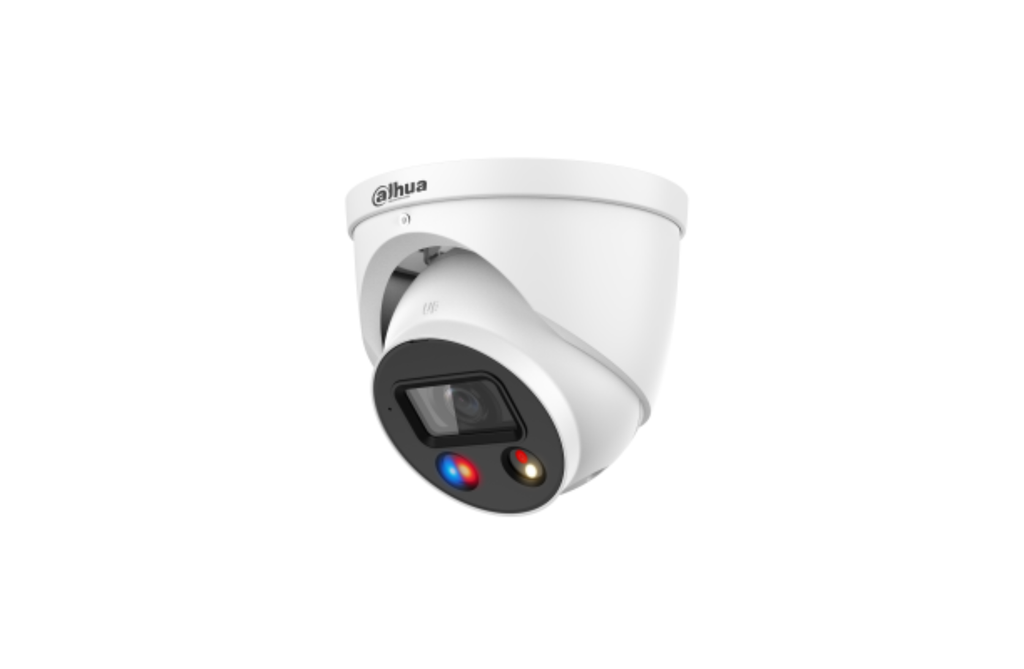

8MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera
Key Features
-
8MP 1/2.7" CMOS, low-light, high-definition imaging
-
Max. output: 8MP (3840 × 2160) @ 25/30 fps
-
H.265 with ultra-low bit rate; Smart H.264+/H.265+; AI H.264/H.265
-
Built-in warm light + IR LED (up to 30 m each)
-
WDR, 3D NR, HLC, BLC, rotation mode, digital watermarking
-
IVS: Intrusion & Tripwire with human/vehicle classification
-
Abnormality detection: motion, privacy masking, scene change, audio, SD status, network/IP issues, illegal access, voltage detection
-
Active deterrence: red/blue sound & light alarm, dual mics, 1-ch speaker, two-way talk; one-tap arming/disarming
-
I/O: Alarm 1 in / 1 out; Audio 1 in / 1 out
-
Supports Micro SD up to 256 GB
-
12 VDC / PoE, IP67 protection
-
SMD 4.0, AI SSA, configurable SMD warm-light areas
Camera
-
Image Sensor: 1/2.7" CMOS
-
Max. Resolution: 3840 (H) × 2160 (V)
-
ROM / RAM: 256 MB / 2 GB
-
Scanning: Progressive
-
Shutter: Auto/Manual 1/3 s – 1/100,000 s
-
Min. Illumination: 0.004 lx @ F1.0 (Color, 30 IRE); 0.0004 lx @ F1.0 (B/W, 30 IRE); 0 lx (illuminator on)
-
S/N Ratio: > 56 dB
-
Illumination Distance: IR up to 30 m; Warm light up to 30 m
-
Illuminator Control/Qty: Auto / Manual; 1 × IR LED, 1 × Warm light
-
Angle Adjustment: Pan 0°–360°; Tilt 0°–78°; Rotation 0°–360°
Lens
-
Type / Mount: Fixed-focal / M12
-
Focal Length: 2.8 mm; 3.6 mm
-
Max. Aperture: F1.0
-
Field of View:
-
2.8 mm: H 106°; V 55°; D 125°
-
3.6 mm: H 85°; V 45°; D 102°
-
-
Iris: Fixed
-
Close Focus: 2.8 mm: 1.5 m (4.92 ft) | 3.6 mm: 2.2 m (7.22 ft)
DORI Distance (EN-62676-4)
| Lens | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
| 2.8 mm | 66.0 m (216.54 ft) | 26.4 m (86.61 ft) | 13.2 m (43.31 ft) | 6.6 m (21.65 ft) |
| 3.6 mm | 78.0 m (255.91 ft) | 31.2 m (102.36 ft) | 15.6 m (51.18 ft) | 7.8 m (25.59 ft) |
DORI defines the distance at which a viewer can Detect/Observe/Recognize/Identify subjects; intelligent function distances may differ.
Intelligence
-
IVS (Perimeter): Intrusion, Tripwire (human/vehicle classification)
-
SMD: SMD 4.0
-
AcuPick: Deep-learning target search (people/vehicles) with back-end devices
-
AI SSA: Scene self-adaptation via deep learning
-
Smart Search: Works with Smart NVR for refined search, event extraction & merging
Video
-
Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub-stream only)
-
Smart Codec: Smart H.265+ / Smart H.264+
-
AI Coding: AI H.265 / AI H.264 (compression rate ≥ 25%)
-
Frame Rate:
-
Main: 3840 × 2160 @ 1–25/30 fps
-
Sub: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
-
Third: 1920 × 1080 @ 1–25/30 fps
-
-
Streams: 3
-
Resolutions: 8M (3840×2160); 6M (3072×2048); 5M (3072×1728 / 2592×1944); 4M (2688×1520 / 2560×1440); 3M (2048×1536 / 2304×1296); 1080p; 1.3M (1280×960); 720p; D1; VGA; CIF
-
Bitrate Control: CBR / VBR / ABR
-
Bitrate: H.264: 3–16384 kbps; H.265: 3–16384 kbps
-
Day/Night: Auto (ICR) / Color / B/W
-
Image Enhancements: WDR 120 dB, BLC, HLC, 3D NR, Defog, LDC, Smart Illumination, RoI (4 areas)
-
Motion Detection: 4 rectangular areas
-
Rotation / Mirror: 0°/90°/180°/270° (90°/270° up to 2688×1520); Mirror: Yes
-
Privacy Masking: 4 areas
Audio & Active Deterrence
-
Built-in Mic: Dual microphones
-
Built-in Speaker: Yes
-
Two-way Talk: Supported
-
Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723
-
Sound & Light Alarm: Red/blue lights + siren
Alarms & Events
-
Alarm Events: No/Full/Error SD; network disconnection; IP conflict; illegal access; motion; tamper; tripwire; intrusion; scene change; audio detection; intensity change; voltage detection; external alarm; SMD; security exception
-
I/O: Alarm 1 in (wet, 5 mA 3–5 VDC) / 1 out (wet, 300 mA 12 VDC); Audio 1 in (RCA) / 1 out (RCA)
Network
-
Port: RJ-45 (10/100 Base-T)
-
Protocols: IPv4/IPv6, HTTP, TCP/UDP, ARP, RTP/RTSP/RTMP, RTCP, SMTP, FTP/SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P
-
Interoperability: ONVIF (Profiles S/G/T); CGI
-
Users/Hosts: 20 (total bandwidth 64 M)
-
Storage: FTP, SFTP, Micro SD (max. 256 GB), NAS
-
SDK & API: Yes
-
Browser: IE 9/11; Chrome; Firefox
-
Mgmt Software: Smart PSS Lite; DSS; DMSS
-
Mobile: iOS; Android
Cyber Security
Video/Firmware/Configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; X.509 certificate generation/import; syslog; HTTPS; 802.1x; trusted boot/execution/upgrade; session security; security warnings
Certification
-
CE-LVD: EN 62368-1
-
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Ports
-
Audio In/Out: 1 ch in (RCA) / 1 ch out (RCA)
-
Alarm In/Out: 1 ch in (wet, 5 mA 3–5 VDC) / 1 ch out (wet, 300 mA 12 VDC)
Power
-
Supply: 12 VDC; PoE
-
Consumption:
-
Basic: 4.5 W (12 VDC); 5.8 W (PoE)
-
Max: 8.6 W (12 VDC) / 10.1 W (PoE) (H.265 + WDR + warm light + siren/light deterrence + AI on)
-
Environment
-
Operating Temp: –40 °C to +60 °C (–40 °F to +140 °F)
-
Operating Humidity: ≤ 95% (non-condensing)
-
Protection: IP67
Structure
-
Casing: Metal
-
Dimensions: Φ122.0 mm × 110.9 mm (4.80" × Φ4.37")
-
Net / Gross Weight: 0.75 kg (1.65 lb) / 0.92 kg (2.03 lb)
