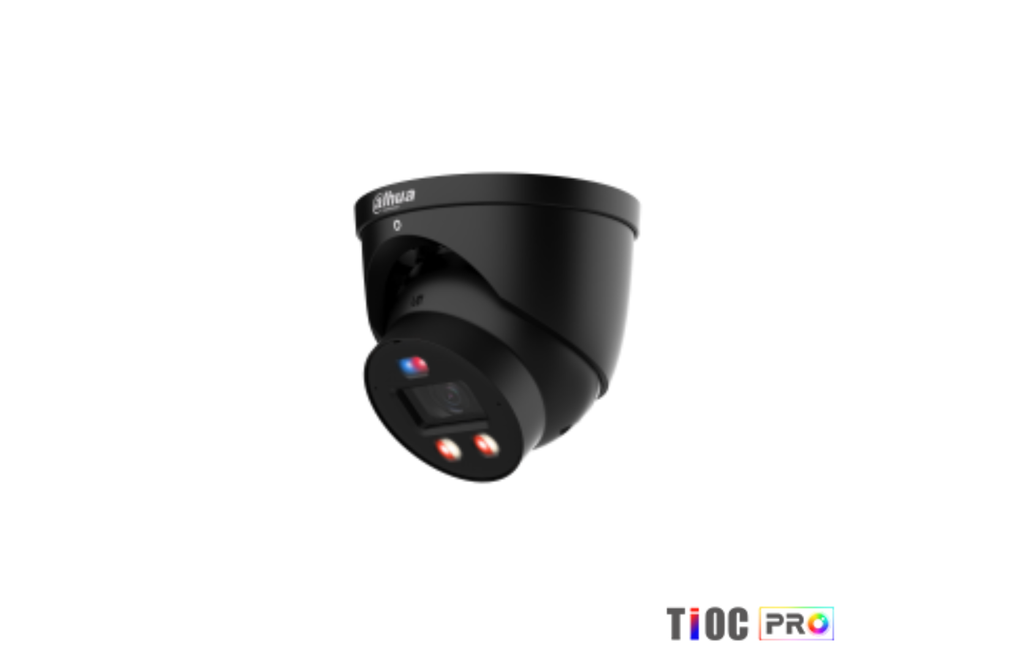

8MP Smart Dual Light Active Deterrence Fixed-Focal Eyeball WizSense Network Camera

Key Features

• 8-MP 1/1.8" CMOS image sensor delivering high-definition, low-light performance

• Max. output: 8 MP (3840 × 2160) @ 25/30 fps

• H.265 high-compression codec with ultra-low bit rate

• Built-in multi-core IR + warm light, up to 30 m illumination for both

• ROI, Smart H.264+/H.265+, AI H.264/H.265 for optimised bandwidth and storage

• WDR, 3D NR, HLC, BLC, rotation mode, digital watermarking

• Intelligent monitoring:

  • Intrusion

  • Tripwire

  • Vehicle & human classification

• Abnormality detection:

  • Motion

  • Privacy masking

  • Scene change

  • Audio detection

  • SD card errors

  • Network issues

  • Illegal access

  • Voltage detection

• Alarm I/O: 1 in, 1 out

• Audio I/O: 1 in, 1 out; built-in dual mics; built-in speaker; two-way talk

• Supports Micro SD card up to 512 GB

• Power: 12 VDC / PoE

• IP67 weather-rated

• Active deterrence with red/blue light and siren

• SMD 4.0 and AI SSA supported

• One-tap arming/disarming

• Customisable warm-light SMD trigger area

---

Camera Specifications


• Image Sensor: 1/1.8" CMOS

• Max Resolution: 3840(H) × 2160(V)

• ROM: 256 MB

• RAM: 1 GB

• Scanning: Progressive

• Electronic Shutter: 1/3 s – 1/100,000 s (Auto/Manual)

• Minimum Illumination:

  • 0.0004 lux @ F1.0 (Color, 30 IRE)

  • 0.0002 lux @ F1.0 (B/W, 30 IRE)

  • 0 lux (with illuminator)

• S/N Ratio: >56 dB

• IR Distance: Up to 30 m

• Warm-Light Distance: Up to 30 m

• Illuminator Control: Auto / Manual

• Illuminator Count: 2 (IR + warm light)

Angle Adjustment

• Pan: 0° – 360°

• Tilt: 0° – 78°

• Rotation: 0° – 360°

---

Lens

• Type: Fixed-focal

• Mount: M16

• Focal Lengths: 2.8 mm / 3.6 mm

• Max Aperture: F1.0

Field of View

• 2.8 mm: H 109° / V 59° / D 131°

• 3.6 mm: H 93° / V 50° / D 111°

Close Focus Distance

• 2.8 mm: 3.2 m

• 3.6 mm: 4.4 m

DORI Distances

2.8 mm

• Detect: 82.0 m

• Observe: 32.8 m

• Recognize: 16.4 m

• Identify: 8.2 m

3.6 mm

• Detect: 100.0 m

• Observe: 40.0 m

• Recognize: 20.0 m

• Identify: 10.0 m

---

Intelligence

Perimeter Protection (IVS)

• Intrusion

• Tripwire

• Stay detection

• Loitering detection

• Vehicle & human classification

Face Detection (Full Image)

• Face detection & snapshots

• Snapshot optimisation

• Enhanced/one-inch photo modes

• Angle filtering, quality strategies, optimisation timing

SMD

• SMD 4.0 (accurate human/vehicle detection)

AcuPick

• Deep-learning assisted target search

• Works with NVR for faster playback target matching

AI SSA

• Dynamic scene-adaptive image optimisation

Smart Search

• Smart NVR integration for advanced event extraction

---

Video

• Compression: H.265 / H.264 / H.264H / H.264B / MJPEG (sub-stream only)

• AI Coding: AI H.265 / AI H.264

• Main Stream: 3840 × 2160 @ 1–25/30 fps

• Sub Stream: 1920 × 1080 @ 1–25/30 fps

• Third Stream: 1920 × 1080 @ 1–25/30 fps

• Streams: 3 streams

• Supported Resolutions:
  8M, 6M, 5M, 4M, 3M, 1080p, 720p, D1, VGA, CIF

• Bitrate Control: CBR / VBR / ABR

• Bitrate Range: 3 kbps – 16384 kbps

• Day/Night: Auto (ICR) / Color / B/W

• WDR: 120 dB

• White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional

• Noise Reduction: 3D NR

• Smart Illumination & Dual Light supported

• Image Rotation: 0° / 90° / 180° / 270°

• Privacy Masking: 8 areas

---

Audio

• Built-in Dual Microphones

• Built-in Speaker (110 dB @ 10 cm, 2 W max)

• Audio Formats: PCM, G.711a/u, G.726, G.723

---

Alarm

Alarm Events

• SD card issues

• Network disconnection

• IP conflict

• Illegal access

• Motion detection

• Video tampering

• Intrusion / Tripwire

• Stay / Loitering

• Face detection

• Audio detection

• Scene change

• Voltage detection

• SMD events

• Security exception

Connections

• Alarm In: 1 (wet contact, 5 mA 3–5 VDC)

• Alarm Out: 1 (wet contact, 300 mA 12 VDC)

• Audio In: 1 × RCA

• Audio Out: 1 × RCA

---

Network

• Port: RJ-45 (10/100 Base-T)

• Protocols: IPv4/IPv6, HTTP/S, TCP, UDP, RTP/RTSP/RTMP, SMTP, FTP/SFTP, DHCP, DNS, DDNS, QoS, NTP, IGMP, PPPoE, SNMP, P2P, Bonjour and more

• Interoperability: ONVIF (S/G/T/M), CGI

• Max Users: 20 (64 Mbps total)

• Storage: FTP, SFTP, NAS, Micro SD up to 512 GB

• Browsers: IE11, Chrome, Firefox

• Software: Smart PSS Lite, DSS, DMSS, DoLynk Care

• Mobile: iOS / Android

• Security: X.509, HTTPS, 802.1x, trusted boot/execution/upgrade, IP/MAC filtering

---

Power

• Power Supply: 12 VDC / PoE

• Dual-Power Backup: continues operation if one source is cut

• Power Consumption:

  • Basic: 4.1 W (12 VDC) / 6 W (PoE)

  • Max (AI + WDR + warm light + deterrence): 8.2 W (12 VDC) / 10 W (PoE)

---

Environment

• Operating Temperature: –40 °C to +60 °C

• Operating Humidity: ≤95%

• Protection: IP67

---

Physical

• Casing: Metal

• Dimensions: Φ122.0 mm × 116.1 mm

• Net Weight: 0.8 kg

• Gross Weight: 1.0 kg
