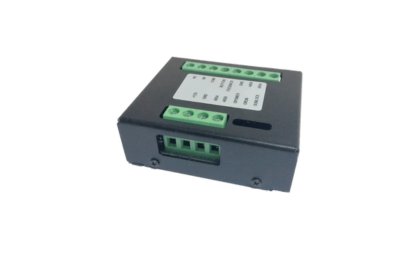

Dahua Access Control Extension Module DHI-DEE1010B-S2

Access Control Extension Module

• Used to expand access control functions in conjunction with access control terminals and door stations

• Supports RS-485 communication

• Connects to electronic or magnetic locks to enhance security

• Equipped with 3 indicators for power status, device operation, and door status

• Datasheet

Ports

• RS-485: 2

• Exit Button: 1

• Door Status Detection: 1

• Lock Control: 1

General

• Power Supply: 12 VDC, 1 A

• Power Consumption: ≤ 0.9 W (standby), ≤ 1 W (working)

• Product Dimensions: 58.2 mm × 49.2 mm × 20.2 mm (2.29" × 1.94" × 0.8") (W × H × D)

• Operating Temperature: –10 °C to +60 °C (+14 °F to +140 °F)

• Operating Humidity: 0%–95% (RH), non-condensing

• Net Weight: 0.09 kg (0.20 lb)

• Gross Weight: 0.12 kg (0.26 lb)

Certifications

• CE

• FCC
