Description

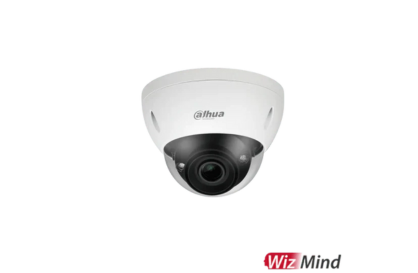

4MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
Applicable to 5442-Z-S3 series only
• 4MP 1/1.8" CMOS image sensor with low luminance and high-definition imaging
• Max. resolution: 2688 × 1520 @ 25/30 fps
• Built-in IR LED with max. illumination distance of 40 m
• ROI, SVC, Smart H.264+/H.265+, AI H.264/H.265 encoding after filter for optimized bandwidth/storage
• Features rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking
• Deep learning algorithm supports:
– Video metadata
– Smart sound detection
– Intelligent Video System (IVS)
– Face detection
– Smart object detection
– People counting
• I/O ports: 2 alarm inputs, 1 alarm output
• Audio: 1 input, 1 output; built-in MIC
• Storage: Supports max. 1 TB Micro SD card
• Power: 12V DC / 24V AC / PoE / ePoE
• Protection: IP67 weatherproof and IK10 vandal-proof
• Smart Motion Detection: SMD 3.0
Camera
-
Image Sensor: 1/1.8" CMOS
 -
Max. Resolution: 2688 (H) × 1520 (V)
 -
ROM: 4 GB
 -
RAM: 1 GB
 -
Scanning System: Progressive
 -
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
 -
Min. Illumination:
-
0.0007 lux@F1.8 (Color, 30 IRE)
 -
0.0004 lux@F1.8 (B/W, 30 IRE)
 -
0 lux (IR On)

 -
 -
S/N Ratio: >56 dB
 -
IR Distance: Up to 40 m (131.23 ft)
 -
IR LED Control: Auto / Zoomprio / Manual
 -
IR LEDs: 3
 -
Angle Adjustment: Pan: 0°–355°, Tilt: 0°–65°, Rotation: 0°–355°

Lens
-
Type: Motorized vari-focal
 -
Mount: φ14
 -
Focal Length: 2.7 mm–12 mm
 -
Max. Aperture: F1.8
 -
Field of View: H: 115°–47°, V: 62°–27°, D: 137°–54°
 -
Iris Control: Auto
 -
Close Focus Distance: 1.5 m (4.92 ft)

DORI Distance
(EN-62676-4 Standard)
-
Wide Lens:
-
Detect: 57.5 m
 -
Observe: 23.0 m
 -
Recognize: 11.5 m
 -
Identify: 5.8 m

 -
 -
Tele Lens:
-
Detect: 130.8 m
 -
Observe: 52.3 m
 -
Recognize: 26.2 m
 -
Identify: 13.1 m

 -

Intelligence
-
IVS (Perimeter Protection): Intrusion, tripwire, fast moving, loitering, people gathering, parking detection
 -
Smart Object Detection: Abandoned / Missing object
 -
SMD: 3.0
 -
AcuPick: Target search using deep learning
 -
AI SSA: Supported
 -
Face Detection: Full feature set with optimization and filtering
 -
People Counting: Tripwire, area, queue; reports with flexible timelines
 -
Heat Map: Supported
 -
Video Metadata: Motor vehicle, non-motor vehicle, face, human body
 -
Smart Search: Works with Smart NVR
 -
Smart Sound Detection: Yes

Video
-
Compression: H.265, H.264, MJPEG (sub-stream)
 -
Smart Codec: H.265+/H.264+
 -
AI Coding: AI H.265/AI H.264
 -
Frame Rate:
-
Main: 2688×1520 (1–25/30 fps), 1080p (1–50/60 fps)
 -
Sub: D1 (1–25/30 fps)
 -
Third: 1080p (1–25/30 fps)
 -
Fourth: 720p (1–25/30 fps)

 -
 -
Stream Capability: 4 streams
 -
Resolution Options: 4M to CIF
 -
Bit Rate Control: CBR/VBR
 -
Bit Rate: H.264 (32–16384 kbps), H.265 (12–11008 kbps)
 -
Day/Night: Auto(ICR)/Color/B/W
 -
Features: BLC, HLC, WDR (140 dB), SSA, White Balance, Gain, 3D NR, Motion Detection, ROI, EIS, Smart Illumination, Defog, Image Rotation, Mirror, Privacy Masking (8 areas), LDC

Audio
-
Built-in MIC: Yes
 -
Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723

Alarm
-
Events: Comprehensive list including tampering, motion, intrusion, face, audio, SMD, people counting, defocus, and more

Network
-
Port: RJ-45 (10/100 Base-T)
 -
Protocols: IPv4/6, HTTP, TCP, UDP, RTP, RTSP, RTMP, FTP, SFTP, NTP, SNMP, P2P, and more
 -
Interoperability: ONVIF (S/G/T/M), CGI
 -
Users: 20 (max bandwidth 80 M)
 -
Storage: FTP, SFTP, Micro SD (up to 1 TB), NAS
 -
Browsers: IE 9+, Chrome 102+, Firefox 88+
 -
Management Software: SmartPSS Lite, DSS, DMSS
 -
Mobile: iOS, Android
 -
Cyber Security: Full suite with encryption, 802.1x, certificates, HTTPS, secure boot

Certification
-
CE-LVD: EN62368-1
 -
CE-EMC: 2014/30/EU
 -
FCC: Part 15 Subpart B
 -
UL/CUL: UL62368-1 & CAN/CSA C22.2

Ports
-
Audio In/Out: 1 channel each (RCA)
 -
Alarm In: 2 channels (wet contact)
 -
Alarm Out: 1 channel (wet contact)

Power
-
Input: 12 VDC / 24 VAC / PoE (802.3af) / ePoE
 -
Dual Power: Supported
 -
Consumption:
-
Basic: 3.6 W (12 VDC); 4.3 W (24 VAC); 5.4 W (PoE)
 -
Max: 9.3 W (12 VDC); 11 W (24 VAC); 11.7 W (PoE)

 -

Environment
-
Operating Temp: –30 °C to +60 °C
 -
Storage Temp: –40 °C to +60 °C
 -
Humidity: ≤95% (operating); 10%–95% (storage)
 -
Protection: IP67, IK10

Structure
-
Material: Metal
 -
Dimensions: Φ159.1 mm × 118.1 mm
 -
Net Weight: 0.91 kg
 -
Gross Weight: 1.22 kg
