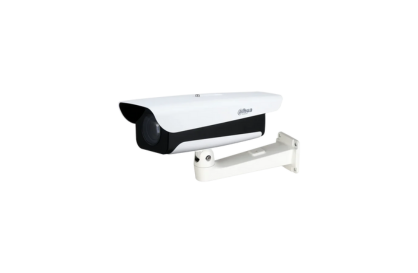

Dahua AI access ANPR 2 Megapixel Full HD WDR ANPR Camera, IR, max 40km/hr, 10-50mm Motorised lens, max 25m distance

2MP Long Range Access ANPR Camera

• CMOS image sensor

• Video compression: H.265 / H.264M / H.264H / H.264B / MJPEG

• Integrated design with IP67 protection

• Datasheet



Image Processing

• Illuminator: 6 IR illuminators (brightness adjustable)

• Image Sensor: 1/1.8'' CMOS

• Image Resolution: 1920 × 1080 (OSD black strip excluded)

Video Resolution

• Main stream: 1080P (1920 × 1080) / 720P (1280 × 720)

• Sub stream: 720P (1280 × 720) / D1 (704 × 576, 704 × 480) / CIF (352 × 288, 352 × 240)

Video Frame Rate

• PAL:
  Main stream (1920 × 1080@25fps, 1280 × 720@25fps)
  Sub stream (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps)

• NTSC:
  Main stream (1920 × 1080@30fps, 1280 × 720@30fps)
  Sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps)

Bit Rate

• H.264B: 32Kbps–32768Kbps

• H.264M: 32Kbps–32768Kbps

• H.264H: 32Kbps–32768Kbps

• H.265: 32Kbps–32768Kbps

• MJPEG: 512Kbps–65536Kbps

Video Encoding

• H.264B / H.264M / H.264H / H.265 / MJPEG

Image Encoding

• JPEG

Noise Reduction

• 3DNR

White Balance

• Full auto; auto color temperature range; customized color temperature

Electronic Shutter

• 1/50–1/10000, auto or manual

Wide Dynamic Range

• 96db

Edge Enhancement

• Yes

Exposure Mode

• Full auto; customized auto; customized

Iris

• Auto iris (W:1.3–T:2.3)

---

Function

• Trigger Mode: Video detection; I/O coil; video detection and I/O coil

• Shutter: Single shutter

• Storage: 1 built-in TF card port. Supports Kingston, Dahua, SanDisk 16G, 32G, 64G

• Image Tampering Prevention: Yes. Video/picture checked by watermark and verification

• Max Illumination Distance: 30 m (98.43 ft)

• Capture Range: 8 m–30 m (26.25 ft–98.43 ft)

• Detected Lane Width: 6 m–7 m (19.69 ft–22.97 ft)

• Min Ambient Illuminance: 0.002 Lux (Illuminator designed with camera)

• Max Speed that the Camera Detects: 60 km/h

---

Alarm Event

• Alarm for no storage card, insufficient storage, storage card error, network disconnection, IP conflict, illegal access

Security Mode

• Authorized username/password, MAC address binding, HTTPS encryption, IEEE 802.1x, network access control

OSD Overlay

• Time, address (channel position), lane (number/direction), plate (number/color), vehicle (speed, color, type)

ANR (Automatic Network Replenishment)

• Yes (Platform/FTP)

Auto Register

• Yes

---

Intelligence

• Vehicle Detection: Capture rate ≥99%

• Vehicle Recognition: Supports vehicle type, logo, color, license plate, and plate-less vehicles. Recognition rate ≥95%

• Video Metadata: Yes

• Intelligent Track Frame: Displays vehicle plate and path

---

Ports

• Lens: Lens in camera module

• Analog Output: 1

• Ethernet Port: 1 × 100/1000M RJ45

• RS-485 Port: 2

• RS-232 Port: 1

• Alarm Input: 3 (optocoupler input)

• Alarm Output: 3 (2 optocoupler, 1 relay for devices like barriers)

• Audio Input: 1 × RCA

• Audio Output: 1 × RCA

---

General

• Power Supply: 12V DC, 24V AC, PoE+

• Power Consumption: < 20W

• Operating Temperature: −30°C to +65°C (−22°F to +149°F)

• Operating Humidity: 10%–90% (no condensation)

• Housing: Metal and plastic

• Protection Grade: IP67

• Dimensions (L×W×H): 370.4 mm × 124.7 mm × 105.7 mm (14.58" × 4.91" × 4.16")

• Net Weight: 1.7 kg (3.75 lb)

• Gross Weight: 2.5 kg (5.51 lb)

• Installation: Universal joint installation

• Lens: 10 mm–50 mm (0.39"–1.97")

• Certification: CE, FCC

• RoHS: Yes
