Description

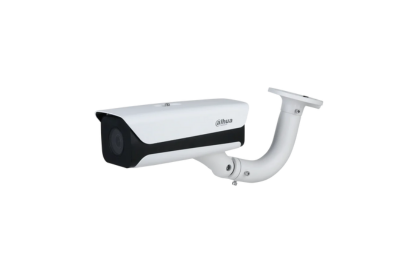

Access ANPR Camera
-
High-performance CMOS sensor and processor for 24/7 vehicle information extraction and analysis
-
Deep learning algorithms for accurate recognition of vehicles without license plates, including vehicle model, logo, series, color, and more
-
Multiple signal, data, and communication interfaces; supports connection to external devices like barriers
-
Built-in LED illuminator for easier installation
-
Motorized vari-focal lens for flexible installation and commissioning
-
Integrated, low power consumption design with IP67 protection
- Datasheet
Basic
-
Illuminator Number: 6 IR illuminators, brightness adjustable
-
Image Sensor: 1/2.8" CMOS
-
Image Resolution: 1920 × 1080 (OSD black strip excluded)
-
Video Resolution:
-
Main stream: 1080P (1920 × 1080) / 720P (1280 × 720)
-
Sub stream: 720P (1280 × 720) / D1 (704 × 576, 704 × 480) / CIF (352 × 288, 352 × 240)
-
-
Video Frame Rate:
-
PAL: Main stream (1080p@25fps, 720p@25fps), sub stream (720p@25fps, D1@25fps, CIF@25fps)
-
NTSC: Main stream (1080p@30fps, 720p@30fps), sub stream (720p@30fps, D1@30fps, CIF@30fps)
-
-
Bit Rate:
-
H.264B/M/H, H.265: 32Kbps–32768Kbps
-
MJPEG: 512Kbps–65536Kbps
-
-
Video Compression: H.264B/H.264M/H.264H/H.265/MJPEG
-
Picture Encoding Format: JPEG
-
Noise Reduction: 3DNR
-
White Balance: Full auto, auto color temperature range, customized color temperature
-
Electronic Shutter Speed: 1/50–1/10000, auto or manual
-
WDR: 96 dB
-
Edge Enhancement: Yes
-
Exposure Mode: Full auto, customized auto, customized
-
Iris Control: Auto iris (W: 1.6–T: 3.3)
Performance
-
Trigger Mode: Video detection; I/O coil; video detection and I/O coil
-
Shutter: Single shutter
-
Storage: 1 built-in TF card port. Supports Kingston, Dahua, SanDisk 16G, 32G, 64G, and 128G cards
-
Image Tampering Prevention: Yes (watermark and verification)
Field of View
-
Horizontal: 108.1° (W) – 30.3° (T)
-
Vertical: 56.3° (W) – 17.1° (T)
-
Diagonal: 130.9° (W) – 34.8° (T)
Illumination
-
Distance: 12 m (39.37 ft)
-
Capture Range: 3 m – 6 m (9.84 ft – 19.69 ft)
-
Detected Lane Width: 3 m – 4 m (9.84 ft – 13.12 ft)
-
Min Ambient Illuminance: 0.002 Lux (with illuminator)
-
Max Detection Speed: 30 km/h
Alarm Event
-
Alarm on no storage card, insufficient space, card error, network disconnection, IP conflict, illegal access
Security
-
Authorized username/password, MAC address binding, HTTPS encryption, IEEE 802.1x, network access control
OSD Overlay
-
Time, address (channel position), lane (number/direction), plate (number and color), vehicle (speed, color, type)
Automatic Network Replenishment (ANR)
-
Supported (Platform/FTP)
Auto Registration
-
Supported
Intelligence
-
Vehicle Detection: Capture rate ≥99%
-
Vehicle Recognition: Recognizes type, logo, series, color, license plate, driver & front-seat passenger features, and vehicles without plates; recognition rate ≥95%
-
Video Metadata: Supported
-
Intelligent Track Frame: Displays vehicle plate and path
Port
-
Lens Mount: Φ14
-
Analog Output: 1
-
Network: 1 × 100/1000M Ethernet (RJ-45)
-
RS-485: 2
-
RS-232: 1
-
Alarm Input: 3 (optocoupler, on/off input)
-
Alarm Output: 3 (2 optocoupler, 1 relay; connects to devices like barriers)
-
Audio Input: 1 × RCA
-
Audio Output: 1 × RCA
General
-
Power Supply: 12V DC, 24V AC, PoE+
-
Power Consumption: <20W
-
Operating Temperature: –30 °C to +65 °C (–22 °F to +149 °F)
-
Operating Humidity: 10%–90% (no condensation)
-
Casing: Metal and plastic
-
Protection Grade: IP67
-
Dimensions: 486.7 × 124.3 × 185.5 mm (19.16" × 4.89" × 7.30")
-
Net Weight: 1.9 kg (4.19 lb)
-
Gross Weight: 3.3 kg (7.28 lb)
-
Installation: Installed with bracket
Lens
-
Focal Length: 3.2 mm – 10.5 mm
Certification
-
CE, FCC, RoHS
