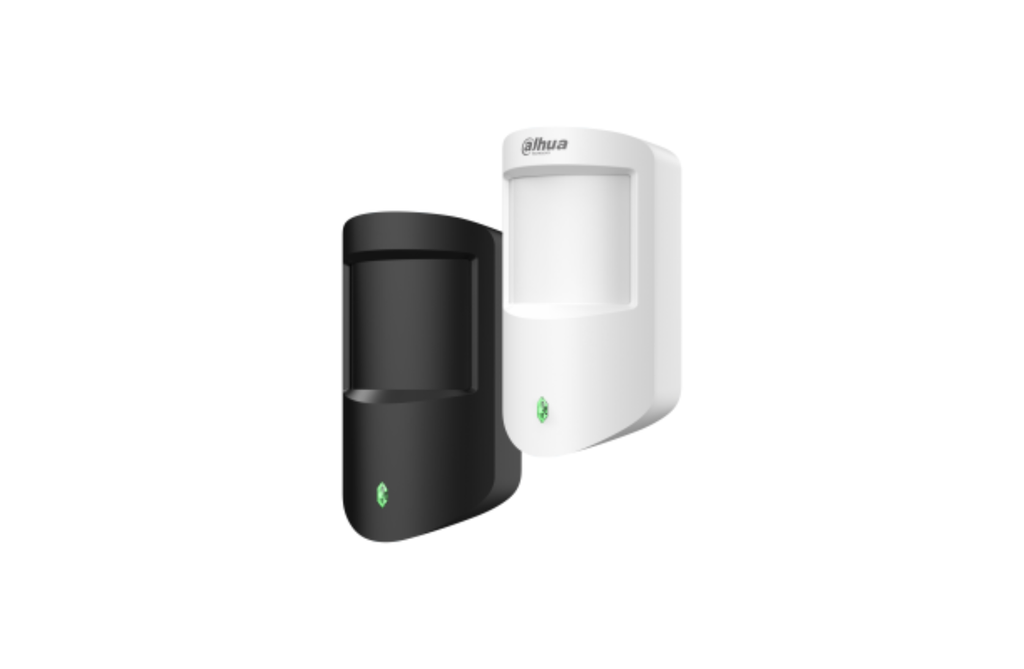

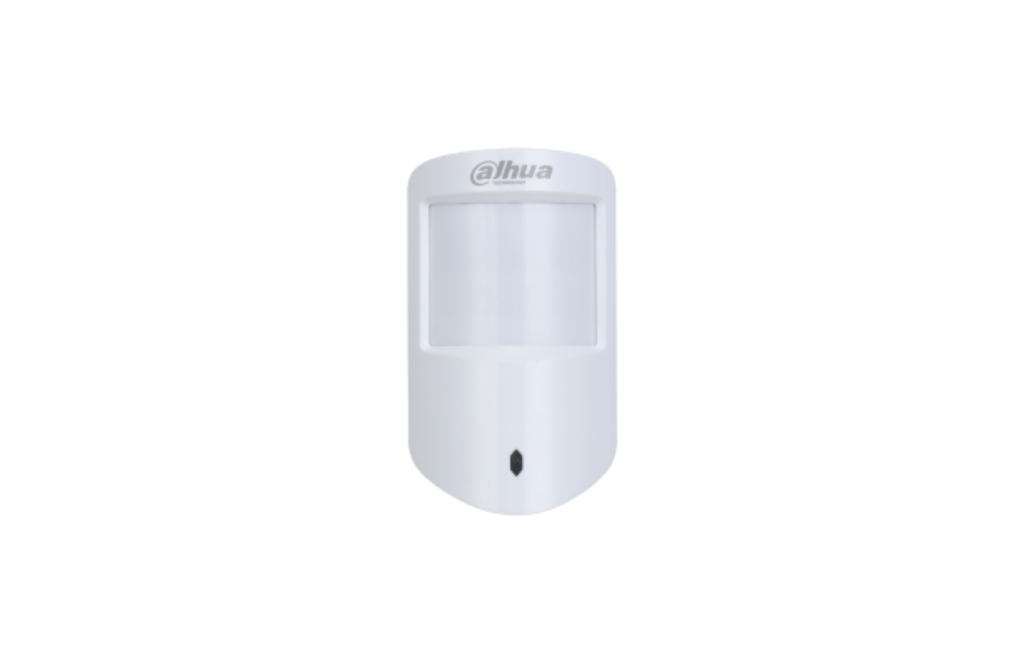

Wireless indoor motion detector using dual-technology detection (PIR + microwave) for improved accuracy and reduced false alarms. Supports pet immunity, temperature monitoring, AES128 encryption, and long-range two-way RF communication.
Key Features
-
PIR + Microwave detection
-
Pet immunity ≤ 18 kg (height < 50 cm)
-
3-level sensitivity adjustment
-
Auto temperature compensation
-
Environmental temperature display
-
Overheating alarm support
-
RF interference detection
-
AES128 encryption
-
Frequency hopping
-
Two-way communication
-
Cloud firmware update with auto recovery
Detection
-
Detection range: 12 m (90°)
-
Installation height: 2.2 m
-
Detection speed: 0.3 m/s – 3 m/s
-
PIR sensor: Dual-element low-noise
-
Microwave frequency: 24 GHz
-
White light immunity: 2000 lx
-
Temperature compensation: Digital, no distance attenuation in high temperature
-
Test mode: Yes
Wireless
-
Frequency: 433.1 – 434.6 MHz
-
Communication: Two-way
-
Transmission power: ≤ 10 mW (EIRP)
-
Communication distance: Up to 1,200 m (open space)
-
Encryption: AES128
-
Frequency hopping: Yes
Electrical
-
Power supply: 1 × CR123A battery
-
Battery life: Up to 3 years (10 triggers/day, 70% efficiency)
-
Operating current: 11 μA
-
Alarm current: 69 mA
-
Max power consumption: 640 mW
-
Low battery detection: Yes
Environmental
-
Operating temperature: -10°C to +55°C
-
Certified temperature: -10°C to +40°C
-
Temperature measuring range: -15°C to +65°C
-
Operating humidity: 10%–90% RH
-
Storage temperature: -10°C to +55°C
-
Storage humidity: 10%–90% RH
-
Anti-corrosion level: Basic protection
-
Certification: CE
Physical
-
Installation: Wall mount
-
Casing material: PC + ABS
-
Dimensions: 104 × 60 × 50 mm
-
Net weight: 106 g
-
Gross weight: 184 g
-
Packaging dimensions: 135 × 98.5 × 56.8 mm
