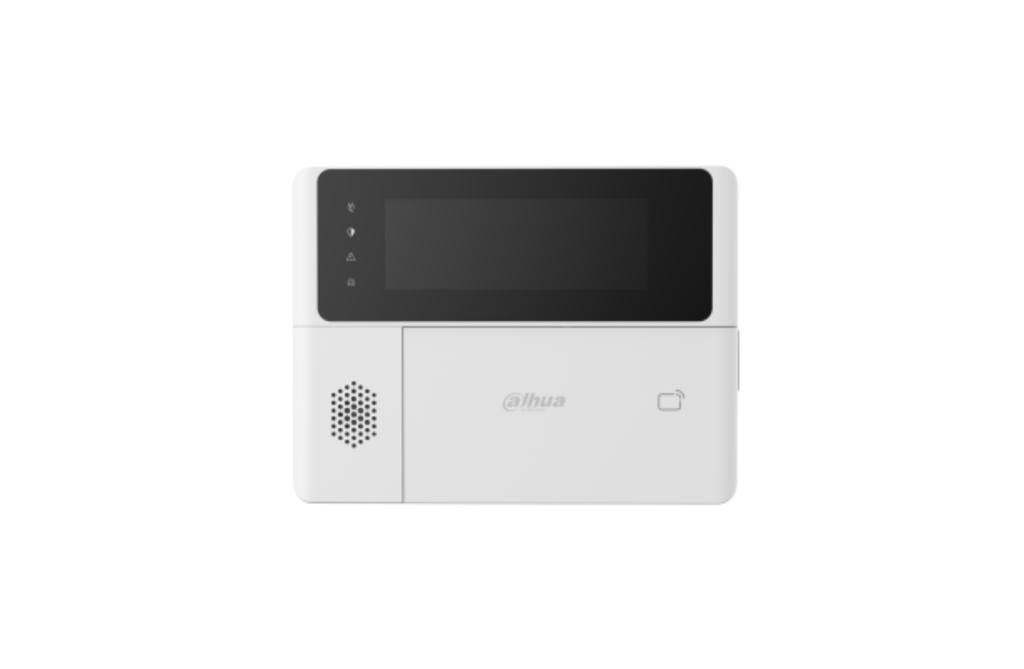

Wireless LCD keypad designed for alarm system control including arming, disarming, and system status monitoring. Supports password and IC/DesFire card authentication, shortcut emergency alarms, and two-way encrypted RF communication.
Datasheet
Key Features
-
LCD keypad for alarm system control
-
Arm and disarm via password or IC/DesFire card
-
Supports 3 shortcut alarms: medical, fire, and emergency
-
High-decibel built-in alarm buzzer
-
System status query support
-
Two-way encrypted wireless communication
-
AES128 encryption
-
Frequency hopping technology
-
Cloud firmware update with automatic recovery
-
Tamper protection and low battery detection
Function
-
Buttons: 20 (10 numeric + 10 function buttons)
-
Indicator lights: 4 (power, arm/disarm, fault, alarm)
-
Buzzer: 2 built-in buzzers
-
Arm/Disarm methods: Password or IC/DesFire card
-
Remote update: Cloud update
-
Low battery detection: Yes
-
Tamper protection: Yes
Alarm Sound
Wireless
-
Frequency: 433.1 – 434.6 MHz
-
Transmission power: ≤ 10 mW (EIRP)
-
Communication: Two-way
-
Communication distance: Up to 1,200 m (open space)
-
Encryption: AES128
-
Frequency hopping: Yes
Electrical
Battery
-
Battery model: CR123A
-
Standby time:
-
Up to 3 years (heartbeat cycle 1 minute, operated twice per day)
-
Up to 2 years (when additional functions are enabled)
Environmental
-
Operating temperature: –10°C to +55°C
-
Temperature measuring range: –10°C to +55°C
-
Operating humidity: 10%–90% RH
-
Storage temperature: –10°C to +55°C
-
Storage humidity: 10%–90% RH
-
Certification: CE
-
Anti-corrosion level: Basic protection
Physical
-
Installation: Wall mount
-
Casing material: PC + ABS
-
Color: White
-
Dimensions: 170 × 129 × 31.2 mm
-
Net weight: 390 g
-
Gross weight: 665 g
-
Packaging dimensions: 214 × 162 × 57 mm
Language Support
Supports 16 languages including:
English, Italian, Spanish, Russian, French, German, Portuguese, Polish, Danish, Czech, Bulgarian, Dutch, Greek, Spanish (Europe), Turkish, Slovak.
