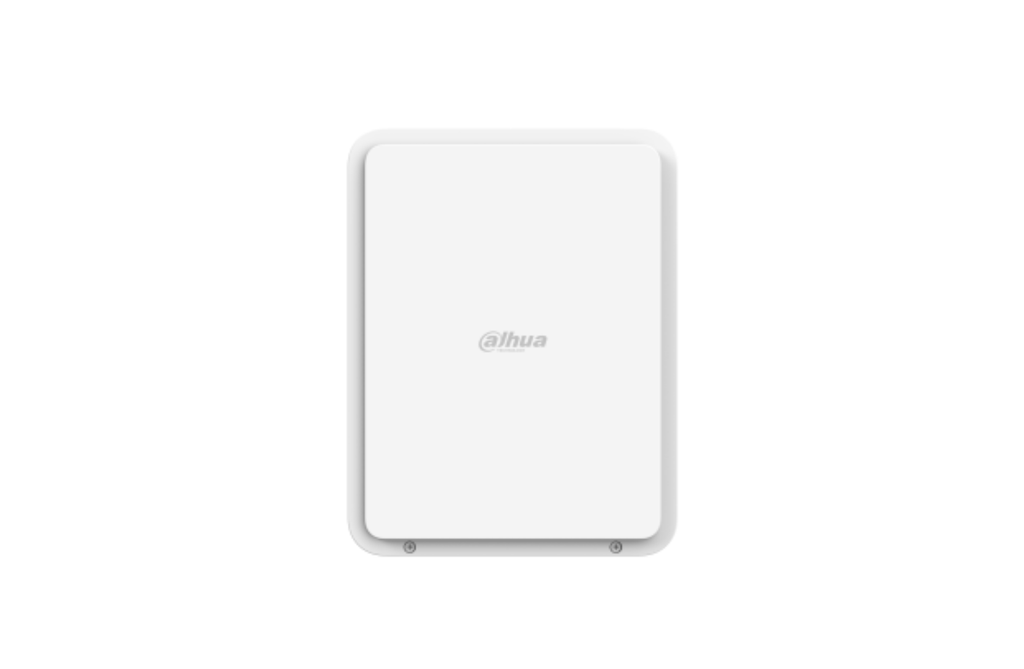

Wireless Multi IO Transmitter
Key Features
• Connects to hub through RF or network communication
• Supports 16 alarm input channels
• Supports 4 relay outputs
• 2 auxiliary power outputs (max 24W) for powering wired detectors and sirens
• Supports overload and short circuit detection
• Supports PoE or AC power supply
Alarm Input
• Supports 16 local alarm inputs
• Channels 1–6 support pulse detection
• Channels 1–16 support 0EOL / EOL / 2EOL / 3EOL
• Maximum cable distance 500 m (using RVV 2×2.6 cable without strong electrical interference)
Alarm Output
• 4 relay outputs
• Maximum 30 VDC, 3A
Network
• Ethernet communication mode
• 1 × RJ-45 10/100 Mbps Ethernet port
• Supports PoE power supply
Auxiliary Power Output
• 2 built-in auxiliary outputs
• 14.5V output
• Total output current 1A (PoE) or 2A (Non-PoE)
Battery
• Supports 12V 7Ah backup battery (not included)
Functions
• LED indicator for device status
• 1 × switch button
• 1 × reset button
• Supports cloud firmware update
• Low battery detection
• Tamper protection
Wireless
• Carrier frequency 433 MHz
• Transmitter power ≤10 mW
• Two-way RF communication
• Communication distance up to 1,200 m in open space
• AES128 encryption
• Frequency hopping supported
Power
• Power supply 100–240 VAC, 50/60 Hz
• Supports PoE (802.3at)
• Standby time up to 30 hours
Power Consumption
• 220 VAC quiescent current 40 mA Irms
• 220 VAC max current @2A load + charge 315 mA Irms
• PoE quiescent current 125 mA
• PoE max current @0.75A load + charge 612 mA
General
• Operating temperature –10 °C to +50 °C
• Operating humidity 10%–90%
• Product dimensions 304 × 235 × 90.8 mm
• Net weight 1.22 kg
• Gross weight 1.78 kg
• Installation wall mount
• Casing material PC + ABS
• Color white
• Protection rating IP30
• Certifications CE
• Storage temperature –10 °C to +55 °C
• Storage humidity 10%–90%
• Packaging dimensions 369 × 140 × 280 mm
