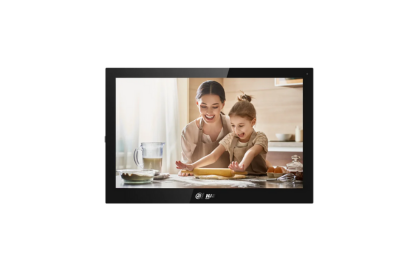

Dahua Android 10-inch Digital Indoor Monitor DHI-VTH5341G-W

Android IP & Wi-Fi Indoor Monitor

• Android 8.1 operating system

• User-friendly UI design

• Supports Ethernet and Wi-Fi

• 10" TFT capacitive touch screen (1024 × 600)

• Optional MicroSD card support (up to 256GB)

• Datasheet



Android IP & Wi-Fi Indoor Monitor – 10"

---

System

• Main Processor: Embedded processor

• Operating System: Android 8.1

• Network Protocols: IPv4, TCP, SIP, UDP, RTSP

---

Display

• Screen Type: Capacitive

• Screen Size: 10" TFT LCD

• Resolution: 1024 × 600

---

Audio & Video

• Video Compression: H.264

• Audio Compression: PCM

• Audio Input: 1 omnidirectional microphone

• Audio Output: Built-in 1.5W speaker

• Audio Mode: Two-way voice call

• Audio Enhancements: Echo suppression, DNR

• Audio Bitrate: 16KHz, 16Bit

---

Functions

• Information Release: View text announcements from the management center

• Communication Mode: Full digital

• Elevator Control: Supported

• Leave Message: Supports video/text message (requires SD card)

• DND Mode: Configurable do-not-disturb period

• Extension Number: 4 (Villa), 9 (Apartment)

---

Network & Wireless

• Wi-Fi: Supported (video/voice calls only on wired connection)

• Wireless Standards: IEEE 802.11b/g/n

• Frequency: 2.4GHz

• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

• Wired Network Port: 1 × 10M/100M Ethernet

---

Storage

• MicroSD Card: Up to 256GB supported

---

Ports

• RS-485: 1

• Alarm Input: 8

• Alarm Output: 1

• Power Output: 1 × 12V/100mA

• Doorbell: Yes (via alarm input port)

---

Alarms

• SOS Alarm: Supported

---

Performance

• Housing Material: PC+ABS

• Color: Black

• Power Supply: 12V DC 1A / Standard PoE

• Power Consumption: ≤1.5W (standby), ≤7W (working)

---

Installation

• Mounting: Surface mount

• Accessories: Surface mount bracket, alarm ribbon cable, RS-485 cable, power-supply pins

---

Certifications

• Compliance: CE, FCC

---

Environmental

• Operating Temperature: –10°C to +55°C (14°F to 131°F)

• Humidity: 10%–95% RH (non-condensing)

• Altitude: < 3,000m (9842.52 ft)

---

Dimensions & Weight

• Without Ports: 260 × 170 × 15 mm (10.24" × 6.69" × 0.59")

• With Ports: 260 × 170 × 25.4 mm (10.24" × 6.69" × 1")

• Net Weight: 770 g (1.70 lb)

• Gross Weight: 1.1 kg (2.43 lb)
