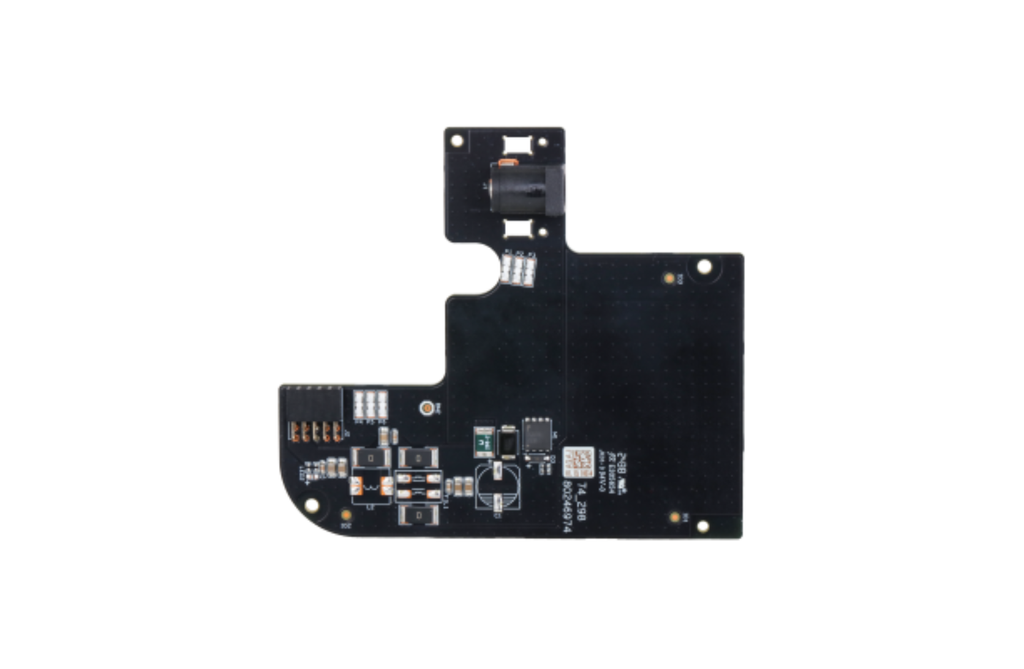

The ARA62-V2 PSU Module is a compact 9–15V DC power supply module designed to provide stable power input and flexible installation options. It supports 9–15 VDC input and allows replacement of the AC power module in Hub 2 systems.
This module is ideal for installations requiring alternative DC power sources or integration with external terminal block connections.
Datasheet
Key Features
-
Supports 9–15 VDC power input
-
Output voltage: 9–15 VDC
-
Maximum load output: 1.2 A
-
Allows replacement of Hub 2 AC power module
-
Round hole connector supports connection to 2-pin terminal block
-
Compact, lightweight design
-
Suitable for professional alarm installations
Technical Specifications
Output Voltage: 9–15 VDC
Maximum Load Output: 1.2 A
General Specifications
Power Supply: 9–15 VDC input
Operating Temperature: –10 °C to +55 °C
Operating Humidity: 10%–90% RH
Product Dimensions: 89 mm × 79 mm × 12 mm
Net Weight: 20 g
Gross Weight: 66.35 g
Anti-corrosion Level: Basic Protection
Packaging Details
Inner Box (Single Device):
106 mm × 90 mm × 45 mm
Protective Case:
339 mm × 291 mm × 261 mm
