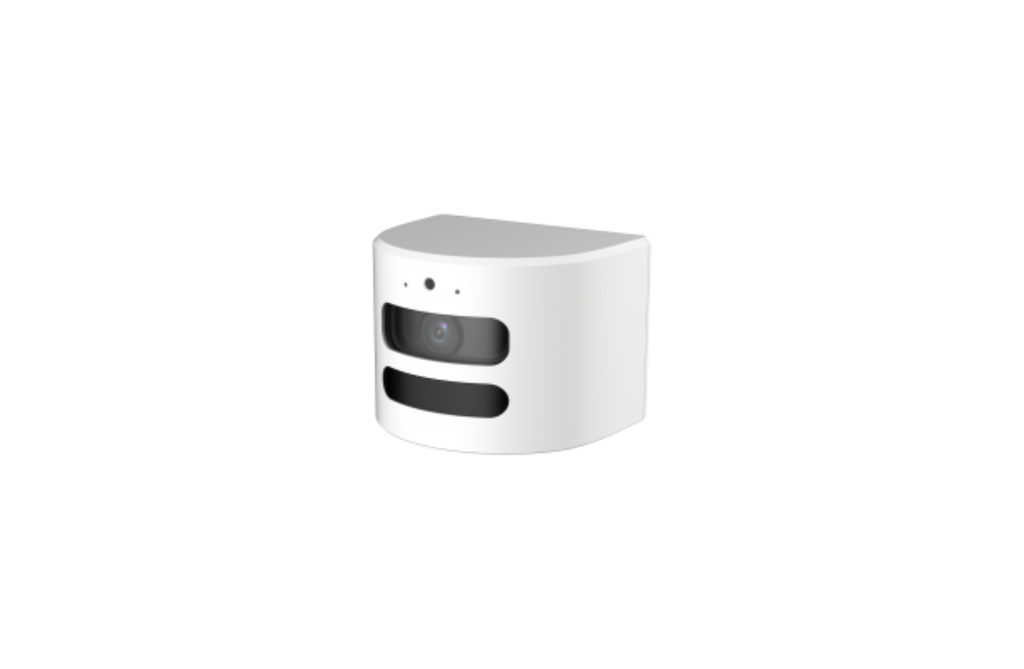

The ARD1130-CAM PIR-CAM Module is a 1.3MP camera module designed for alarm verification and visual confirmation. Equipped with a 1/3" CMOS image sensor, built-in IR LEDs, and a wide 112° field of view, it delivers clear images even in low-light environments.
With up to 15m IR illumination and IP66 protection, this module is suitable for both indoor and outdoor security applications.
Datasheet
Key Features
-
1.3MP 1/3" CMOS image sensor
-
Max resolution: 1280 × 960
-
Built-in 2 × IR LEDs
-
IR illumination distance up to 15m
-
Wide angle 112° horizontal field of view
-
Day/Night mode: Auto (ICR) / Color / B&W
-
IP66 weather protection
-
Powered directly by siren (3VDC)
Camera Specifications
Image Sensor: 1/3" CMOS
Max Resolution: 1280 (H) × 960 (V)
Electronic Shutter Speed: Auto 1/30s – 1/100,000s
Illumination Distance: Up to 15m (IR)
Illuminator Control: Auto
Illuminator Quantity: 2 × IR LEDs
Lens Specifications
Lens Type: Fixed focal
Lens Mount: M12
Focal Length: 2.8 mm
Max Aperture: F2.0
Field of View:
DORI Distances (2.8 mm Lens)
| Function |
Distance |
| Detect |
40.0 m |
| Observe |
16.0 m |
| Recognize |
8.0 m |
| Identify |
4.0 m |
DORI (EN-62676-4) defines human/object visibility performance. For intelligent function distances, refer to project design tools or installation manual.
Video
Supported Resolutions:
-
1.3MP (1280 × 960)
-
VGA (640 × 480)
-
QVGA (320 × 240)
-
160 × 120
Day/Night Mode: Auto (ICR) / Color / B&W
Power
Power Supply: 3 VDC (provided by siren)
Power Consumption:
Environmental
Operating Temperature: –25°C to +60°C
Operating Humidity: ≤95% RH (non-condensing)
Protection Rating: IP66
Physical Specifications
Casing Material: Plastic
Dimensions: 80.0 mm × 64.6 mm × 58.4 mm
Gross Weight: 230 g
Certifications
