Description

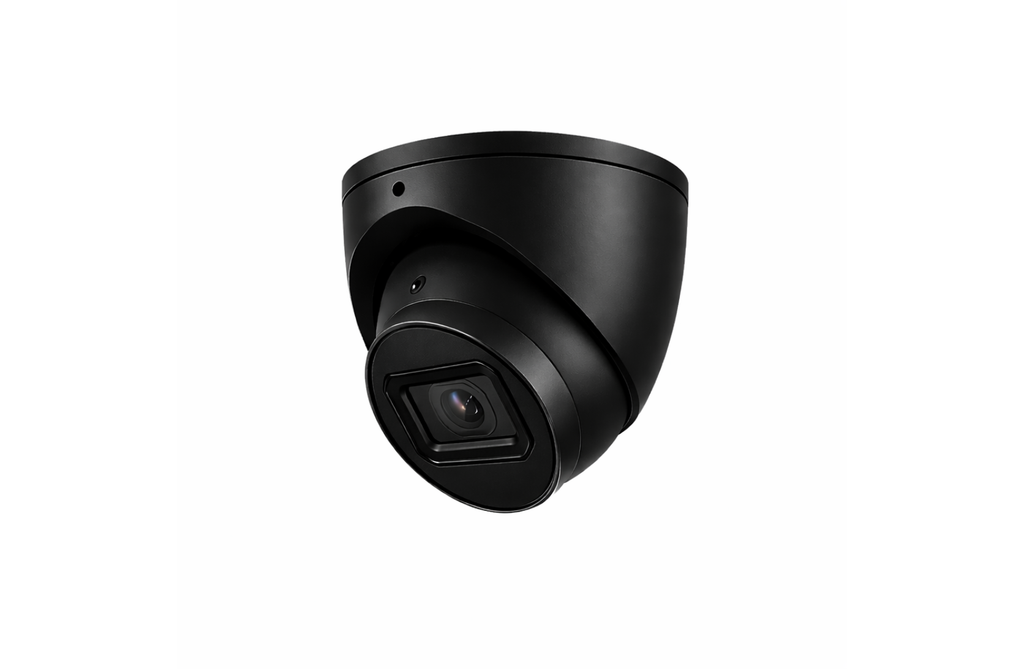

5MP IR Fixed-focal Eyeball WizSense Network Camera (2541-S2 Series)
Key Features
-
5MP 1/2.7" CMOS image sensor for low-light and high-definition imaging
-
Max. 5MP (2960 × 1668) @20 fps; supports 2688 × 1520 @25/30 fps
-
H.265 codec with ultra-low bit rate
-
Built-in IR LED with 30m max illumination
-
Smart H.264+/H.265+, ROI, WDR, 3D NR, HLC, BLC, digital watermarking
-
Intelligent monitoring: Intrusion, tripwire (vehicle/human classification)
-
Abnormality detection: Motion, video tampering, audio, SD card, network, illegal access, voltage
-
Supports up to 256 GB Micro SD card
-
Built-in microphone
-
12 VDC / PoE power supply
-
IP67 protection
-
SMD Plus
Camera Specifications
Image Sensor: 1/2.7" CMOS
Max. Resolution: 2960 (H) × 1688 (V)
ROM: 128 MB | RAM: 256 MB
Shutter: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination:
-
0.007 lux@F1.6 (Color)
-
0.0007 lux@F1.6 (B/W)
-
0 lux with IR
S/N Ratio: >56 dB
IR Distance: Up to 30m
IR Control: Auto / Manual
IR LEDs: 1
Pan/Tilt/Rotation
-
Pan: 0°–360°
-
Tilt: 0°–78°
-
Rotation: 0°–360°
Lens Options
| Focal Length | Aperture | FOV (H/V/D) | Focus Distance |
|---|---|---|---|
| 2.8 mm | F1.6 | 111°/58°/132° | 1.1 m (3.61 ft) |
| 3.6 mm | F1.6 | 92°/45°/110° | 1.7 m (5.58 ft) |
DORI Distance
| Focal Length | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
| 2.8 mm | 63.6 m | 25.4 m | 12.7 m | 6.4 m |
| 3.6 mm | 85.4 m | 34.2 m | 17.1 m | 8.5 m |
Intelligent Features
IVS (Perimeter Protection): Intrusion, Tripwire (human/vehicle classification)
Smart Search: Integration with Smart NVR
Video
Compression: H.265, H.264, MJPEG (sub-stream)
Smart Codec: H.265+, H.264+
Max Frame Rate:
-
2960×1668 @1–20 fps
-
2688×1520 @1–25/30 fps
Sub-stream: 704×576@25 fps / 704×480@30 fps
Bitrate: -
H.264: 32–8192 kbps
-
H.265: 12–8192 kbps
Streams: 2
Image Features: WDR (120 dB), BLC, HLC, 3D NR, Smart IR, Privacy Mask (4 areas), RoI (4 areas)
Image Rotation: 0°/90°/180°/270°
Mirror Mode: Yes
Audio
Built-in Mic: Yes
Compression: G.711a, G.711Mu, G.726, PCM
Alarms & Events
Motion detection, video tampering, audio detection, SD card status, illegal access, IP conflict, voltage alerts, SMD, and more
Network
Port: RJ-45 (10/100 Base-T)
Protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, SMTP, FTP/SFTP, DHCP, QoS, UPnP, NTP, P2P, etc.
Interoperability: ONVIF (S/G/T), CGI
Max Users: 20 (48 Mbps total bandwidth)
Storage: FTP/SFTP, Micro SD (up to 256 GB), NAS
Browser: IE, Chrome, Firefox
Software: SmartPSS Lite, DSS, DMSS
Mobile: iOS, Android
Cybersecurity
Configuration encryption, trusted boot/upgrade, digest authentication, security logs, HTTPS, IP/MAC filtering, firmware encryption, and more
Certifications
-
CE-LVD: EN62368-1
-
CE-EMC: 2014/30/EU
-
FCC Part 15
-
UL/CUL
Power
Supply: 12 VDC / PoE (802.3af)
Consumption:
-
Basic: 2.2 W (DC) / 2.9 W (PoE)
-
Max: 4.1 W (DC) / 5.0 W (PoE)
Environmental
Operating Temp: –40 °C to +60 °C
Humidity: ≤95% RH (non-condensing)
Protection: IP67
Construction
Material:
-
Inner core: Metal
-
Cover: Metal
-
Ring: Plastic
-
Mount Plate: Metal
Dimensions: 99.1 mm × Φ121.9 mm (3.90" × 4.80")
Net Weight: 0.48 kg (1.06 lb)
Gross Weight: 0.68 kg (1.50 lb)
