Description

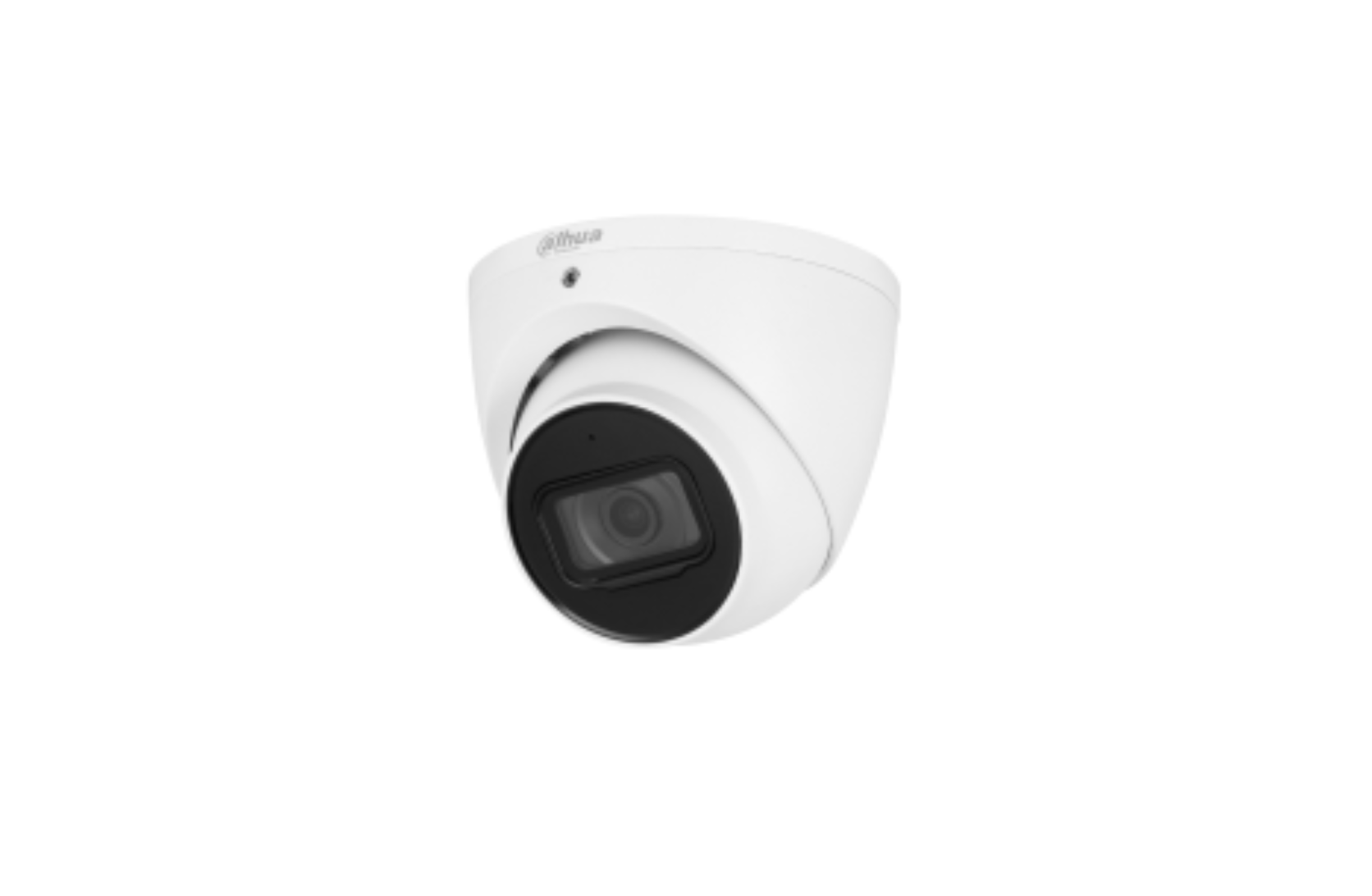

8MP IR Fixed-focal Eyeball WizMind Network Camera
Key Features
• 8 MP 1/1.8" CMOS image sensor
• Maximum resolution 3840 × 2160 @ 25/30 fps
• Built-in IR LED with up to 50 m illumination distance
• Supports ROI, SVC, Smart H.264+ / Smart H.265+, AI H.264 / H.265
• Supports encoding after filter for bandwidth and storage optimisation
• Image features include WDR, 3D NR, HLC, BLC, digital watermarking
• AI functions include video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting
• Built-in microphone
• Supports 1 alarm input, 1 alarm output, 1 audio input, 1 audio output
• Supports Micro SD card up to 1 TB
• Supports 12 VDC, PoE and ePoE
• IP67 weatherproof
• SMD 3.0
Camera
• Image sensor: 1/1.8" CMOS
• Maximum resolution: 3840 × 2160
• ROM: 4 GB
• RAM: 2 GB
• Scanning system: Progressive
• Electronic shutter speed: Auto/Manual 1/3 s to 1/100,000 s
• Minimum illumination:
• 0.0008 Lux @ F1.6 (Color)
• 0.0004 Lux @ F1.6 (B/W)
• 0 Lux with IR on
• S/N ratio: >56 dB
Illumination
• IR illumination distance up to 50 m
• Illuminator control: Auto / Manual
• Illuminators: 2 IR LEDs
Angle Adjustment
• Pan: 0° to 360°
• Tilt: 0° to 78°
• Rotation: 0° to 360°
Lens
• Lens type: Fixed-focal
• Lens mount: M16
• Focal length options: 2.8 mm / 3.6 mm / 6 mm
• Maximum aperture: F1.6
• Field of view:
• 2.8 mm: H 111°, V 59°, D 131°
• 3.6 mm: H 87°, V 47°, D 102°
• 6 mm: H 55°, V 30°, D 64°
• Iris control: Fixed
• Close focus distance:
• 2.8 mm: 1.8 m
• 3.6 mm: 2.6 m
• 6 mm: 4.4 m
DORI Distance
2.8 mm
• Detect: 85.4 m
• Observe: 34.2 m
• Recognize: 17.1 m
• Identify: 8.5 m
3.6 mm
• Detect: 106.0 m
• Observe: 42.4 m
• Recognize: 21.2 m
• Identify: 10.6 m
6 mm
• Detect: 164.8 m
• Observe: 65.9 m
• Recognize: 33.0 m
• Identify: 16.5 m
Intelligence
• EPTZ supported
• IVS perimeter protection:
• Intrusion
• Tripwire
• Fast moving
• Loitering detection
• People gathering
• Parking detection
• Supports accurate detection of:
• Human
• Vehicle
• Animal
• Supports long-distance mode
• Supports self-learning to reduce false alarms
• Smart object detection:
• Abandoned object
• Missing object
• SMD 3.0
• AcuPick supported with compatible back-end devices
• AI SSA supported
• Face detection supports:
• Face track
• Snapshot
• Snapshot optimisation
• Optimal face snapshot upload
• Face enhancement
• Face exposure
• Face attributes extraction
• Face angle filter
• Optimisation time setting
• Face attributes include:
• Gender
• Age
• Expressions
• Glasses
• Face mask
• Beard
• People counting supports:
• Tripwire people counting
• Area people counting
• Queue management
• Report export by day / week / month / year
• Up to 4 rules
• Heat map supported
• Video metadata supports:
• Motor vehicle detection
• Non-motor vehicle detection
• Face detection
• Human body detection
• Track and snapshot
• Motor vehicle attributes include:
• Vehicle type
• Vehicle color
• Vehicle logo
• Seatbelt
• Smoking
• Calling
• Non-motor vehicle attributes include:
• Type
• Color
• Number of people
• Top type and color
• Hat
• Human body attributes include:
• Gender
• Top / bottom type and color
• Bag
• Hat
• Umbrella
• Smart sound detection supported
• Smart search works with Smart NVR for refined event search
Video
• Compression: H.265 / H.264 / H.264H / H.264B / MJPEG
• Smart codec: Smart H.265+ / Smart H.264+
• AI coding: AI H.265 / AI H.264
• Main stream: 3840 × 2160 @ 1–25/30 fps
• Sub stream: D1 @ 1–25/30 fps
• Third stream: 1080p @ 1–25/30 fps
• Fourth stream: 720p @ 1–10 fps
• Stream capability: 4 streams
• Resolution support:
• 3840 × 2160
• 3072 × 2048
• 3072 × 1728
• 2592 × 1944
• 2688 × 1520
• 2560 × 1440
• 2048 × 1536
• 2304 × 1296
• 1080p
• 1.3M
• 720p
• D1
• VGA
• CIF
• Bit rate control: CBR / VBR
• Video bit rate:
• H.264: 32 kbps to 16384 kbps
• H.265: 12 kbps to 13568 kbps
Image Features
• Day/Night: Auto (ICR) / Color / B/W
• BLC supported
• HLC supported
• WDR: 120 dB
• Scene self-adaptation supported
• White balance: Auto / Natural / Street lamp / Outdoor / Manual / Regional custom
• Gain control: Auto
• Noise reduction: 3D NR
• Motion detection: 4 rectangular areas
• Region of interest: 4 areas
• Smart illumination supported
• Defog supported
• Image rotation: 0° / 90° / 180° / 270°
• Mirror supported
• Privacy masking: 8 areas
• LDC supported on 2.8 mm and 3.6 mm only
Audio
• Built-in microphone
• Audio compression: G.711a / G.711Mu / PCM / G.726 / G.723
Alarm
• Alarm input: 1 channel
• Alarm output: 1 channel
• Alarm events include:
• No SD card
• SD card full
• SD card error
• Network disconnection
• IP conflict
• Illegal access
• Motion detection
• Video tampering
• Tripwire
• Intrusion
• Fast moving
• Abandoned object
• Missing object
• Loitering detection
• People gathering
• Parking detection
• Scene changing
• Audio detection
• Voltage detection
• External alarm
• Face detection
• Video metadata
• SMD
• People counting in area
• Stay detection
• People counting
• People number error detection
• Queue people number alarm
• Queue time alarm
• Security exception
Network
• Network port: RJ-45 (10/100 Enhancement Base-T)
• SDK and API supported
• User/host: 20
• Total bandwidth: 80 Mbps
• Supported protocols include:
• IPv4 / IPv6
• HTTP / TCP / UDP
• ARP / RTP / RTSP / RTCP / RTMP
• SMTP / FTP / SFTP
• DHCP / DNS / DDNS
• QoS / UPnP / NTP
• Multicast / ICMP / IGMP
• NFS / SAMBA / PPPoE / SNMP / P2P / Auto Register
• Interoperability: ONVIF Profile S / G / T / M, CGI
Storage
• Supports FTP / SFTP / NAS
• Supports Micro SD card up to 1 TB
Software
• Browser support:
• IE 9 and later
• Chrome 102 and later
• Firefox 88 and later
• Management software: SmartPSS Lite, DSS, DMSS
• Mobile client: iOS / Android
Cyber Security
• Configuration encryption
• Trusted execution
• Digest / WSSE authentication
• Account lockout
• Security logs
• Syslog
• Video encryption
• 802.1x
• IP/MAC filtering
• HTTPS
• Trusted upgrade
• Trusted boot
• Firmware encryption
• X.509 certificate support
Ports
• Audio input: 1 channel (RCA)
• Audio output: 1 channel (RCA)
• Alarm input: 1 channel in
• Alarm output: 1 channel out
Power
• Power supply: 12 VDC / PoE (802.3af) / ePoE
• Dual power backup supported
• Power consumption:
• Basic: 4.1 W (12 VDC) / 5.2 W (PoE)
• Max: 6.8 W (12 VDC) / 8.8 W (PoE)
Environment
• Operating temperature: –40 °C to +60 °C
• Operating humidity: ≤95%
• Storage temperature: –40 °C to +60 °C
• Storage humidity: 10%–95% RH, non-condensing
Protection
• Weather rating: IP67
General
• Casing material:
• Inner core: Metal
• Cover: Metal
• Decoration ring: Plastic
• Quick install mounting plate: Metal
• Product dimensions: 99.1 mm × Φ121.9 mm
• Net weight: 500 g
• Gross weight: 770 g
Certifications
• CE-LVD: EN62368-1
• CE-EMC: 2014/30/EU
• FCC: 47 CFR FCC Part 15, Subpart B
• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
