Description

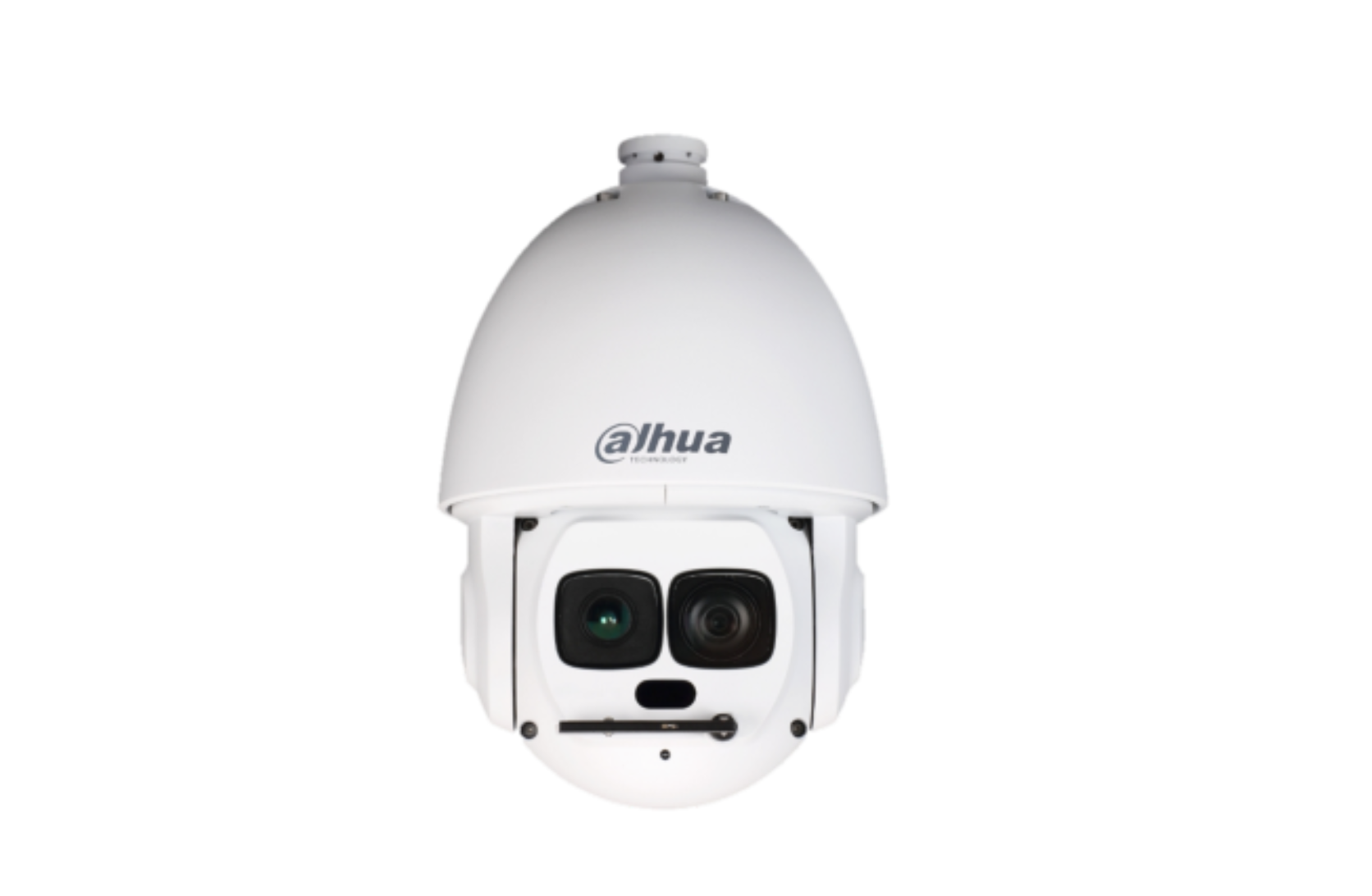

4K 30x Laser PTZ Network Camera
Special Order (Lead Time 4-6 Weeks)
Key Features
- 4K Ultra HD resolution with 30× optical zoom
- Powerful laser IR illumination up to 500m
- 1/1.7” STARVIS™ CMOS sensor for excellent low-light performance
- Smart H.265+ video compression
- Auto Tracking and advanced IVS analytics
- Supports Hi-PoE power input
- Electronic Image Stabilization (EIS) and Defog support
- IP67 weatherproof metal housing
- Designed for long-range outdoor surveillance applications
- Datasheet
Camera
Image Sensor: 1/1.7” STARVIS™ CMOS
Effective Pixels: 3840(H) × 2160(V), 8 Megapixels
RAM / ROM: 1024MB / 128MB
Scanning System: Progressive
Electronic Shutter Speed: 1/1s ~ 1/30,000s
Minimum Illumination: Color: 0.05Lux @ F1.6, 0Lux (IR On)
S/N Ratio: More than 56dB
IR Distance: Up to 500m (1640ft)
IR Control: Auto / Manual
IR LEDs: Laser Module
Wiper: Supported
Lens
Focal Length: 6mm ~ 180mm
Max. Aperture: F1.6 ~ F4.8
Angle of View: H: 61.2° ~ 2.1°
Optical Zoom: 30×
Focus Control: Auto / Manual
Close Focus Distance: 100mm ~ 1000mm
DORI Distance
Detect: 3892m (12769ft)
Observe: 1557m (5108ft)
Recognize: 778m (2552ft)
Identify: 389m (1276ft)
PTZ
Pan Range: 0° ~ 360° endless
Tilt Range: -20° ~ 90°, auto flip 180°
Manual Control Speed:
- Pan: 0.1° ~ 200°/s
- Tilt: 0.1° ~ 120°/s
Preset Speed:
- Pan: 240°/s
- Tilt: 200°/s
Presets: 300
PTZ Modes: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup: Human-oriented focal length/speed adaptation
Power-up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion: Activate Preset, Scan, Tour, or Pattern after inactivity
Protocol: DH-SD, Pelco-P/D (Auto Recognition)
AI Analytics
Auto Tracking: Supported
IVS Functions:
- Tripwire
- Intrusion Detection
- Abandoned Object Detection
- Missing Object Detection
- Face Detection
- Heat Map
Video
Compression: H.265+, H.265, H.264+, H.264, MJPEG
Streaming Capability: 3 Streams
Resolution Support:
- 4K (3840 × 2160)
- 1080P
- 1.3MP
- 720P
- D1
- CIF
Frame Rate:
- Main Stream: Up to 25/30fps
- Sub Stream 1: Up to 25/30fps
- Sub Stream 2: Up to 25/30fps
Bit Rate Control: CBR / VBR
Bit Rate:
- H.265/H.264: 256Kbps ~ 8192Kbps
- MJPEG: 56Kbps ~ 20480Kbps
Day/Night Mode: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR
White Balance: Auto, ATW, Indoor, Outdoor, Manual
Gain Control: Auto / Manual
Noise Reduction: Ultra DNR (2D / 3D)
Motion Detection: Supported
Region of Interest: Supported
Electronic Image Stabilization (EIS): Supported
Defog: Supported
Digital Zoom: 16×
Image Flip: 180°
Privacy Masking: Up to 24 areas
Audio
Compression:
G.711a, G.711mu, PCM, G.726, AAC, G722.1, G.729, MPEG2-Layer2
Audio I/O: 1 / 1
Network & Storage
Ethernet: RJ-45 (10Base-T / 100Base-TX)
Protocols Supported:
IPv4, IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Interoperability: ONVIF, PSIA, CGI
Streaming Method: Unicast / Multicast
Max User Access: 20 Users
Edge Storage:
- NAS
- Local PC Instant Recording
- Micro SD Card up to 128GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: Smart PSS, DSS
Mobile Support: iOS, Android
Interface
Video Interface: 1 × BNC (1.0V[p-p], 75Ω)
RS485: 1
Audio I/O: 1 / 1
Alarm I/O: 7 / 2
Power
Power Supply: AC24V / 3A (±25%), Hi-PoE
Power Consumption: 24W, 38W (IR On)
Build & Environmental
Operating Conditions:
-40°C ~ 70°C (-40°F ~ +158°F)
Less than 95% RH
Ingress Protection: IP67
Casing Material: Metal
Dimensions: Φ240mm × 357mm
Net Weight: 6.75kg
Gross Weight: 10.5kg
Certifications
CE: EN55032 / EN55024 / EN50130-4
FCC: Part15 Subpart B, ANSI C63.4-2014
Compatible Mounting Accessories
- PFB303W Wall Mount
- PFA111 Mount Adapter
- PFA140 Power Box
- PFB300C Ceiling Mount
- PFA120 Junction Box
- PFA150 Pole Mount
- PFA151 Corner Mount
- PFB303S Parapet Mount
- AC24V/3A Power Adapter
