Description

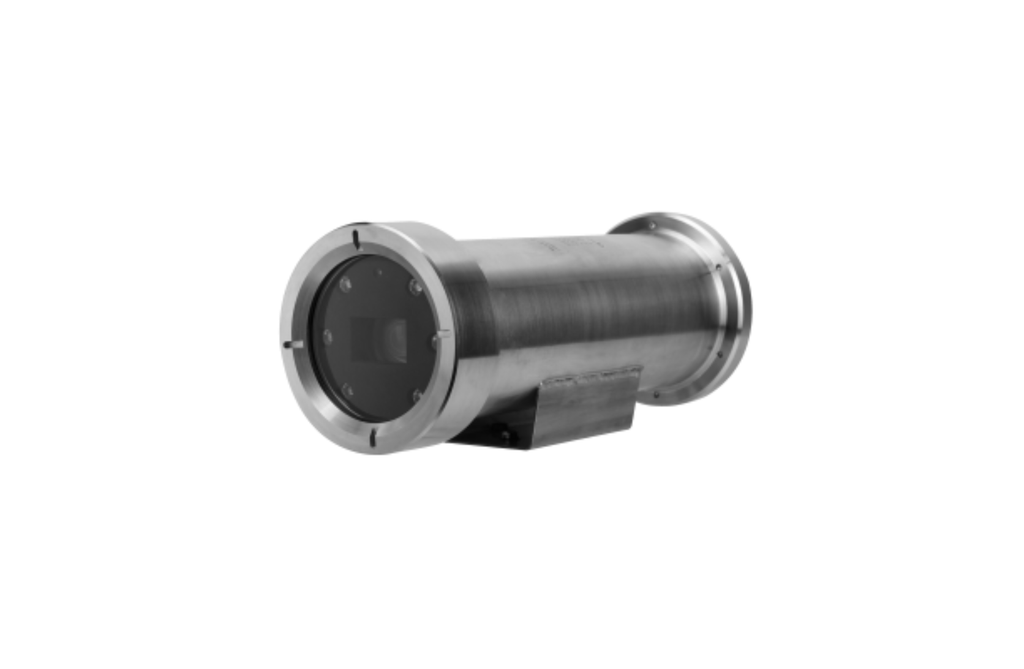

2MP 30x Explosion-proof IR Network Camera
Key Features
• 1/2.8" 2MP STARVIS™ CMOS sensor
• 30× optical zoom for long-distance monitoring
• Starlight technology for excellent low-light performance
• Explosion-proof 304 stainless steel housing
• H.265 video compression for efficient storage
• Up to 50/60fps at 1080P
• Supports IVS intelligent video analytics
• IR illumination up to 100 m
• ATEX and IECEx certified for hazardous environments
• IP68 weatherproof protection
Camera
• Image sensor: 1/2.8" STARVIS CMOS
• Effective pixels: 1920 × 1080 (2MP)
• RAM / ROM: 512 MB / 128 MB
• Scanning system: Progressive scan
• Electronic shutter: 1/1 s – 1/30,000 s
• Minimum illumination:
• Color: 0.005 Lux @ F1.6
• B/W: 0.0005 Lux @ F1.6
• 0 Lux with IR on
• S/N ratio: >55 dB
IR
• IR distance up to 100 m
• IR control: Auto / Manual
• IR LEDs: 6
Lens
• Focal length: 4.5 mm – 135 mm
• Max aperture: F1.6 – F4.4
• Angle of view: 67.8° – 2.4°
• Optical zoom: 30×
• Focus control: Auto / Manual
• Close focus distance: 100 mm – 1000 mm
DORI Distance
• Detect: 1862 m
• Observe: 744 m
• Recognize: 372 m
• Identify: 186 m
Intelligence
• IVS features supported:
• Tripwire
• Intrusion detection
• Abandoned / missing object detection
• Face detection
• Heat map
Video
• Compression: H.265+ / H.265 / H.264+ / H.264
• Triple stream supported
• Resolution support:
• 1080P (1920 × 1080)
• 1.3MP (1280 × 960)
• 720P (1280 × 720)
• D1
• CIF
• Frame rate:
• Main stream: up to 50/60 fps
• Sub stream 1: 25/30 fps
• Sub stream 2: 25/30 fps
• Bit rate control: CBR / VBR
• Bit rate: 448 Kbps – 8192 Kbps
Image Features
• Day/Night: Auto (ICR) / Color / B&W
• Backlight compensation: BLC / HLC / WDR (120 dB)
• White balance: Auto / ATW / Indoor / Outdoor / Manual
• Gain control: Auto / Manual
• Noise reduction: Ultra DNR (2D / 3D)
• Motion detection supported
• Region of interest supported
• Electronic image stabilization supported
• Defog supported
• Digital zoom 16×
• Image flip 180°
• Privacy masking up to 24 areas
Audio
• Audio compression: G.711a / G.711Mu / AAC / G.722 / G.726 / MPEG2-L2
Network
• Ethernet: RJ-45 (10/100 Base-T)
• Max user access: 20 users
• Supported protocols:
• IPv4 / IPv6
• HTTP / HTTPS
• TCP / UDP
• RTSP / RTP
• SMTP / FTP
• DHCP / DNS / DDNS
• SNMP / NTP
• QoS / Bonjour / 802.1x
• ONVIF support: Profile S & G
Storage
• Micro SD card support up to 256 GB
• NAS storage supported
• Local PC recording supported
Software
• Web viewer: IE, Chrome, Firefox, Safari
• Management software: Smart PSS, DSS, DMSS
• Mobile support: iOS, Android
Interface
• Video output: 1 × BNC (1.0 Vp-p, 75Ω)
• RS485: 1 port
• Audio I/O: 1 / 1
• Alarm I/O: 2 / 1
Electrical
• Power supply: AC 100–240 V / Hi-PoE
• Power consumption: 10 W (normal), 25 W (IR on)
Environmental
• Operating temperature: –40°C to +60°C
• Operating humidity: ≤95% RH
Protection
• Weather protection: IP68
• Explosion-proof housing: 304 stainless steel
Certifications
• CE
• FCC
• ATEX certified
• IECEx certified
Explosion-proof markings:
• ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db
• IECEx: Ex db IIC T6 Gb, Ex tb IIIC T80°C Db
General
• Casing material: 304 stainless steel
• Dimensions: Φ396.1 mm × 149.5 mm × 143 mm
• Net weight: 8.7 kg
• Gross weight: 10.4 kg
