Description

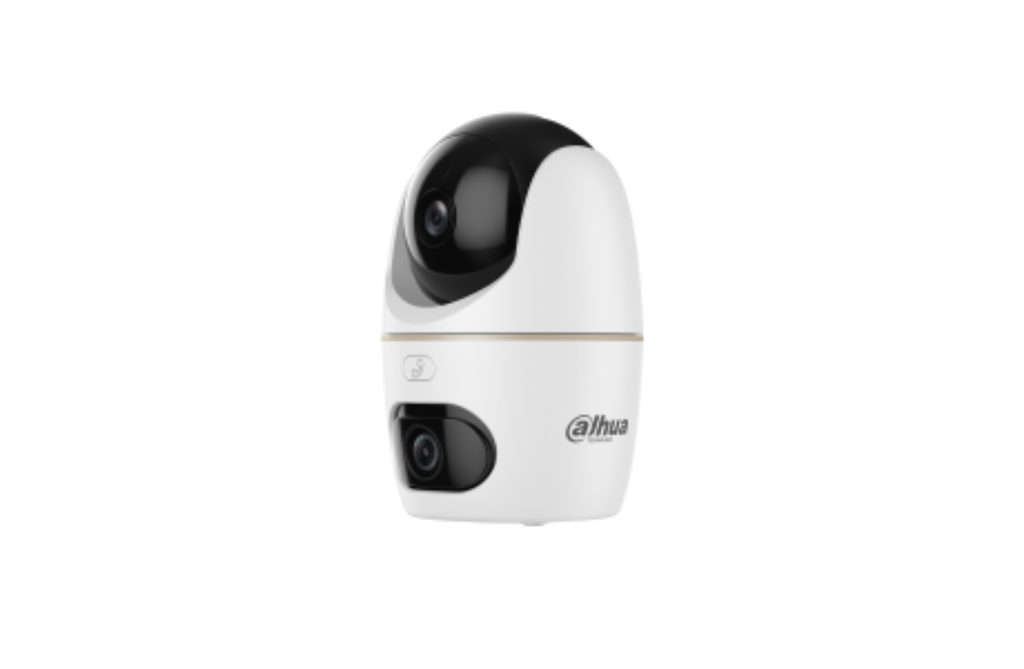

5+5MP Indoor Wi-Fi Dual-Lens Pan & Tilt Camera
Key Features
• Dual-lens design with fixed lens + PT lens for multi-angle monitoring
• 5MP + 5MP resolution for clear video
• Simultaneously monitor two areas with one camera
• AI Human Detection to reduce false alarms
• AI Pet Detection supported
• Auto tracking of moving targets with PT lens
• Sound and light alarm when intrusion is detected
• Push notifications to mobile app when events occur
• Ideal for homes, stores, offices, and restaurants
Camera (2.8 mm + 6 mm)
Fixed Lens
• Image sensor: 1/3" CMOS
• Maximum resolution: 2880 × 1620
• IR illumination distance up to 30 m
• Illuminators: 2 IR LEDs
• Angle adjustment: 0° to 15°
• Lens type: fixed focal
• Focal length: 2.8 mm
• Max aperture: F2.0
• Field of view:
• Horizontal 88°
• Vertical 48°
• Diagonal 104°
PT Lens
• Image sensor: 1/3" CMOS
• Maximum resolution: 2880 × 1620
• IR illumination distance up to 50 m
• Warm light distance up to 40 m
• Illuminators: 2 IR LEDs + 1 warm light
• Pan range: 0° to 349°
• Tilt range: –5° to 90°
• Lens type: fixed focal
• Focal length: 6 mm
• Max aperture: F1.6
• Field of view:
• Horizontal 49°
• Vertical 26°
• Diagonal 57°
Camera (3.6 mm + 3.6 mm option)
Fixed Lens
• Image sensor: 1/3" CMOS
• Maximum resolution: 2880 × 1620
• IR illumination distance up to 30 m
• Illuminators: 2 IR LEDs
• Angle adjustment: 0° to 15°
• Lens type: fixed focal
• Focal length: 3.6 mm
• Max aperture: F2.0
• Field of view:
• Horizontal 86°
• Vertical 46°
• Diagonal 104°
PT Lens
• Image sensor: 1/3" CMOS
• Maximum resolution: 2880 × 1620
• IR illumination distance up to 30 m
• Warm light distance up to 30 m
• Illuminators: 2 IR LEDs + 1 warm light
• Pan range: 0° to 349°
• Tilt range: –5° to 90°
• Lens type: fixed focal
• Focal length: 3.6 mm
• Max aperture: F2.0
• Field of view:
• Horizontal 86°
• Vertical 46°
• Diagonal 104°
Intelligence
• Human detection supported
• Pet detection supported
Video and Audio
• Video compression: H.265
• Main stream: 2880 × 1620 @15fps
• Sub stream: 640 × 360 @15fps
• Bit rate: 768 kbps – 4096 kbps
• Day/Night: Auto (ICR) / Color / B&W
• WDR: DWDR
• Motion detection supported
• Image rotation: 0° / 180°
• Built-in microphone
• Built-in speaker
• Audio compression: G.711a
Network
• Network port: RJ-45 (10/100 Base-T)
• Wi-Fi: 802.11 a/b/g/n/ac/ax
• Supports 2.4 GHz and 5 GHz Wi-Fi
• Bluetooth pairing supported
Storage
• MicroSD card support up to 256 GB
Software
• Management software: DMSS
• Mobile client: iOS and Android
Functions
• Abnormal sound alarm supported
• Privacy mode supported
General
• Power supply: 5V DC
• Power consumption:
• Basic: 2.5 W
• Maximum: 5.4 W (stream + IR + PT rotation)
• Operating temperature: –10°C to +45°C
• Operating humidity: ≤95% RH
• Casing material: Plastic
• Product dimensions: Φ80.9 mm × 125.7 mm
• Net weight: 233 g
• Certifications: CE
