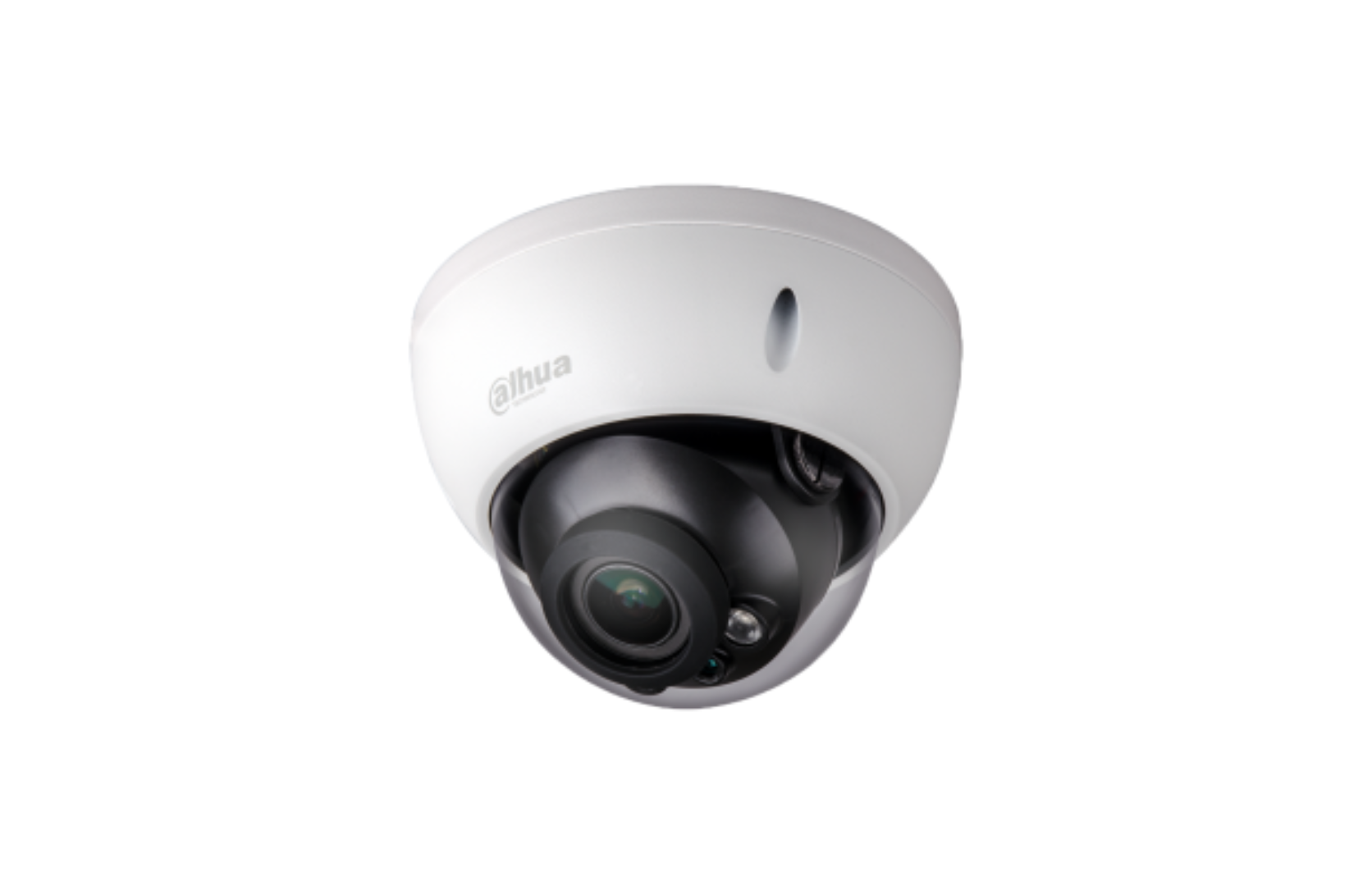

Dahua HAC-HDBW2802R-Z-DP 4K Starlight HDCVI IR Dome Camera

HAC-HDBW2802R-Z-DP 4K Starlight HDCVI IR Dome Camera

Key Features

• 8MP 4K resolution with a 1/1.8" CMOS image sensor.

• Outputs up to 3840 × 2160 resolution.

• Starlight low-light performance.

• 120 dB True WDR for strong backlight scenes.

• 3D noise reduction for cleaner images.

• 3.7 mm–11 mm motorised lens.

• Horizontal field of view from 112° to 46°.

• Built-in IR with up to 30 m illumination distance.

• Smart IR support.

• HD and SD video output switchable.

• Audio input interface.

• Supports AC 24 V or DC 12 V power input with ±30% tolerance.

• IP67 weather protection.

• IK10 vandal resistance.

• Datasheet

Camera

• Image Sensor: 1/1.8" CMOS

• Effective Pixels: 3840 × 2160, 8MP

• Scanning System: Progressive

• Signal-to-Noise Ratio: More than 65 dB

• IR Distance: Up to 30 m

• IR LEDs: 2

• IR Control: Auto or manual

Electronic Shutter Speed

• PAL: 1/4 s to 1/100,000 s

• NTSC: 1/3 s to 1/100,000 s

Minimum Illumination

• 0.005 lux at F1.5, 30 IRE

• 0 lux with IR on

Lens

• Lens Type: Motorised lens with fixed iris

• Mount Type: Board-in

• Focal Length: 3.7 mm–11 mm

• Maximum Aperture: F1.5

• Horizontal Angle of View: 112°–46°

• Focus Control: Auto or manual

• Close Focus Distance: 200 mm

Pan, Tilt and Rotation

• Pan: 0° to 355°

• Tilt: 0° to 75°

• Rotation: 0° to 355°

Video

• Resolution: 8MP, 3840 × 2160

• Video Output: 1-channel BNC HD video output or CVBS video output

• Output Switching: DIP switch

• Day/Night: Auto ICR or manual

• OSD Menu: Multi-language

• BLC Mode: BLC, HLC and WDR

• WDR: 120 dB

• Gain Control: AGC

• Noise Reduction: 2D/3D

• White Balance: Auto or manual

• Smart IR: Auto or manual

Frame Rate

• 15 fps at 4K

• 20 fps at 6MP

• 25/30 fps at 4MP

DORI Distance

Wide Angle

• Detect: 83 m

• Observe: 33 m

• Recognise: 17 m

• Identify: 8 m

Telephoto

• Detect: 190 m

• Observe: 76 m

• Recognise: 38 m

• Identify: 19 m

Interface

• Audio Interface: 1 input

Power

• Power Supply: AC 24 V ±30% or DC 12 V ±30%

• Power Consumption: Maximum 8.4 W

Environment

• Operating Temperature: –30°C to +60°C

• Storage Temperature: –30°C to +60°C

• Operating Humidity: Less than 90% RH

• Storage Humidity: Less than 90% RH

• Startup Note: Startup should be performed above –30°C

Protection

• Weather Protection: IP67

• Vandal Resistance: IK10

Construction

• Casing: Aluminium

• Dimensions: Φ122 × 88.9 mm

• Net Weight: 0.47 kg

• Gross Weight: 0.65 kg

Certifications

• CE: EN55032, EN55024 and EN50130-4

• FCC: CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014

• UL: UL60950-1 and CAN/CSA C22.2 No.60950-1
