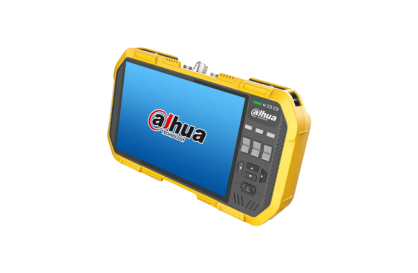

Dahua Integrated Mount Tester DH-PFM907-E

Integrated Mount Tester

• Supports HDCVI, AHD, HDTVI, and CVBS digital surveillance systems

• PoE or 12 VDC power supply

• Supports ONVIF protocol for IP address configuration

• Audio and RS-485 control

• Digital multimeter function

• TDR network cable testing

• Wi-Fi signal testing

• Datasheet



System

• Operation System: Linux

• Language: 10 languages including Chinese and English

• Operation Mode: Touchscreen

• Auto Standby/Power Off: Off / 5–60 min

• Keyboard Sound: On / Off

• Display Screen:

  • 7-inch 16.7M color TFT touchscreen

  • RGB interface LCD display: 1920 × 1200

  • Backlight brightness adjustable

• Buttons:

  • Keypad: 13 keys

  • Others: On–off button

• LED Indicators: 2

• Update: Supports online and local update

---

Structure & Environment

• Net Weight: 0.93 kg (2.05 lb)

• Product Dimensions: 235.0 mm × 135.0 mm × 45.0 mm (9.25" × 5.31" × 1.77") (L × W × H)

• Operating Temperature: –10 °C to +55 °C (14 °F to 131 °F)

• Operating Humidity: 30%–90% (RH)

---

IPC Test

• Camera Access: ONVIF and Dahua private protocol

• Resolution Supported:

  • 2 MP (1920 × 1080@25/30 fps)

  • 4 MP

  • 6 MP

  • 4K

• Initialization: Yes

• Image: Live view, snapshot, recording, zoom, H.264/H.265 decoding

• Function Control: Modify IPC resolution, IP address, account password, restore factory defaults

---

Analog Video Test

• Video Formats: HDCVI; HDTVI; AHD; CVBS (NTSC, PAL)

• Resolutions:

  • HDCVI: 720p@25/30/50/60 fps, 1080p@25/30 fps, 2560 × 1440@25/30 fps, 2880 × 1620@25/30 fps

  • HDTVI: 720p@25/30/50/60 fps, 1080p@25/30 fps, 2048×1536@18 fps, 2560 × 1440@25/30 fps

  • AHD: 720p@25/30 fps, 1080p@25/30 fps, 2048 × 1536@18/25/30 fps, 2560 × 1440@25/30 fps

  • CVBS: 720 × 576@25 fps, 720 × 480@30 fps

• Function Control: OSD menu; PTZ control

• Image: Live view, snapshot, recording, zoom

---

Video Signal Generator

• PAL and NTSC video test signals

• HDCVI, HDTVI, AHD video test signals (720p/1080p)

---

UTC (Up-The-Coax)

• Switches from CVBS mode to CVI/TVI/AHD mode

• Switches between HD formats (up to 1080p)

---

Wi-Fi

• Standard: IEEE 802.11b/g/n/ac

• Frequency Range:

  • 2.412–2.472 GHz

  • 5.18–5.24 GHz

  • 5.745–5.825 GHz

• Power Transmission:

  • CE EIRP: ≤15.98 dBm@2400–2483.5 MHz; ≤11.98 dBm@5.18–5.24 GHz; ≤9.86 dBm@5.745–5.825 GHz

  • FCC output power: same as CE

---

Digital Multimeter (DMM)

• DC Voltage: Limit 2/20/200/600 V; Reading ±19999; Min. resolution 0.1 mV; Accuracy ±0.1%+8

• AC Voltage: Limit 20/200/600 V; Reading ±1999; Min. resolution 1 V; Accuracy ±1.2%+3

• DC Current: Limit 20/200/2000 mA; Reading ±19999; Min. resolution 1 μA; Accuracy ±0.1%+8*

• AC Current: Limit 20/200/2000 mA; Reading ±1999; Min. resolution 1 μA; Accuracy ±1.2%+3

• Resistance Test: Limit 2 kΩ to 20 MΩ; Reading 0–19999; Min. resolution 0.1 Ω; Accuracy ±0.1%+8

• Capacitance Test: Limit 2 nF to 20 mF; Reading 0–1999; Min. resolution 1 pF; Accuracy ±4%+5

• Diode Voltage Drop: Limit 2 V; Reading 0–19999; Min. resolution 0.1 mV; Accuracy ±0.1%+20

• Continuity Test: Limit 2 kΩ; Reading 0–19999; Min. resolution 0.1 Ω; Accuracy ±0.1%+20

---

Others

• RS-485 Control:

  • Protocols: 30+ including Pelco-D/P, Samsung, Panasonic, Lilin, Yaan

  • Baud Rate: 150 bps to 19200 bps

• Wireless: Spectrum test, Wi-Fi test, signal monitoring

• Cable Test:

  • Tests network cable pair length, attenuation, delay deviation

  • Tests multiple cables; shows connection sequence and cable number on screen

• HDMI Test:

  • 1 × HDMI input (720p, 1080p)

  • 1 × HDMI output (1920 × 1080p)

• Audio Test: 1 × audio input, 1 × audio output

• Power Supply for Camera: 12 VDC 2A

• Network Test: IP address scanning and PING test

• Protocol Code Acquisition:

  • Built-in serial port tool for receiving and displaying RS485 protocol codes

  • Can send hexadecimal codes

• Optical Power Meter:

  • Detector Type: InGaAs

  • Calibrated Wavelengths: 1625, 1550, 1480, 1310, 1300, 850 nm

  • Power Test Range: –70 dBm to +10 dBm

  • Accuracy: <±3% dB (–10 dBm, 22 °C); <±5% dB (FS, 22 °C)

  • Resolution: Linear 0.1%, Logarithmic 0.01 dBm

  • Connector: FC/PC

---

Ports

• Power: 1 × charge port 12 VDC; 1 × power output 12 VDC 2A

• Audio: 1 × audio input port; 1 × audio output port

• USB: 1 × USB; 1 × Micro-USB

• Network: 2 × RJ45 10M/100M/1G

• HDMI: 1 × HDMI input; 1 × HDMI output

• RS-485: 1

• Optical Power Meter: 1

• Multimeter: 4

---

Power Supply

• Power Supply: 12 VDC 1A / PoE 48 V–0.5 A

• Battery: Two compartments for dedicated lithium battery packs (18.5 Wh each), combined working time about 10 hours (operates on single battery)

---

Certifications

• CE: EN 55032:2015, EN 55032:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61010-1:2010, EN 62321-1:2013

• FCC: FCC Part 15 Subpart B:2016
