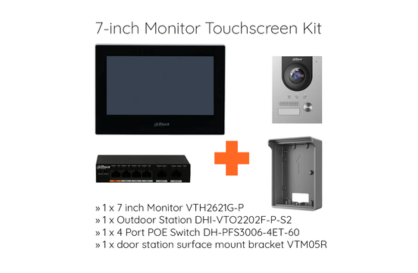

Dahua Intercom Kit Black 7-inch Touch Screen Monitor, Outdoor Station, 4 Port PoE Switch and Door Station Surface Mount Bracket KTP01L-AUS

IP Villa Outdoor Station & Indoor Monitor

IP Villa Door Station

• Anodized aluminum front panel

• CMOS low illumination 2MP HD colorful 140° camera

• Video intercom function

• Access control function supporting two locks

• Use the app to talk to visitors or unlock the door remotely on your phone

• Surface mounted and flush mounted installation options

• PoE support

• IK07 and IP65 rated

IP Indoor Monitor

• 7" TFT capacitive touch screen, 1024 × 600 resolution

• 6-channel alarm input and 1-channel alarm output

• Standard PoE

• Monitors outdoor station and IPC

• H.265 and H.264 video decoding

• High performance and cost-effective

Switch

• Port 1–4: 4 × RJ-45 10/100 Mbps PoE ports

• Port 5: 1 × RJ-45 10/100 Mbps uplink port

• Supports guide rail mounting



DHI-VTO2201F-P

System

• Main Processor: Embedded processor

• Operating System: Embedded Linux Operation System

• Button Type: Mechanical

• Interoperability: ONVIF; CGI

• Network Protocols: RTSP; RTMP; HTTP/HTTPS; DNS; UPnP; RTP; SIP; SSH; ONVIF; P2P

Basic

• Camera: 1/2.9" 2MP CMOS Low Illumination HD Colorful Camera

• Field of View: Horizontal 140°; Vertical 79.6°; Diagonal 159°

• Focal Length: 2.0 mm

• WDR: 120 dB

• Noise Reduction: 3D DNR

• Video Compression: H.265

• Video Resolution:

  • 50 Hz: Main stream (720P@25 fps), Sub stream (1080P@25 fps)

  • 60 Hz: Main stream (720P@30 fps), Sub stream (1080P@30 fps)

• Video Frame Rate: 25 fps

• Video Bit Rate: 256 Kbps to 8 Mbps

• Light Compensation: Auto IR

• Day/Night: Auto (ICR)

Audio

• Compression: G.711a; G.711u; PCM

• Input: 1 channel

• Output: Built-in speaker

• Mode: 2-way voice communication

• Enhancement: Echo suppression/digital noise reduction

• Bit Rate: 16 KHz, 16 Bit

Status Indicator Light

• Quantity: 3

Ports

• RS485: 1

• Alarm Output: 1

• Power Output: 1-ch 12 VDC 100mA

• Exit Button: 1

• Door Status Detection: 1

• Lock Control: 1

• Network Port: One RJ45 10M/100M

General

• Appearance Color: Silver

• Power Supply: DC 24V 1A; Standard PoE

• Power Adapter: Optional

• Installation: Flush/surface mount

• Certifications: CE; FCC; UL

• Product Dimensions: 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")

• Protection: IK07; IP65

• Operating Temperature: –30°C to +60°C (–22°F to 140°F)

• Operating Humidity: 10%–90% (RH, non-condensing)

• Operating Altitude: 0 m–3000 m

• Power Consumption: ≤ 8W

• Net Weight: 0.35 kg (0.77 lb)

• Gross Weight: 0.4 kg (0.88 lb)

---

DHI-VTH2621GW-P

System

• Main Processor: Embedded processor

• Operating System: Embedded Linux Operation System

• Network Protocols: RTSP; RTP; SIP; DNS; SSH

• ROM: 128 MB

• RAM: 128 MB

• CPU: Dual core 1.2 GHz

Basic

• Screen Type: Capacitive touchscreen

• Display Screen: 7-inch TFT

• Resolution: 1024 × 600

Audio

• Compression: G.711a; G.711u; PCM

• Input: 1

• Output: Built-in speaker

• Mode: 2-way voice communication

• Enhancement: Echo suppression

• Bit Rate: 16 KHz, 16 Bit

Function

• Communication Mode: Full digital

• Information Release: Receive and view text info from management center

• DND Mode: Do not disturb period can be set

• Number of Extensions: Villa – 9; Apartment – 4

Performance

• Casing: PC + ABS

Ports

• Alarm Input: 6

• Alarm Output: 1

• Power Output: 1 (12 V/200 mA)

• Door Bell: Yes (uses any alarm input port)

• Network: One 10/100 Mbps Ethernet

Alarm

• SOS: Yes

General

• Appearance Color: White

• Power Supply: 12 VDC 1A; Standard PoE (36–57 V, 0.35 A)

• Power Adapter: Optional

• Installation: Surface mount

• Certifications: CE; FCC

• Accessory: Bracket and alarm ribbon cable (included)

• Product Dimensions: 189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06")

• Operating Temperature: –10°C to +55°C (14°F to 131°F)

• Operating Humidity: 10%–95% (RH, non-condensing)

• Operating Altitude: Below 3,000 m (9,842.52 ft)

• Power Consumption: Standby ≤ 2W, Working ≤ 6W

• Net Weight: 0.34 kg (0.74 lb)

• Gross Weight: 0.58 kg (1.27 lb)

---

DH-PFS3005-4ET-36E

General

• Network Ports:

  • Port 1–4: 4 × RJ-45 10/100 M (PoE)

  • Port 5: 1 × RJ-45 10/100 M (uplink)

• Appearance Color: Black

• Power Supply: 100–240 VAC

• Power Adapter: Standard

• Certifications: CE; FCC; UL

• Product Dimensions: 170 mm × 100 mm × 35 mm (6.69" × 3.94" × 1.38")

• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

• Operating Humidity: 10%–95% (RH), non-condensing

• Operating Altitude: 0–3000 m (0–9842.52 ft)

• Net Weight: 0.45 kg (0.99 lb)
