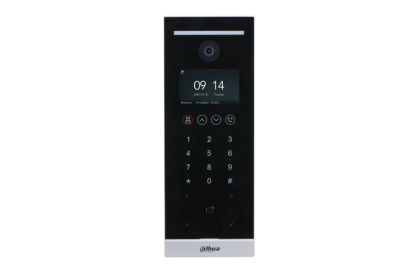

IP Apartment Door Station Specifications
-
4.3" IPS display with 800 × 480 resolution
-
2MP CMOS camera with true WDR
-
Touch button interface
-
Weatherproof rating: IP65
-
Operating temperature: –30°C to +60°C
-
Auto light illumination to reduce light pollution
-
Multiple unlock methods: Password, IC card, remote unlock
-
Supports up to 20,000 users and 10,000 cards
-
Full duplex audio communication
-
Supports management platform and voice call via app
-
SIP server compatible
-
Supports duress alarm, tamper alarm, and door sensor timeout alarm
- Datasheet
IP Apartment Door Station Specifications
-
Main Processor: Embedded processor
-
Operating System: Embedded Linux
-
Button Type: Touch
-
Network Protocols: SIP, P2P, IPv4, FTP, UPnP, DNS, DDNS, RTSP, RTP, TCP, UDP
-
ROM: 4GB
-
RAM: 1GB
Display & Camera
-
4.3" IPS screen (800 × 480 resolution)
-
1/2.7" 2MP CMOS sensor with low illumination
-
White and IR illuminators
-
Field of View: H: 113.79°, V: 61.5°, D: 134.45°
-
Focal Length: 2.8mm
-
Aperture: F2.0
-
WDR: 120dB
-
3D noise reduction
Video & Audio
-
Compression: H.264
-
Main stream: 720p@25/30fps
-
Sub stream: 1080p@25/30fps
-
Bit rate: 256 Kbps – 2048 Kbps
-
Light Compensation: Auto white light
-
Audio Compression: G.711u
-
Audio Input: 1
-
Audio Output: Built-in speaker
-
Audio Mode: Full duplex
-
Audio Enhancement: Echo suppression, noise reduction
-
Audio Bit Rate: 16 KHz, 16 Bit
Functionality
-
Communication Mode: Full digital
-
Unlock Modes: Card, remote, password
-
Card Type: IC card
-
Card Capacity: 10,000
-
Card Reading Distance: 1 cm – 5 cm
-
Motion Detection & Auto Snapshot: Supported
-
Leave Video/Text Messages: Supported
-
Web Configuration: Supported
-
Password Modes: User, public, duress
Interfaces & Ports
-
RS-485: 1
-
Wiegand: 1 input, 1 output
-
Electric Lock Control: 1 (normally open by default)
-
Alarm Input: 2
-
Alarm Output: 2
-
Power Output: 12V / 100mA
-
Exit Button: 1
-
Door Status Detection: 1
-
Network: 1 × RJ-45 10/100 Mbps self-adaptive
General Specifications
-
Casing Material: PC + ABS
-
Color: Silver
-
Power Supply: DC 12V/2A
-
Power Consumption: ≤5W (standby), ≤18W (working)
-
Installation: Surface mount or flush mount
-
Certifications: CE, FCC
-
Accessories: Optional
-
Dimensions: 389 × 145 × 41.9 mm (15.31" × 5.71" × 1.65")
-
Protection Grade: IP65 (with silicone sealant)
-
Operating Temperature: –30°C to +60°C (–22°F to +140°F)
-
Operating Humidity: 10%–90% RH (non-condensing)
-
Operating Altitude: 86 kPa – 106 kPa
-
Net Weight: 1.4 kg (3.09 lb)
-
Gross Weight: 1.68 kg (3.70 lb)
